Recycling The Clippings; Bagging The Clippings - Toro Recyler 20333 Operator's Manual

5. Stop the engine and wait for all moving parts to stop.
Not Using the Grass Bag
1. Move the machine onto a paved surface in a non-windy
area.
2. Set all 4 wheels to the 83 mm (3-1/4 inch) cut setting.
3. Take a half sheet of newspaper and crumple it into a
ball small enough to go under the machine housing
(about 76 mm or 3 inches in diameter).
4. Place the newspaper ball about 13 cm (5 inches) in
front of the machine.
5. Start the engine.
6. Engage the blade.
7. Release the blade-control bar.
8. Immediately push the machine over the newspaper ball.
9. Stop the engine and wait for all moving parts to stop.
10. Go to the front of the machine and check the
newspaper ball.
Note: If the newspaper ball did not go under the
machine, repeat steps
11. If the newspaper is unravelled or shredded, the blade
did not stop properly, which could result in an unsafe
operating condition. Contact an Authorized Service
Dealer.

Recycling the Clippings

Your machine comes from the factory ready to recycle the
grass and leaf clippings back into the lawn.
If the grass bag is on the machine and the bag-on-demand
lever is in the Bagging position, move the lever to the
Recycling position before recycling the clippings; refer to
Operating the Bag-on-Demand Lever (page
side-discharge chute is on the machine, remove it before
recycling the clippings; refer to
Chute (page 13).
4 through 10.
12). If the
Removing the Side-Discharge

Bagging the Clippings

Use the grass bag when you want to collect grass and leaf
clippings from the lawn.
If the side-discharge chute is on the machine, remove it before
bagging the clippings; refer to
Chute (page 13). If the bag-on-demand lever is in the
Recycling position, move it to the Bagging position; refer to
Operating the Bag-on-Demand Lever (page
Installing the Grass Bag

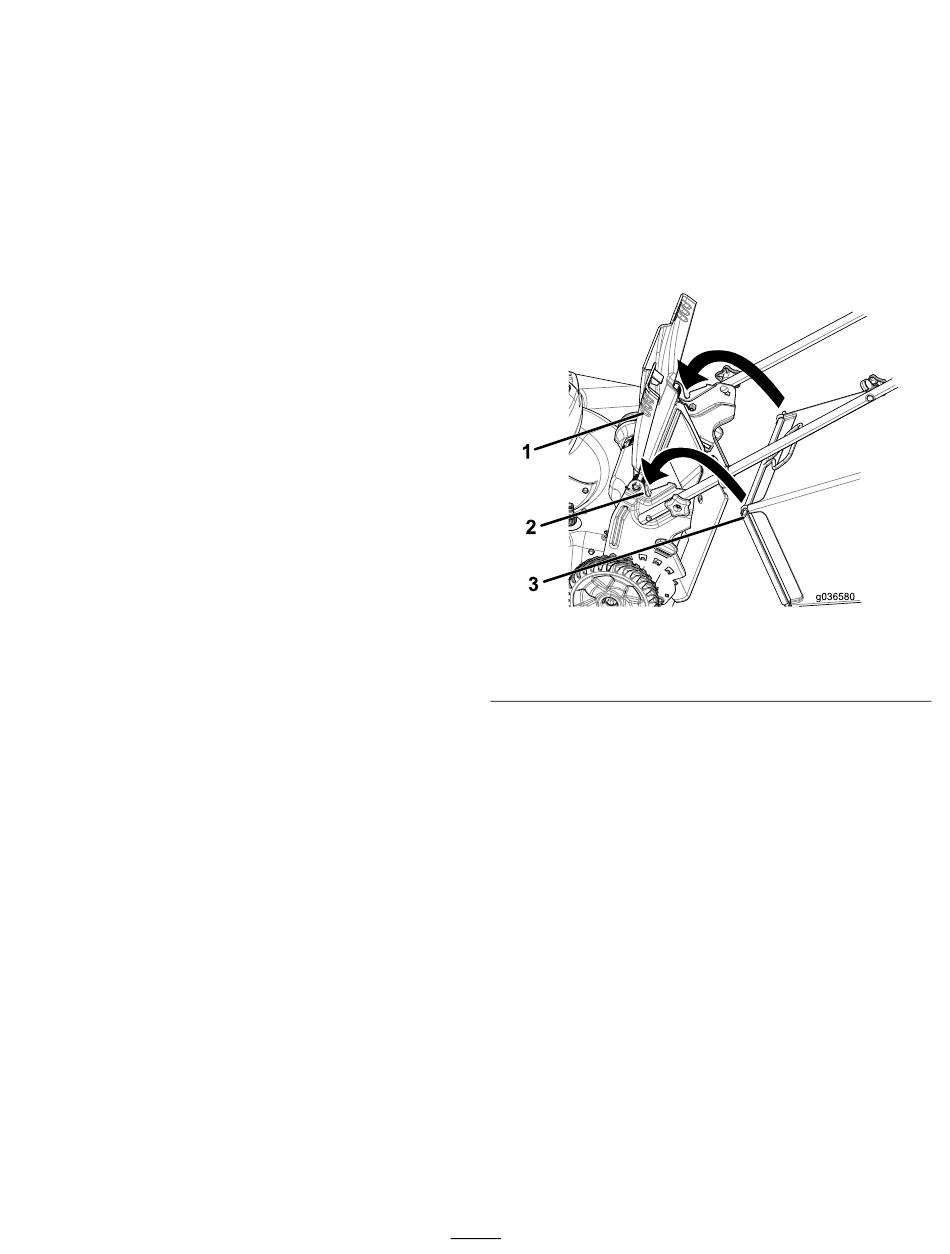

1. Raise and hold up the rear deflector
1. Rear deflector
2. Notches
2. Install the grass bag, ensuring that the pins on the bag
rest in the notches on the handle
3. Lower the rear deflector.
Removing the Grass Bag
To remove the bag, reverse the steps in
Bag (page 12).
Operating the Bag-on-Demand Lever
The bag-on-demand feature allows you to either collect or
recycle grass and leaf clippings while the grass bag is attached
to the machine.
•
For bagging the grass and leaf clippings, press the button
on the bag-on-demand lever and move the lever forward
until the button on the lever pops up
12
Removing the Side-Discharge
12).
(Figure
Figure 24
3. Grass-bag pin (2)
(Figure 24).
Installing the Grass
(Figure 25).
24).
