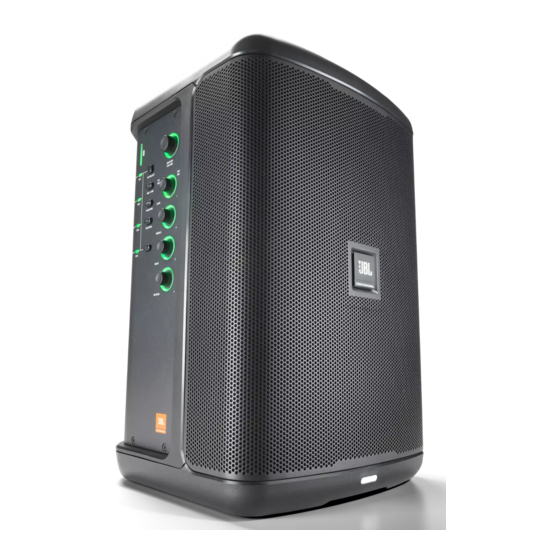

EON ONE Compact
BA TTE RY -POWERED PORT ABL E PA SYSTEM WI TH
BLU ETOOTH
AUDIO ST REAMIN G AND CO NTROL
®
USER'S GUIDE
FCC ID: APIEONONECOM

Advertisement

Table of Contents
loading

Summary of Contents for Harman JBL EON ONE Compact

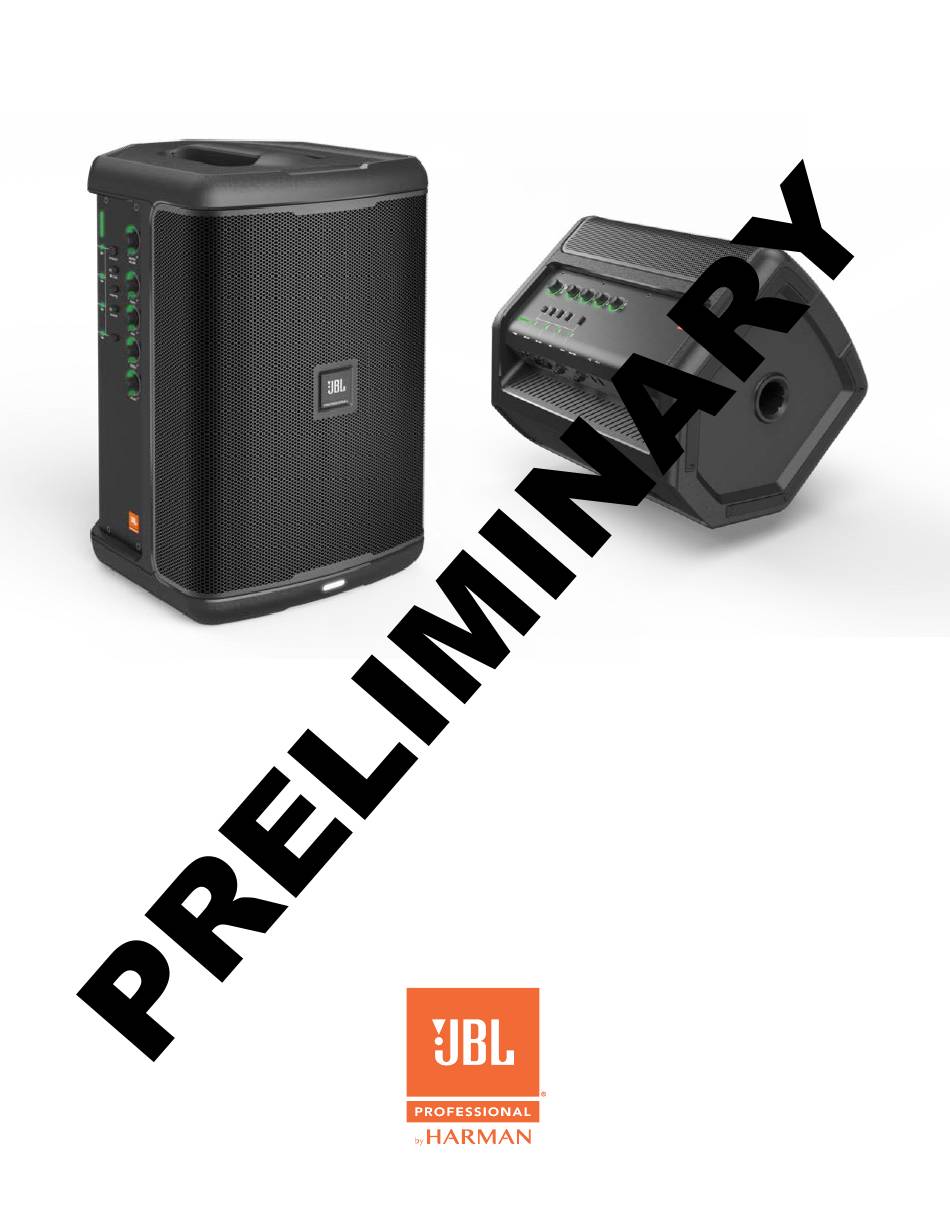

  • Page 1 EON ONE Compact BA TTE RY -POWERED PORT ABL E PA SYSTEM WI TH BLU ETOOTH AUDIO ST REAMIN G AND CO NTROL ® USER’S GUIDE FCC ID: APIEONONECOM...
  • Page 3: Table Of Contents

    Contents Section 1: Important Safety Instructions ���������������������������������������������������������� 2 Care & Cleaning ��������������������������������������������������������������������������������������������������������������������������������������������������3 Section 2: Precautions ���������������������������������������������������������������������������������������� 4 Section 3: EON ONE Compact System Declaration of Conformity ���������������� 5 Section 4: Introduction to the EON ONE Compact System ����������������������������� 6 Getting Started ����������������������������������������������������������������������������������������������������������������������������������������������������6 PA Basics ������������������������������������������������������������������������������������������������������������������������������������������������������������7 Getting Acquainted with the EON ONE Compact Powered Mixer ����������������������������������������������������������������������...
  • Page 4: Section 1: Important Safety Instructions

    Section 1: Important Safety Instructions 1� Read these instructions� 2� Keep these instructions� 3� Heed all warnings� 4� Follow all instructions� 5� Do not use this apparatus near water� 6� Clean only with dry cloth� 7� Do not block any ventilation openings� Install in accordance with the manufacturer’s instructions� 8�...
  • Page 5: Care & Cleaning

    CARE & CLEANING EON ONE Compact systems may be cleaned with a dry cloth� Do not get moisture into any of the openings in the system� Ensure that the system is unplugged from the AC outlet before cleaning� THIS APPARATUS CONTAINS POTENTIALLY LETHAL VOLTAGES� TO PREVENT ELECTRIC SHOCK OR HAZARD, DO NOT REMOVE CHASSIS, MIXER MODULE, OR AC INPUT COVERS�...
  • Page 6: Section 2: Precautions

    Section 2: Precautions The EON ONE Compact system covered by this manual is not intended for use in high moisture environments� Moisture can damage the speaker cone and surround and cause corrosion of electrical contacts and metal parts� Avoid exposing the speakers to direct moisture�...
  • Page 7: Section 3: Eon One Compact System Declaration Of Conformity

    Section 3: EON ONE Compact System Declaration of Conformity This equipment complies with the EMC directive 89/336/EEC Modified by 92/31/EEC 93/68/EEC 98/13/EEC and LVD 73/23/EEC modified by 93/68/EEC This product meets safety standards: EN60065:2002 UL6500 7th Edition: 2003 UL 60065 - STANDARD FOR AUDIO, VIDEO AND SIMILAR ELECTRONIC APPARATUS - SAFETY EQUIREMENTS - Edition 7 - Revision Date 2007/12/11 CSA C22�2 NO 60065-03 - AUDIO, VIDEO AND SIMILAR ELECTRONIC APPARATUS –...
  • Page 8: Section 4: Introduction To The Eon One Compact System

    Section 4: Introduction to the EON ONE Compact System Thank you for choosing the JBL EON ONE Compact� The EON ONE Compact is a battery-powered, ultra- portable, all-in-one PA system featuring rechargeable battery power, Bluetooth audio streaming and control, and ®...
  • Page 9: Pa Basics

    PA BASICS A mixing board is actually a very simple device that takes the audio input signals (from the input channels) and "mixes" them to the outputs� The mixing board controls will typically enable the user to blend the input channel signal levels, affect their tone, and adjust each channel's reverb level.
  • Page 10: Audio Inputs

    MIX MODE, adjusts the CH3 gain PASS THRU output for connecting additional JBL EON ONE Compact In CH MODE, adjusts the speakers selected channel's reverb amount; in MIX MODE, adjusts the CH4 gain 3�5mm HEADPHONE output...
  • Page 11: Phantom Power Disclaimer

    PHANTOM POWER DISCLAIMER When using condenser microphones, phantom power is required to be present at the contacts of the microphone (XLR) connector for the microphone to operate correctly. When phantom power is enabled in the EON ONE Compact, it is applied to the CH1 XLR MIC input only� WARNING! To prevent damage to the EON ONE Compact or external devices when using a condenser microphone, always turn down all EON ONE Compact MASTER VOLUME controls and ensure the PHANTOM button is off before connecting the microphone�...
  • Page 12: Bluetooth Input

    BLUETOOTH INPUT The EON ONE Compact comes equipped with the ability to stream Bluetooth audio for music playback or backing tracks. To connect a Bluetooth device, first enable Bluetooth on your device. Press the BLUETOOTH button on the EON ONE Compact� Select "EON ONE Compact" from the source device to complete the pairing� The level of the Bluetooth device relative to other source channels can be controlled from the Bluetooth device�...
  • Page 13: Audio Outputs

    AUDIO OUTPUTS The EON ONE Compact provides a 1/4" PASS THRU output for connecting to additional EON ONE Compact loudspeakers. A 3.5mm (1/8") HEADPHONE output is also provided for additional monitoring options. PASS THRU output can be connected to the line input of another JBL EON ONE Compact to expand the system for...
  • Page 14: Replacing The Battery

    REPLACING THE BATTERY 1� Unscrew the single screw on the battery compartment cover� 2� Pull the battery compartment cover off� 3� Remove the battery� 4� Replace with the same battery only� 5� Place the battery compartment over the battery and reapply screw�...
  • Page 15: Section 6: Accessories

    Section 6: Accessories BACKPACK The optional backpack is available for effortless transport of an EON ONE Compact system� MOUNTING POLE 'place JBL pole model here' is available for securely mounting an EON ONE Compact system� Visit jblpro�com or contact your local JBL Pro dealer for more information on JBL accessories�...
  • Page 16: Section 7: System Specifications

    Section 7: System Specifications System System Type: Battery-operated portable line array with powered mixer Maximum SPL Output: 118 dB peak system output (pink noise) Frequency Range (-10dB): 37�5Hz – 18�5kHz Frequency Response (-3dB): 45Hz – 18kHz AC input : 100 – 120 VAC, 50/60Hz; 220 – 240 VAC, 50/60Hz USB Power Port: Supplies 500mA Battery...
  • Page 17: Section 8: Cables & Connectors

    Section 8: Cables & Connectors The standard cable for interconnection of microphone and line- XLR/F to XLR/M microphone cable level signals in professional audio systems� Example: Microphone to mixer� For connecting balanced devices with 1/4" phone; may be TRS (balanced) 1/4" phone to XLR/M cable used interchangeably�...
  • Page 18: Section 9: Contact Information

    Section 9: Contact Information Mailing Address: JBL Professional 8500 Balboa Blvd� Northridge, CA 91329 Shipping Address: JBL Professional 8500 Balboa Blvd�, Dock 15 Northridge, CA 91329 (Do not return product to this address without first obtaining prior authorization from JBL) Customer Service: Monday through Friday 8:00am - 5:00pm...
  • Page 19: Section 10: Warranty Information

    Section 10: Warranty Information The JBL EON ONE Compact system is warranted for three years from the date of original purchase� Who Is Protected By This Warranty? Your JBL Warranty protects the original owner and all subsequent owners so long as: A.) Your JBL product has been purchased in the Continental United States, Hawaii or Alaska�...
  • Page 20 Rev A The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc� and any use of such marks by HARMAN International Industries, Incorporated is under license� Google Play is a trademark of Google LLC� iTunes is a trademark of Apple Inc�, registered in the U�S� and other countries�...
