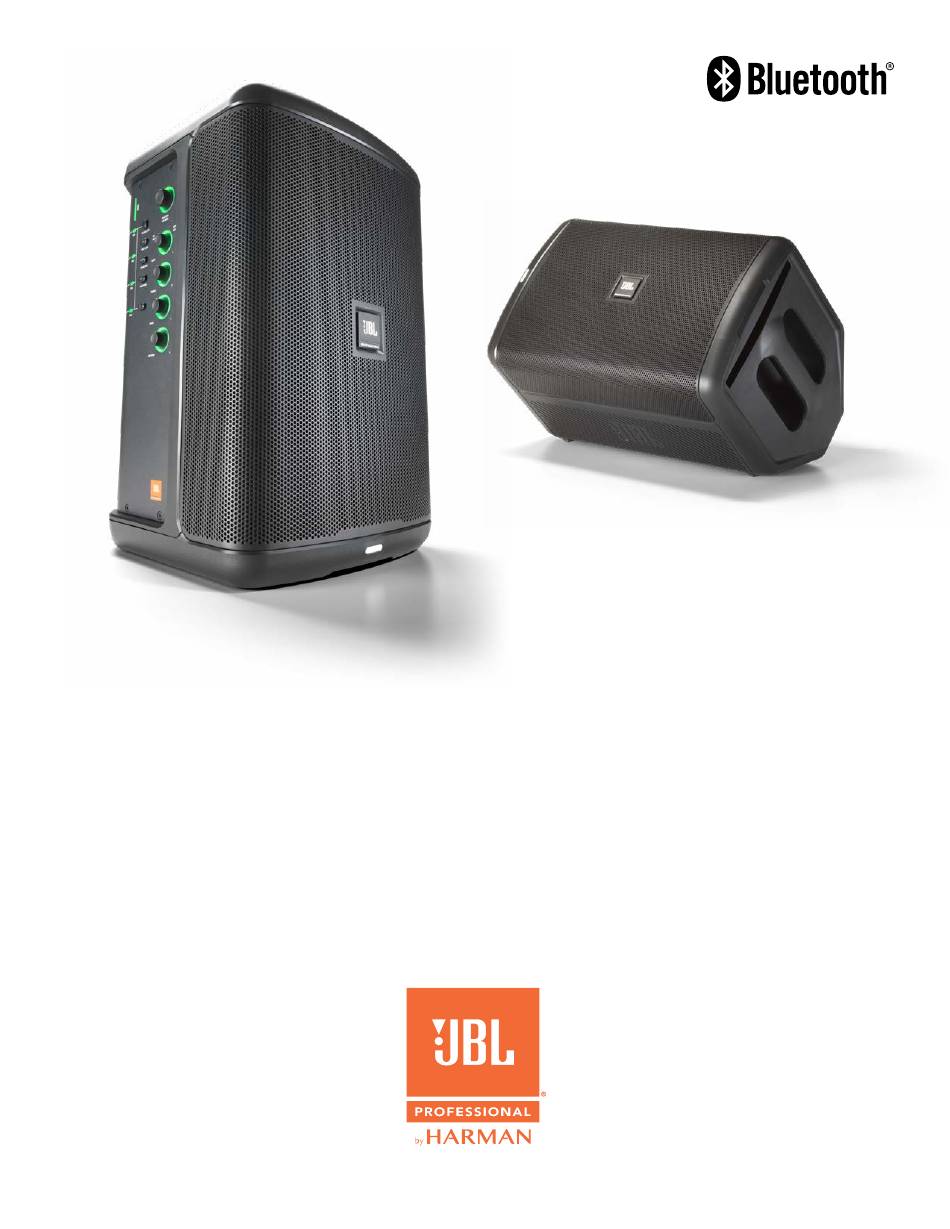

- Page 1 EON ONE Compact ALL -IN- ONE PORT ABL E PA W IT H PROFESS IO NAL -GRADE MI XER USER’S GUIDE...
-
Page 2: Table Of Contents
Contents Section 1: Important Safety Instructions ���������������������������������������������������������� 2 Section 2: Precautions ���������������������������������������������������������������������������������������� 4 Section 3: EON ONE Compact System Declaration of Conformity ���������������� 5 Section 4: Introduction to the EON ONE Compact System ����������������������������� 6 Getting Started ����������������������������������������������������������������������������������������������������������������������������������������������������6 PA Basics ������������������������������������������������������������������������������������������������������������������������������������������������������������7 Getting Acquainted with the EON ONE Compact Powered Mixer ����������������������������������������������������������������������... -
Page 3: Section 1: Important Safety Instructions
Section 1: Important Safety Instructions The EON ONE Compact system covered by this manual is not intended for use in high moisture environments. Moisture can damage the speaker cone and surround and cause corrosion of electrical contacts and metal parts. Avoid exposing the speakers to direct moisture. degraded by long-term exposure to intense ultra-violet (UV) light. - Page 4 IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. e the DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions. produce heat.
-
Page 5: Section 2: Precautions
Section 2: Precautions DO NOT EXPOSE BATTERIES OR BATTERY PACK TO EXCESSIVE HEAT, SUCH AS THAT FROM OPEN FLAMES, DIRECT SUNSHINE, ETC. DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED, REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 6: Section 3: Eon One Compact System Declaration Of Conformity
Section 3: EON ONE Compact System Declaration of Conformity This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS) d'Innovation, Sciences et Développement économique Canada. -
Page 7: Section 4: Introduction To The Eon One Compact System
Section 4: Introduction to the EON ONE Compact System Thank you for choosing the JBL EON ONE Compact� The EON ONE Compact is a battery-powered, ultra- portable, all-in-one PA system featuring rechargeable battery power, Bluetooth audio streaming and control, and ®... -
Page 8: Pa Basics
PA BASICS A mixing board is actually a very simple device that takes the audio input signals (from the input channels) and "mixes" them to the outputs� The mixing board controls will typically enable the user to blend the input channel signal levels, affect their tone, and adjust each channel's reverb level�... -
Page 9: Audio Inputs
AUDIO INPUTS The EON ONE Compact has four inputs: two mono MIC/LINE inputs on XLR combo jacks, one dedicated 1/4" HI-Z input for direct connection of an instrument (such as an acoustic guitar), and one 3�5mm AUX input, which is summed with the Bluetooth audio streaming input�... -
Page 10: Phantom Power Disclaimer
PHANTOM POWER DISCLAIMER When using condenser microphones, phantom power is required to be present at the contacts of the microphone (XLR) connector for the microphone to operate correctly� When phantom power is enabled in the EON ONE Compact, it is applied to the CH1 XLR MIC input only� WARNING! To prevent damage to the EON ONE Compact or external devices when using a condenser microphone, always turn down all EON ONE Compact MASTER VOLUME controls and ensure the PHANTOM button is off before connecting the microphone�... -
Page 11: Bluetooth Input
BLUETOOTH INPUT The EON ONE Compact comes equipped with the ability to stream Bluetooth audio for music playback or backing tracks. To connect a Bluetooth device, first enable Bluetooth on your device. Press the BLUETOOTH button on the EON ONE Compact� Select "EON ONE Compact" from the source device to complete the pairing� The level of the Bluetooth device relative to other source channels can be controlled from the Bluetooth device�... -
Page 12: Audio Outputs
AUDIO OUTPUTS The EON ONE Compact provides a 1/4" PASS THRU output for connecting to additional EON ONE Compact loudspeakers� A 3�5mm (1/8") HEADPHONE output is also provided for additional monitoring options� PASS THRU output can be connected to the line input of another JBL EON ONE Compact to expand the system for... -
Page 13: Replacing The Battery
REPLACING THE BATTERY 1� Unscrew the single screw on the battery compartment cover� 2� Pull the battery compartment cover off� 3� Remove the battery� 4� Replace with the same battery only� 5� Place the battery compartment over the battery and reapply screw� Battery... -
Page 14: Section 5: Downloading, Installing, & Using The App
Section 5: Downloading, Installing, & Using the App DOWNLOADING & INSTALLING THE APP 1� Visit www�jblpro�com/eon-one-compact, the iTunes store, or the Google Play store to download the app� 2� Follow the on-screen instructions to install the app� USING BLUETOOTH BROADCAST Follow these steps to connect a Bluetooth device for control, and to broadcast Bluetooth audio to up to four EON ONE Compact speakers�... - Page 15 3� When the prompt appears, select BT BROADCAST� 4� Check the speaker(s) you wish to connect to�...
- Page 16 5� Select the desired Listening Mode for each speaker to match the application� 6� A prompt will appear to indicate Bluetooth Broadcast has successfully connected� Click OK�...
- Page 17 7� Select HOST for the speaker selected in step 2� The REMOTE option will automatically be selected for any remaining speakers� 8� A prompt will appear to indicate all speakers have been successfully associated� Click OK� 9� With the master gain set at a low level, start music playback from the connected Bluetooth...
-
Page 18: Home Screen
HOME SCREEN Settings Menu: Locate: Flashes all Accesses Bluetooth lights on the speaker Broadcast and Demo for easy identification Mode Mixer: Accesses the input mixer of the speaker Link/Linked: Links and unlinks the speaker for bluetooth control Master Fader: Controls Battery Level Indicator the master volume of the system... -
Page 19: Input Mixer Screen
INPUT MIXER SCREEN Mic/Line Switch Navigation Menu Bluetooth/Aux Input Selection Phantom Power On/Off Ducking On/Off Access Channel EQ Channel Gain Fader Channel Sensor for Ducking Threshold: When ON, this channel will trigger music ducking; when OFF, this channel will not trigger music ducking Global Effects Bypass... -
Page 20: Fx Screen
FX SCREEN FX Sends: Dictates the amount of signal sent to the effects engine FX Name and On/Off Switch FX Bypass FX Controls: When a section is highlighted blue, it is the active section (sends will only reflect for blue highlighted sections) FX Return Level: Dictates the amount of effects that are sent back to the master fader... -
Page 21: Section 6: Accessories
Section 6: Accessories BACKPACK The optional backpack is available for effortless transport of an EON ONE Compact system� MOUNTING STAND The JBLTRIPOD-GA tripod stand is available for securely mounting an EON ONE Compact system� Visit jblpro�com or contact your local JBL Pro dealer for more information on JBL accessories�... -
Page 22: Section 7: System Specifications
Section 7: System Specifications System System Type: Self-powered, two-way, 8” woofer, 1” tweeter Sensitivity (SPL): 112 dB Frequency Response: 37�5 Hz – 20 kHz Bluetooth: Audio streaming and full control USB: External charging Amplifier Power Rating: 120W (100W to 8” driver, 20W to 1” driver) Mixer Mixer: 4 channels... -
Page 23: Section 8: Cables & Connectors
Section 8: Cables & Connectors The standard cable for interconnection of microphone and line- XLR/F to XLR/M microphone cable level signals in professional audio systems� Example: Microphone to mixer� For connecting balanced devices with 1/4" phone; may be TRS (balanced) 1/4" phone to XLR/M cable used interchangeably�... -
Page 24: Section 9: Contact Information
Section 9: Contact Information Mailing Address: JBL Professional 8500 Balboa Blvd� Northridge, CA 91329 Shipping Address: JBL Professional 8500 Balboa Blvd�, Dock 15 Northridge, CA 91329 (Do not return product to this address without first obtaining prior authorization from JBL) Customer Service: Monday through Friday 8:00am - 5:00pm... -
Page 25: Section 10: Warranty Information
Section 10: Warranty Information The JBL EON ONE Compact system is warranted for three years from the date of original purchase� Who Is Protected By This Warranty? Your JBL Warranty protects the original owner and all subsequent owners so long as: A�) Your JBL product has been purchased in the Continental United States, Hawaii or Alaska�... - Page 26 Issued: 09/2019 The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc� and any use of such marks by HARMAN International Industries, Incorporated is under license� Google Play is a trademark of Google LLC� iTunes is a trademark of Apple Inc�, registered in the U�S� and other countries�...
