v1.0

REQUIREMENTS:

A PRX800 SERIES SPEAKER

A TABLET WITH THE PRX CONNECT APP INSTALLED

AND A WI-FI ROUTER

NOTE: (WI-FI ROUTER NOT REQUIRED FOR SINGLE BOX CONNECTION)

STEP 1

"A FRESH START"

PERFORM A MASTER RESET TO ENSURE ALL CONNECTIONS ARE CLEARED

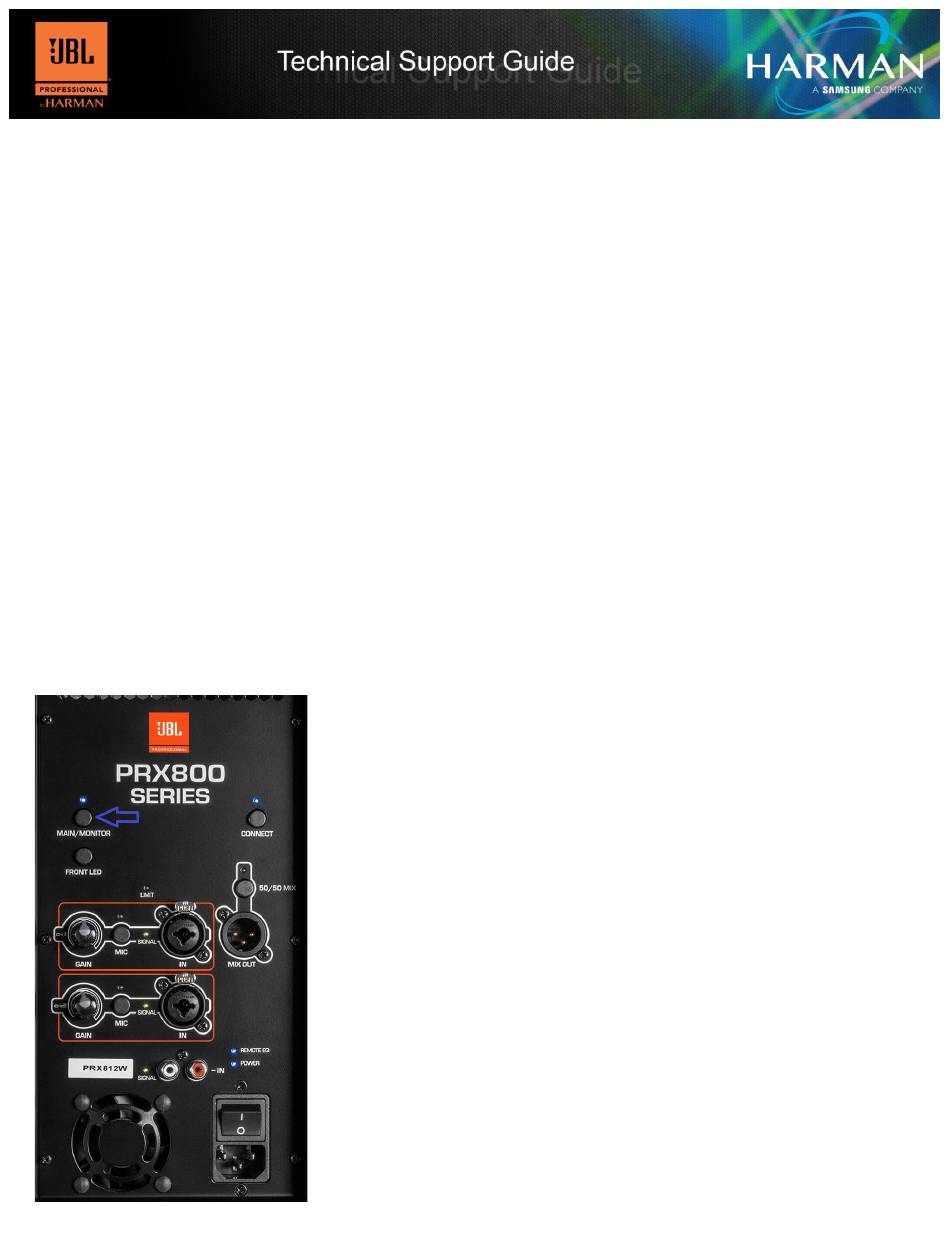

WITH THE UNIT POWERED OFF, PRESS AND HOLD THE UPPER LEFT BUTTON

WHILE PRESSING AND HOLDING, POWER THE UNIT ON

CONTINUE TO HOLD FOR 5 SECONDS

PRX800 APP TUTORIAL

RESET IS NOW COMPLETE

1 of 7

25-Nov-

Page 1 v1.0 25-Nov- PRX800 APP TUTORIAL REQUIREMENTS: A PRX800 SERIES SPEAKER A TABLET WITH THE PRX CONNECT APP INSTALLED AND A WI-FI ROUTER NOTE: (WI-FI ROUTER NOT REQUIRED FOR SINGLE BOX CONNECTION) STEP 1 “A FRESH START” PERFORM A MASTER RESET TO ENSURE ALL CONNECTIONS ARE CLEARED WITH THE UNIT POWERED OFF, PRESS AND HOLD THE UPPER LEFT BUTTON WHILE PRESSING AND HOLDING, POWER THE UNIT ON CONTINUE TO HOLD FOR 5 SECONDS...
Page 2 STEP 2 OPEN THE APP AND FOLLOW THE ON SCREEN INSTRUCTIONS: • SET UP A NEW SHOW • NAME IT (OPTIONAL) • SELECT NEXT • NEXT, SET THE SPEAKER FOR WI-FI CONNECTION STEP 3 • PRESS AND HOLD THE CONNECT BUTTON UNTIL THE LED FLASHES, INDICATING CONNECTION READY 2 of 7...
Page 3: Final Connection
• YOU MUST NOW GO TO YOUR DEVICE’S WI-FI SETTINGS AND SELECT ANY NETWORK LABELED PRX800 XX.XX.XX • THE CONNECT LED SHOULD NOW FLASH RAPIDLY! INDICATING A CONNECTION BETWEEN THE DEVICE AND SPEAKER STEP 4 FINAL CONNECTION • PROVIDE SSID AND PASSWORD 3 of 7...
Page 4 • CLICK NEXT AND FOLLOW ON SCREEN PROMPTS • WHEN FINISHED THE SPEAKER SHOULD DISPLAY A SOLID BLUE CONNECT LIGHT STEP 5 • SPEAKERS WILL BECOME AVAILABLE “FOUND” AND ARE NOW READY TO BE ADDED THE SHOW TO ADD ADDITIONAL SPEAKERS: •...
Page 5 • REPEAT STEPS 1, 3, 4 & 5. • FOR SINGLE BOX CONNECTION • FOLLOW STEPS 1, 3 & 5 • NO ROUTER REQUIRED, NO SSID OR PASSWORD. 5 of 7...
