Connections
Connecting to Optional Equipment (Continued)

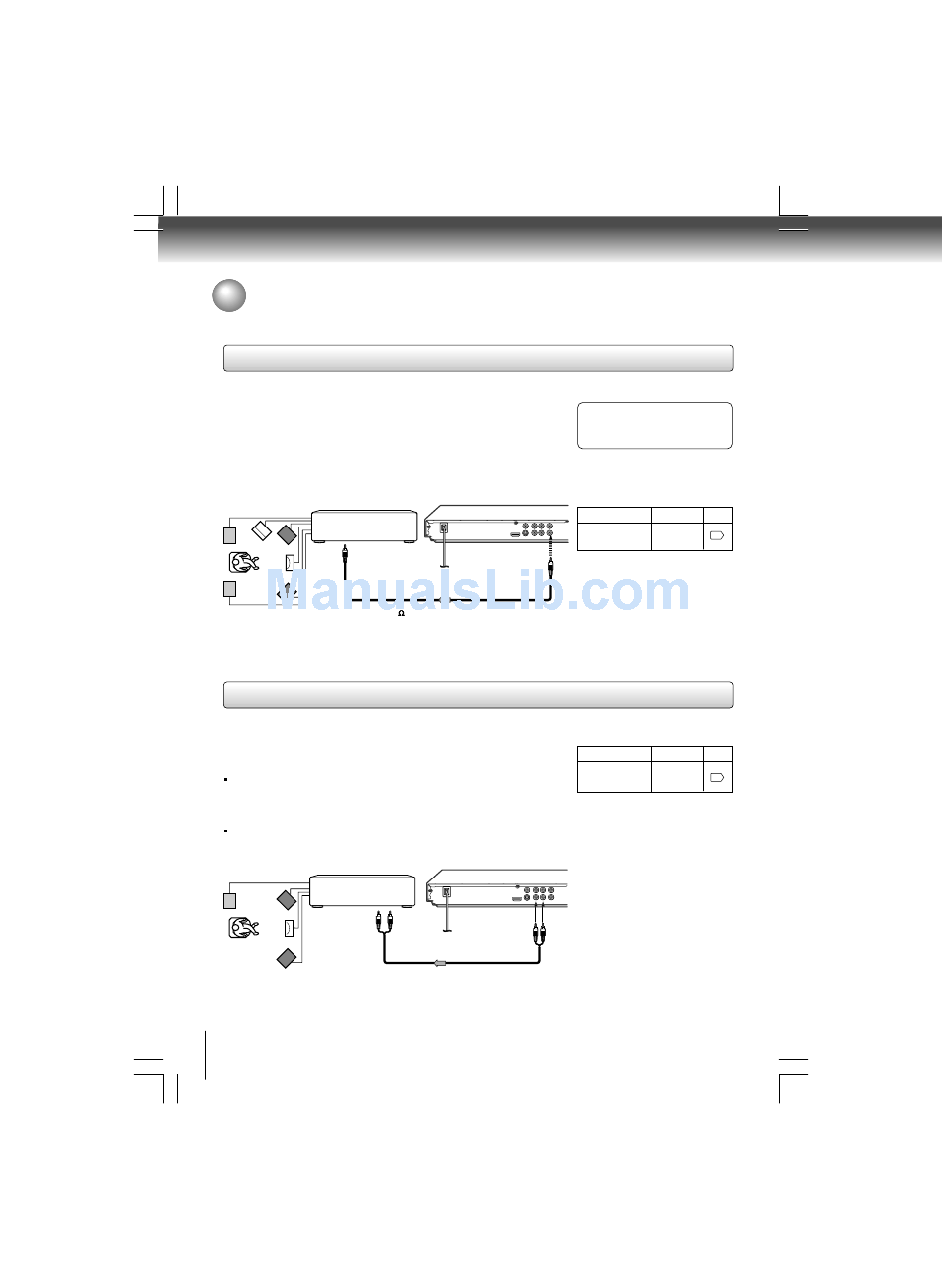

Connecting to an amplifier equipped with a Dolby

Dolby Digital
Dolby Digital is the surround sound technology used in theaters showing the latest
movies, and is now available to reproduce this realistic effect in the home. You can
enjoy motion picture and live concert DVDs with this dynamic realistic sound by
connecting the DVD player to a 6 channel amplifier equipped with a Dolby Digital
decoder or Dolby Digital processor. If you have a Dolby Surround Pro Logic decoder,
you will obtain the full benefit of Pro Logic from the same DVD movies that provide
full 5.1-channel Dolby Digital soundtracks, as well as from titles with the Dolby
Surround mark.
Amplifier equipped with a

Dolby Digital decoder

To COAXIAL
type digital
audio input
75

Connecting to an amplifier equipped with Dolby Surround Pro Logic

Dolby Surround Pro Logic

You can enjoy the dynamic realistic sound of Dolby Surround Pro Logic by connecting
an amplifier and speaker system (right and left front speakers, a center speaker,
and one or two rear speakers).
With an amplifier equipped with Dolby Digital
Connect the equipment the same way as described in "Connecting to an amplifier
equipped with a Dolby ® Digital decoder." Refer to that amplifier's owner's manual
and set the amplifier so you can enjoy Dolby Surround Pro Logic sound.
With an amplifier not equipped with Dolby Digital
Connect the equipment as follows.
Amplifier equipped with
Dolby Surround Pro Logic
To audio
input
14
®
Digital decoder
Manufactured under license from Dolby
Laboratories. Dolby and the double-D
symbol are trademarks of Dolby
Laboratories.
• Use DVDs encoded via the Dolby
• Make the following setting.
On-screen display
To COAXIAL
DIGITAL
T o wall
AUDIO OUT
outlet
coaxial cable (not supplied)
• Make the following setting.
On-screen display
* Connect one or two rear speakers.
The output sound from the rear speakers will
be monaural even if you connect two rear
speakers.
To ANALOG
AUDIO OUT
T o wall
outlet
Audio cable (not supplied)
Digital recording system.
Select: Page
"PCM" or
32
"Digital Output"
"Raw"
Select: Page
"PCM" or
"Digital Output"
32
"Raw"
