STATION WIRING, POWER

STATION WIRING, POWER
IPT Installation Manual Feb,, 2015
The IP5000-series IPTs can be powered by a local power supply at each
station or a 802.3af compliant Power-Over-Ethernet (PoE) device.
Use IEEE CAT5E (minimum) IP cable with a connector boot length not
greater than 1.6 inches (40 mm). For gigabit ethernet operation CAT6
cable is recommended.

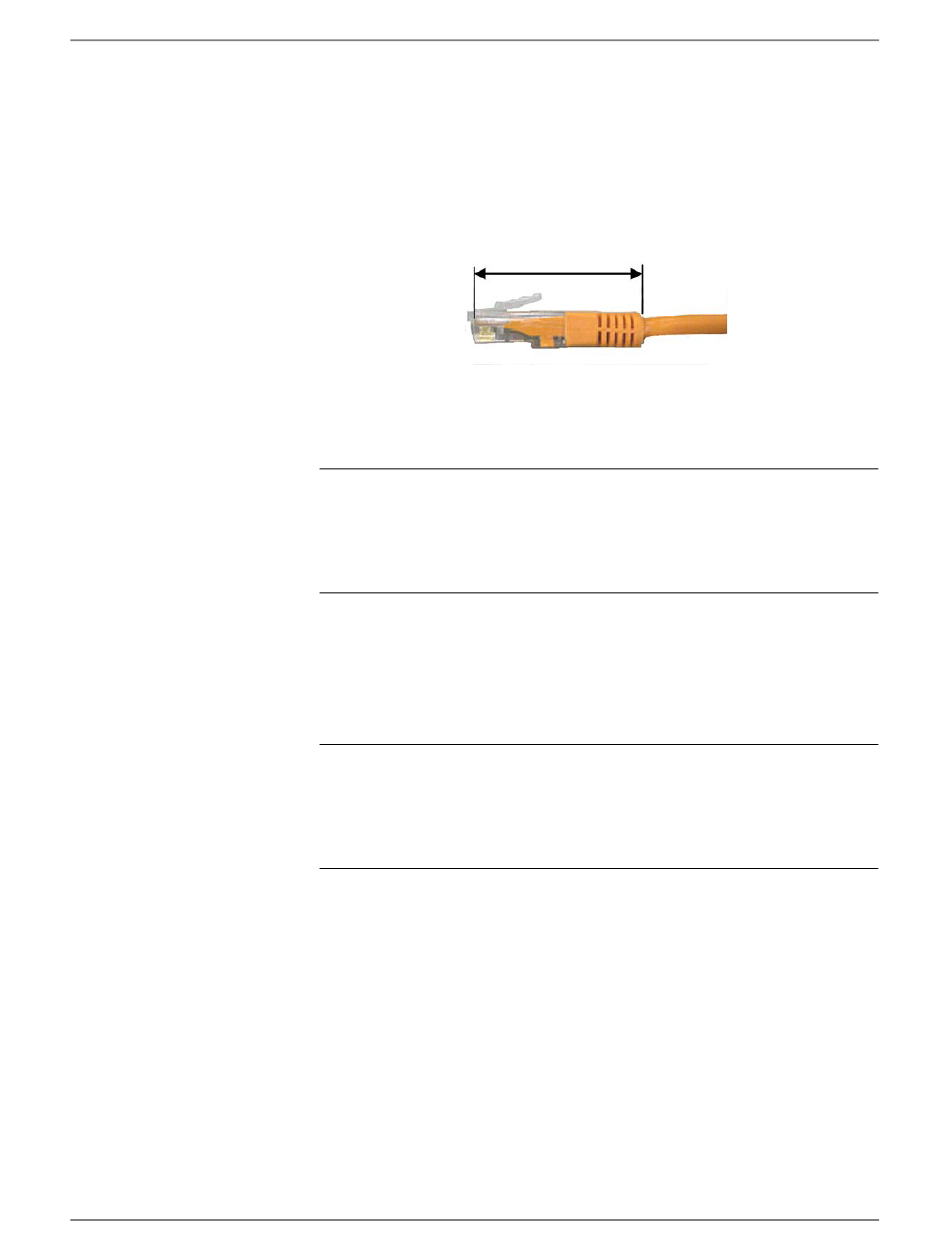

Connector Boot Length
less than 1.6 in. (40 mm)
All IP5000-series telephones are packaged with a 9 ft., 10 in. (3 m) IP
cable.
CAUTION! When powering up by PoE you must leave the LAN cable
UNPLUGGED for a minimum of five seconds before
plugging it back into the IP5000-series IPT or PoE switch.
In some situations the IP5000 cannot start without this
short interval.
IP5000-series telephones equipped with an ADM may require a local
power supply if the PoE switch cannot provide sufficient power for both
the phone and the ADM. Refer to
power requirements.
CAUTION! As above, when powering up by AC power adapter, you
must leave the adapter cable UNPLUGGED for a
minimum of five seconds before plugging it back into the
IP5000-series IPT. In some situations the IP5000 cannot
start without this short interval.
The IP5000-series handset connects with a two-pair modular handset
cable included with the telephone.
An ADM connects to the IP5000-series station only with the modular
cable included with the ADM.
IP5000-Series Telephone Tilt Angles
Table 1-3 on Page 1-8 of this chapter for
1-5
