Ip5000-Series Physical Specifications; Ip5000-Series Telephone Tilt Angles - Toshiba IPedge IP5000 Series Installation Instructions Manual

SUPPORTED IP TELEPHONES

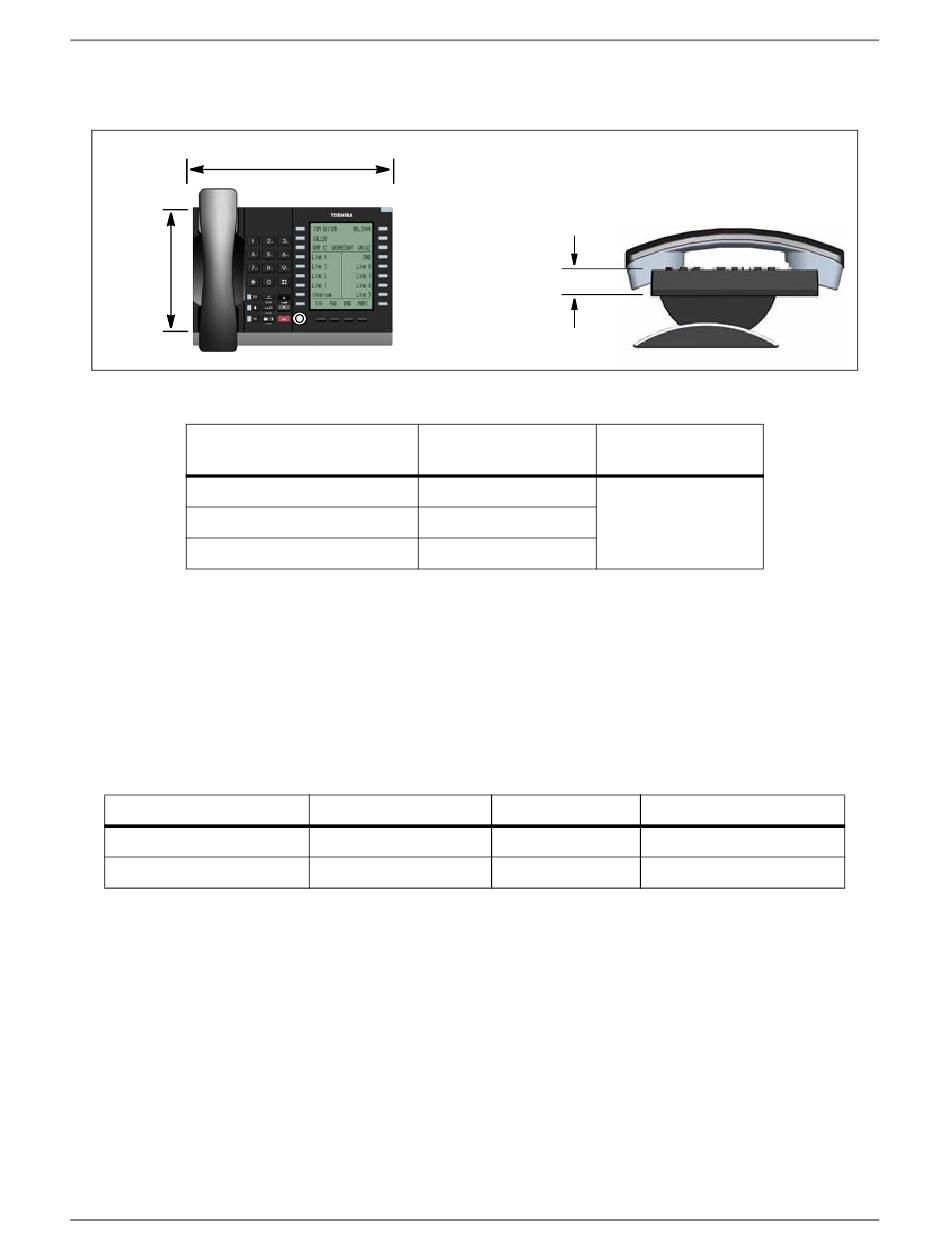

IP5000-Series Physical
Specifications
Depth
Table 1-1 IP5000-Series Telephones and ADMs Physical Dimensions
IP5000 series telephones
IDM5060
KM5020, LM5110
IP5000-Series Telephone
Tilt Angles
Table 1-2 IP5000-Series Tilt Angels
Table / Wall Mount
Table
Wall Mount
IPT Installation Manual Feb,, 2015
Width
Device
10.16 in. (258 mm)
10.16 in. (258 mm)
3.54 in. (90 mm)
The IP5000-series telephones have three tilt positions built into the base.
There is also a tilt stand extension that adds an additional 20 degrees of
tilt. When the telephone is sitting on a desk or table there are a total of six
different angles of tilt available. When wall mounted there are two angles
available. Refer to the figures below and the installation section for more
detail.
Tilt Without Stand
15°, 27.5°, 40°
0°, -20°

IP5000-Series Physical Specifications

1 in. (25 mm)
Depth
Width
Without Tilt
6.10 in. (155 mm)
Tilt with Stand
35°, 47.5°, 60° Refer to
N/A Refer to
Figure
Figure 1-1
Figure 1-2
1-3
