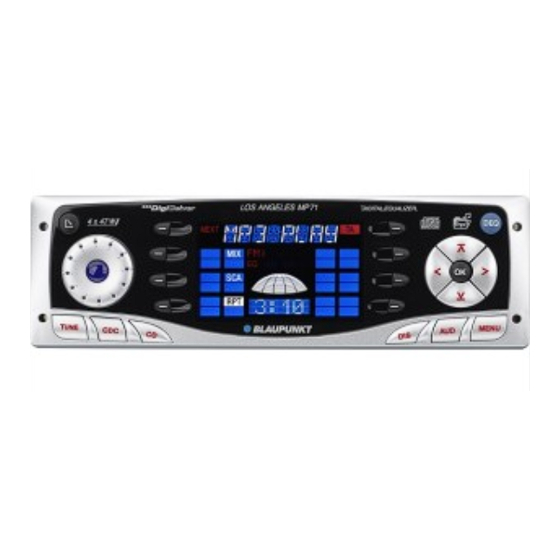

Blaupunkt Los Angeles MP71 Installation Instructions Manual
Radio / cd
Hide thumbs
Also See for Los Angeles MP71:
- Operating instructions manual (31 pages) ,
- Operating instructions manual (32 pages)
Related Manuals for Blaupunkt Los Angeles MP71
Summary of Contents for Blaupunkt Los Angeles MP71

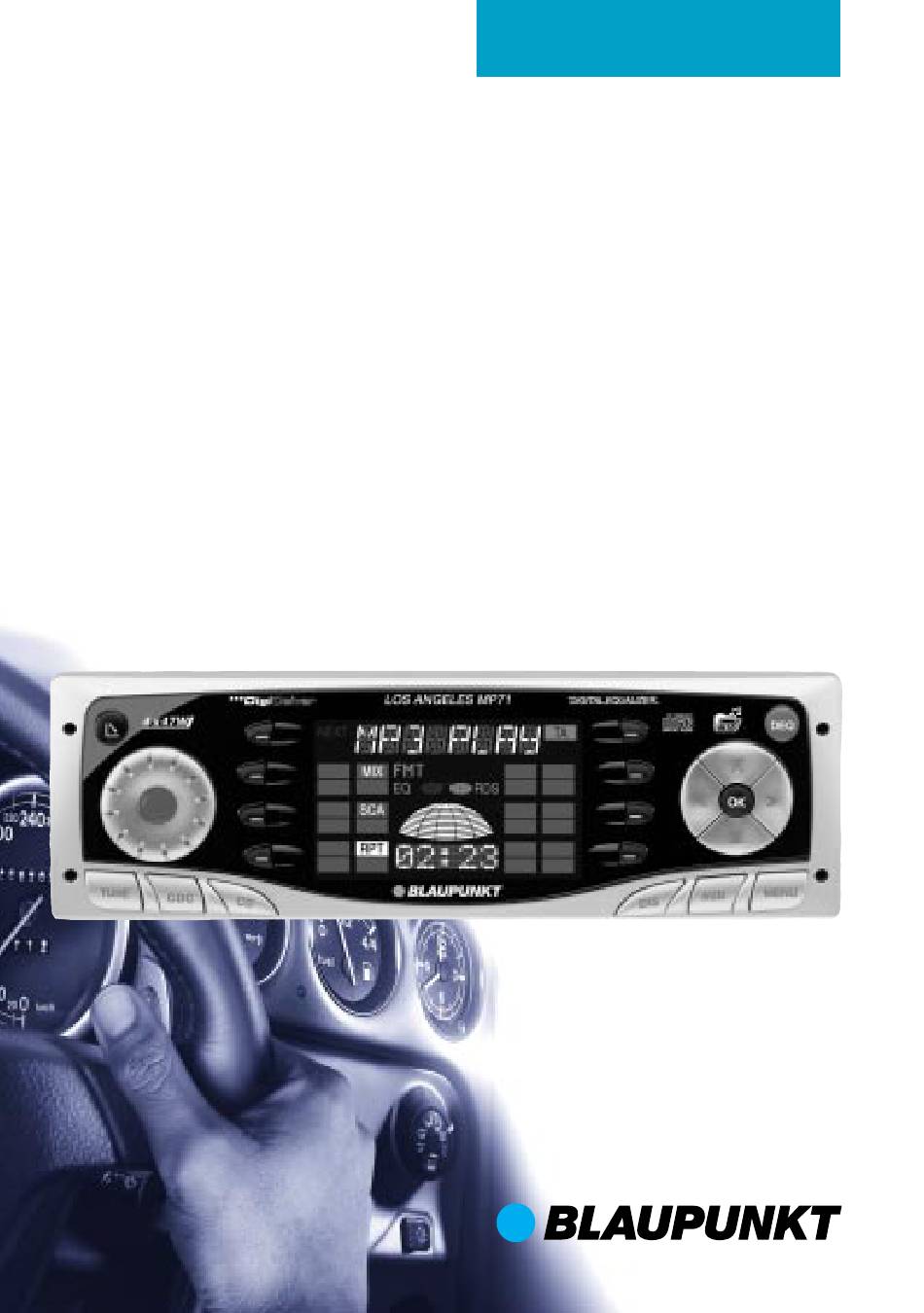

- Page 1 Radio / CD Los Angeles MP71 Installation instructions Notice de montage Instrucciones de instalación Instruções de montagem...
- Page 2 – To avoid causing damage to your radio, use temas eléctricos del vehículo. the corresponding Blaupunkt adapter cable – Para que su radio no sufra daños, debe co- to connect the 8-pin +/- ISO plug in the vehi- nectar el enchufe del vehículo de 8 polos +/...
- Page 3 Supplied Mounting Hardware Materiel de montage fourni Ferretería de montaje suministrada Elementos de fixação fornecidos 1 2 V 1-20 Bend as many taps as possible. Plier si possible toutes les attaches. Lo ideal es poder doblar todas las bridas de sujeción.
- Page 4 RR = right / rear RR = recht / hinten RF = right / front RF = recht / vorn LF = left / front LF = links / vorn LR = left / rear LR = links / hinten 4 Ohm 4 Ohm 7 607 621 .
- Page 5 — Speaker out RR+ Telefon Mute Speaker out RR- Sub Out Speaker out RF+ Permanent +12V Speaker out RF- Aut. antenna Speaker out LF+ Illumination Speaker out LF- Kl.15/Ignition Speaker out LR+ Ground Speaker out LR- Line Out LR 4V/10K Changer Bus-In Line Out RR 4V/10K Changer Bus-Out...
- Page 6 Relais 4 Ohm +12 V 4 Ohm 4 Ohm 4 Ohm Kl. 15 +12 V 1 3 5 Telefon Mute (low) 1 2 V Sub - Out This information is subject to change without notice! Sous réserve de modifications! Modificaciones reservadas! Sob reserva de alterações!
