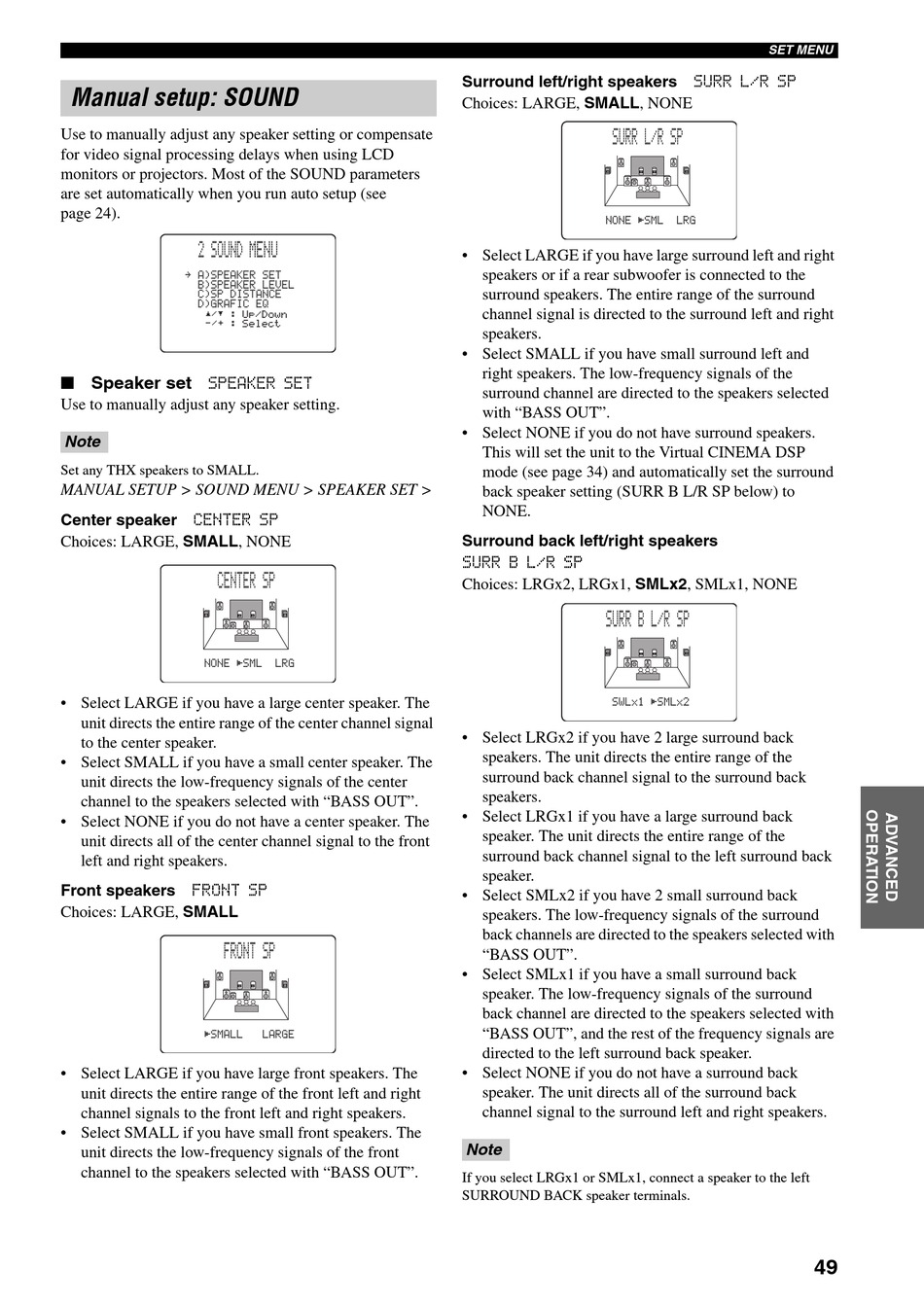

Manual Setup: Sound - Yamaha HTR-5790 Owner's Manual

Manual setup: SOUND

Use to manually adjust any speaker setting or compensate
for video signal processing delays when using LCD
monitors or projectors. Most of the SOUND parameters
are set automatically when you run auto setup (see
page 24).
2 SOUND MENU
. A)SPEAKER SET
B)SPEAKER LEVEL
C)SP DISTANCE
D)GRAFIC EQ
/ : Up/Down
- / + : Select
Speaker set SPEAKER SET
Use to manually adjust any speaker setting.
Note
Set any THX speakers to SMALL.
MANUAL SETUP > SOUND MENU > SPEAKER SET >
Center speaker CENTER SP
Choices: LARGE, SMALL, NONE
CENTER SP
NONE [SML
• Select LARGE if you have a large center speaker. The
unit directs the entire range of the center channel signal
to the center speaker.
• Select SMALL if you have a small center speaker. The
unit directs the low-frequency signals of the center
channel to the speakers selected with "BASS OUT".
• Select NONE if you do not have a center speaker. The
unit directs all of the center channel signal to the front
left and right speakers.
Front speakers FRONT SP
Choices: LARGE, SMALL
FRONT SP
[SMALL
• Select LARGE if you have large front speakers. The
unit directs the entire range of the front left and right
channel signals to the front left and right speakers.
• Select SMALL if you have small front speakers. The
unit directs the low-frequency signals of the front
channel to the speakers selected with "BASS OUT".
LRG
LARGE
Surround left/right speakers SURR L/R SP
Choices: LARGE, SMALL, NONE
SURR L/R SP
NONE [SML
• Select LARGE if you have large surround left and right
speakers or if a rear subwoofer is connected to the
surround speakers. The entire range of the surround
channel signal is directed to the surround left and right
speakers.
• Select SMALL if you have small surround left and
right speakers. The low-frequency signals of the
surround channel are directed to the speakers selected
with "BASS OUT".
• Select NONE if you do not have surround speakers.
This will set the unit to the Virtual CINEMA DSP
mode (see page 34) and automatically set the surround
back speaker setting (SURR B L/R SP below) to
NONE.
Surround back left/right speakers
SURR B L/R SP
Choices: LRGx2, LRGx1, SMLx2, SMLx1, NONE
SURR B L/R SP
SWLx1 [SMLx2
• Select LRGx2 if you have 2 large surround back
speakers. The unit directs the entire range of the
surround back channel signal to the surround back
speakers.
• Select LRGx1 if you have a large surround back
speaker. The unit directs the entire range of the
surround back channel signal to the left surround back
speaker.
• Select SMLx2 if you have 2 small surround back
speakers. The low-frequency signals of the surround
back channels are directed to the speakers selected with
"BASS OUT".
• Select SMLx1 if you have a small surround back
speaker. The low-frequency signals of the surround
back channel are directed to the speakers selected with
"BASS OUT", and the rest of the frequency signals are
directed to the left surround back speaker.
• Select NONE if you do not have a surround back
speaker. The unit directs all of the surround back
channel signal to the surround left and right speakers.
Note
If you select LRGx1 or SMLx1, connect a speaker to the left
SURROUND BACK speaker terminals.
SET MENU
LRG
49
