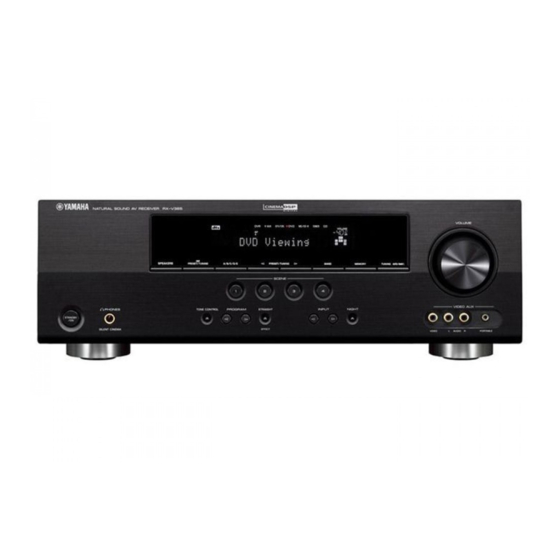

Yamaha RX-V365 Connection Manual
Hooking up a blu-ray/dvd player
Hide thumbs
Also See for RX-V365:
- Owner's manual (104 pages) ,
- Service manual (100 pages) ,
- Specifications (2 pages)
Advertisement
Quick Links
Hooking up a Blu-ray/DVD player to the RX-V365/HTR-6230
OPTICAL INPUT CD 3
*See Notes
DIGITAL INPUT
OPTICAL
COAXIAL
OPTICAL OUT
Blu-ray/DVD Player
Notes:
The Optical Input CD #3 will need to be
associated to the DVD HDMI input. Please
see page 2 of this document for detailed
instructions on setting that feature up.
HDMI IN
HDMI OUT
OUT
DOCK
COMPONENT VIDEO
DVD
DTV/CBL
DVR
MONITOR
OUT
P
R
P
B
DVD
Y
CD
MULTI CH INPUT
DVD
FRONT
SURROUND
CENTER
DTV/
CBL
DVD
SUBWOOFER
HDMI OUT
TV
(or Projector)
HDMI DVD
ANTENNA
DVD
DTV/CBL
HDMI
AM
GND
VIDEO
DTV/CBL
DVR
MONITOR
FM
OUT
IN
OUT
UNBAL.
AUDIO
DTV/CBL
DVR
CD
MD/
IN
OUT
IN
OUT
(PLAY)
CD-R
(REC)
SPEAKERS
SURROUND
CENTER
FRONT B
OUTPUT
SUB
WOOFR
FRONT A
Advertisement
Related Manuals for Yamaha RX-V365
Summary of Contents for Yamaha RX-V365
- Page 1 Hooking up a Blu-ray/DVD player to the RX-V365/HTR-6230 (or Projector) HDMI IN HDMI DVD HDMI OUT ANTENNA SPEAKERS SURROUND CENTER FRONT B DTV/CBL HDMI OPTICAL INPUT CD 3 DOCK COMPONENT VIDEO DTV/CBL MONITOR *See Notes DIGITAL INPUT VIDEO DTV/CBL MONITOR OPTICAL UNBAL.
- Page 2 The RX‐V365/HTR‐6230 Receiver does support HDMI Audio Decoding and you will need to run Separate Audio Cables from the Source to the Receiver to get sound. Setting up DVD/Blu Ray Player Optical out from the Blu‐ray/DVD player to receiver CD Optical #3 input. (You will need to reassign the CD optical input to DVD. See below.) Changing the Optical input association from CD to DVD Note: To do this you will need to be in front of the receiver and have the Yamaha receiver remote. 1. Press the AMP button on remote. 2. Press the Menu button on remote to bring up setup menu on the receiver LED screen front panel. 3. Use Arrow down button to scroll to Manual Setup. 4. Press the Enter button to go into Manual Setup. 5 Use Arrow down button to scroll to 2 Input Menu. 6. Press Enter on remote to go into Input Menu, A) Input Assign will come up. 7. Press the Enter button on the remote to enter A) Input Assign. 8. IN (1) (COAXIAL jack): DVD will come up. 9. Use Arrow right button to change that to V‐AUX. (You cannot select a specific item more than once.) 10. Use Arrow down button to scroll to IN (3) (OPTICAL (CD) jack): CD. 11. Use Arrow right button to change that to DVD. 12. Press Menu button on the remote to exit the Menu system. Now when DVD is selected on the receiver it will look at the CD Optical input for digital audio. ...
