SECTION 2—INSTALLATION
Installing the Back - Invacare Power Wheelchairs with Power
Recline
NOTE: This mounting system is fixed and does not allow for
width, angle or depth adjustment.
NOTE: For this procedure, refer to FIGURE 2.8 and
FIGURE 2.9.
1. Place a flat washer onto two hex head screws.
2. Insert a hex head screw into each mounting hole in the
back cane mounting bracket.
3. Loosely attach the hex head screws and flat washers to
the back cane mounting bracket with two t‐nuts.
4. Repeat STEPS 1‐3 to attach the hardware to the
opposite back cane mounting bracket.
5. Align and insert the t‐nuts into the T‐slots in the back
canes.
6. Adjust the back to the desired position on the back
canes.
7. Loosely tighten the hex head screws.
NOTE: If no other height adjustment is necessary, proceed to
STEP 11 of this procedure.
8. On each side of the wheelchair, loosen but DO NOT
remove the two socket head screws that secure the
back shell and washer plates to the back cane
mounting bracket.
9. Adjust the back to the desired height along the vertical
slots on both sides of the back shell.
10. Tighten the socket head screws securing the washer
plates and back shell to the back cane mounting
brackets.
11. Securely tighten the hex head screws.
NOTE: After installation and before use, pull up on the back to
ensure it is locked.
™ ™

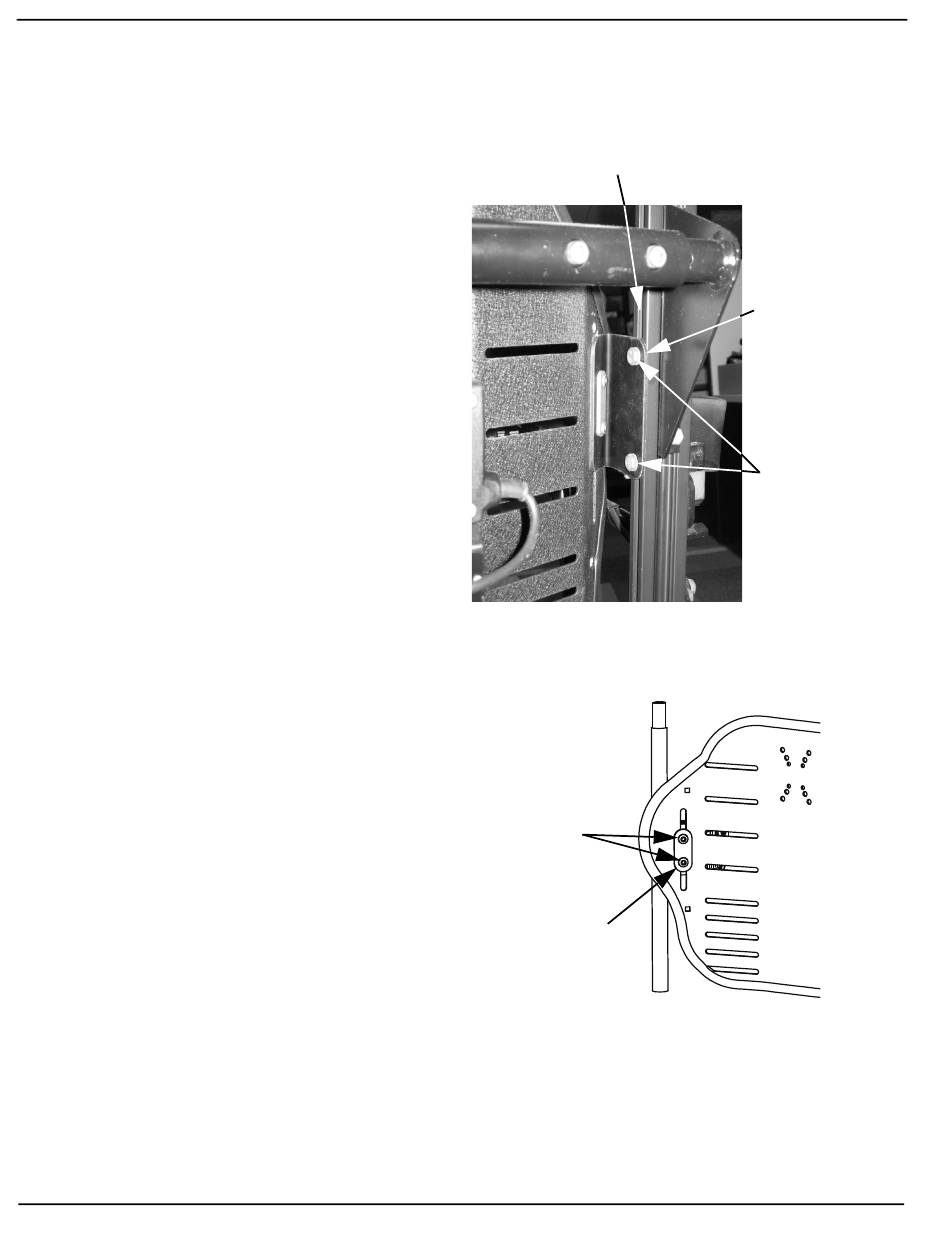

InTouch PCS Positioning Back
T-Slot in
Back Cane
FIGURE 2.8 Installation Details on an
Invacare Power Wheelchair with Power Recline
Socket Head
Screws
Washer Plate
Secondary Height Adjustment
FIGURE 2.9
10
Back Cane
Mounting Bracket
Hex Head Screws
and Flat Washers
Part No 1163138
