Ryobi RAP200G How To Get Started

WARNING:
This How To Get Started sheet is
not a substitute for reading the operator's manual.
To reduce the risk of injury or property damage, user
must read and understand operator's manual before
using this product.
For detailed instructions on how
to perform any of the steps below,
please see the operator's manual.
Attach 4-finger pistol grip sprayer to high pressure hose and then attach
1
high pressure hose to outlet valve on sprayer.
2
Place 1 gallon or 5 gallon container on unit.
Lock the sprayer trigger then remove nozzle tip guard and spray tip from
3
sprayer.
Place intake tube into paint station container and return tube into a waste
4
container.
Turn prime/spray lever to PRIME and High/Low pressure control to LOW
5
pressure.
6 Plug in the paint station. Press and release the Manual Valve Release button
and turn (I) ON / (O) OFF switch ON.
When paint or stain begins to flow through return tube, move return tube
7
to the paint container.
Point sprayer (without guard and spray tip in place) into waste container. Turn
8
prime/spray lever to SPRAY and spray until pure paint or stain comes out.
Turn unit off. Lock sprayer trigger and install tip guard and desired spray
9
tip on sprayer.
10
Turn unit on and turn HIGH/LOW pressure control from LOW to HIGH.
11
Unlock sprayer trigger. Unit is ready to spray.
990000365
3-21-13 (REV:02)

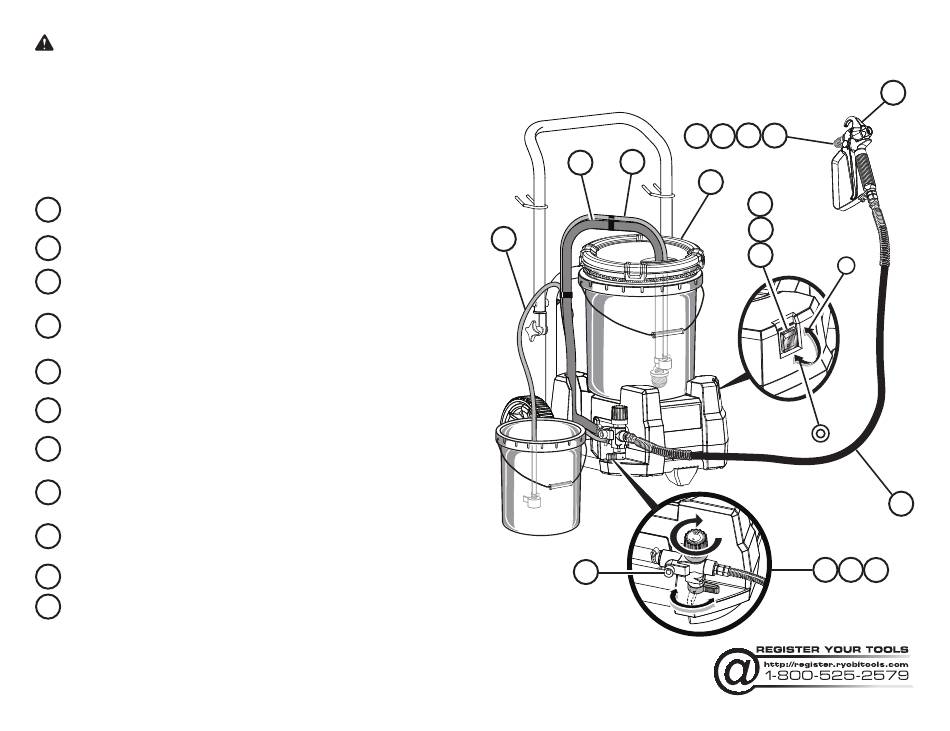

HOW TO GET STARTED
4
*For set-up when using the paint roller,
please see the operator's manual.
3 8 9
4
7
2
10
6
1
11
9
6
I
1
10 8 5
