KVH Industries TracPhone V11 Installation Checklist

TracPhone
Required to validate your installation
Installation Information
Vessel Name: ___________________________________ Customer Name: ___________________________________
Antenna Serial Number: ___________________________ Installation Date: ___________________________________
Installing Technician: _____________________________ Installing Company: _________________________________
Installing Company Address: _________________________________________________________________________
City: __________________________________________ State/Province: _____________________________________
Postal/Zip Code: _________________________________ Country: __________________________________________
Phone Number: _________________________________ E-mail: ___________________________________________
Installation Quality Check
Requirement

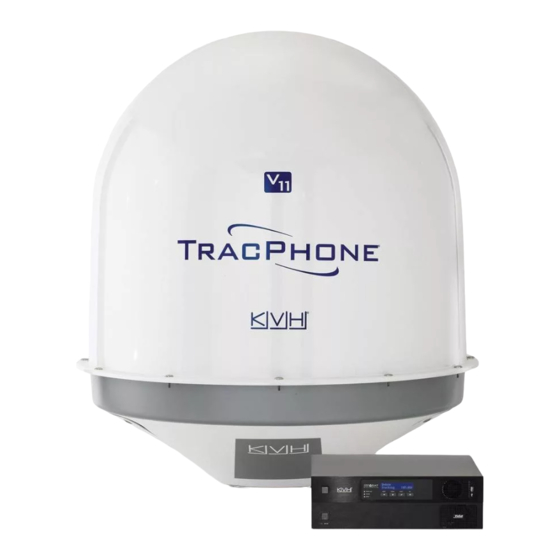

Antenna Unit
The antenna is mounted in a blockage-free area, with a clear view of the sky (360°), to the best extent possible.
Location description: ________________________________________________________________________
Take digital photos of the antenna installation from all directions. Send these photos to KVH with this form.
The antenna is mounted away from the vessel's superstructure, other antennas, and magnetic compasses.
The antenna is mounted as far away as possible from the radar and high-power radio transmitters. The antenna is
located at least the minimum distance away from the radar based on radar power level and vertical separation:
X-band ≤50 KW: 0.9 m at ±15°; S-band ≤10 KW: 2 m at ±40°, ≤30 KW: 3 m at ±60°, ≤50 KW: 5 m at ±60°.
The antenna is mounted on a flat, level surface/pedestal capable of supporting the antenna's weight of 109 kg
(240 lbs) under all environmental conditions.
Prevention of RF radiation exposure was taken into consideration when choosing a mounting location.
The "Forward" arrow points towards the bow and is parallel to the vessel's centerline. Connectors face the stern.
Both service hatches are easily accessible to a technician.
Anti-seize lubricant was applied to all four mounting bolts.
The mounting nuts were tightened to between 35 and 40 ft-lbs (47 and 54 N-m) of torque.
If the cable access hole is underneath the antenna, foam seals were installed and are pressing against each other.
Belowdecks Equipment
All belowdecks equipment is installed in a cool, dry location that provides good ventilation.
Location description: ________________________________________________________________________
The front panels of the CommBox-ACU and modem are easily accessible to the user.
All cables are strain-relieved at the back of the CommBox-ACU and modem using the supplied bracket.
The CommBox-ACU is in a location that provides good Wi-Fi reception (if customer requires wireless access).
©2012-2013 KVH Industries, Inc. KVH, TracPhone, and CommBox are trademarks of KVH Industries, Inc. 50-0148 Rev. B
V11 Installation Checklist
®
MM/DD/YYYY
