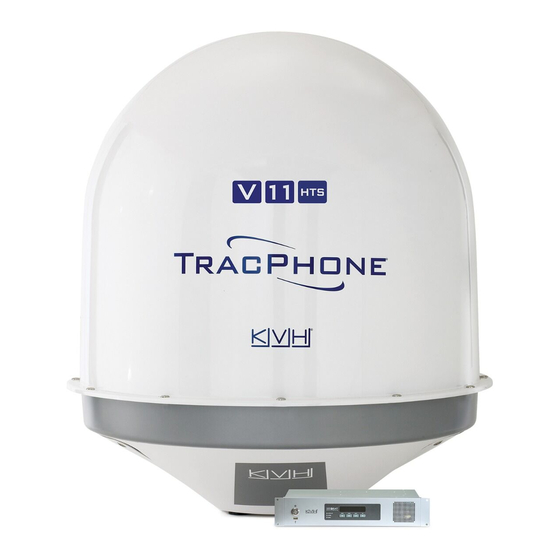

TracPhone V11
Conversion Instructions
Important! BEFORE you start the conversion process, you MUST do the following:
1. Read the document titled Understanding the Network Configuration Changes. This document, which is
provided in the conversion kit, explains how the V11-HTS ICM (Integrated CommBox Modem) differs
from the V11-IP/V11, particularly its network structure and configurations. Be sure you understand these
differences. You may need to modify the vessel network.
2. Update the current V11-IP/V11 system to the latest software version. Follow the instructions in the
system's Help menu or User's Guide. If the antenna does not have software version 209.0 or later installed,
it will not be able to communicate properly with the new ICM when you convert the system to V11-HTS.
The following instructions explain how to convert a
®
TracPhone
V11-IP/V11 system for V11-HTS
operation.
Tools Required
This procedure requires the following tools:
• Phillips screwdriver
• Phillips torque screwdriver set to 21 in.-lbs
• Phillips torque screwdriver set to 32 in.-lbs
• Flat-head jeweler's screwdriver
• Flat-head torque screwdriver set to 5 in.-lbs
• 7/16" open-end wrench
• 7/16" torque wrench set to 15 in.-lbs
• 7/16" socket/ratchet or nut driver
• 3mm hex key (supplied in kit)
• Flush cutters
Refer to the TracPhone V11-HTS Installation Guide
(supplied in the V11-HTS Welcome Kit) for the tools
list and installation steps for the new ICM.
Technical Support
If you need technical assistance, please contact KVH Technical Support:
Europe, Middle East, Africa, Asia-Pacific:
Phone: +45 45 160 180
Email: mvbsupport@kvh.com
KVH, TracPhone, and the unique light-colored dome with dark contrasting baseplate are registered trademarks of KVH Industries, Inc.
All other trademarks are property of their respective companies. The information in this document is subject to change without notice.
No company shall be liable for errors contained herein. © 2019 KVH Industries, Inc., All rights reserved.
/V11 to V11
IP
HTS
54-1290 Rev. C| 72-0862

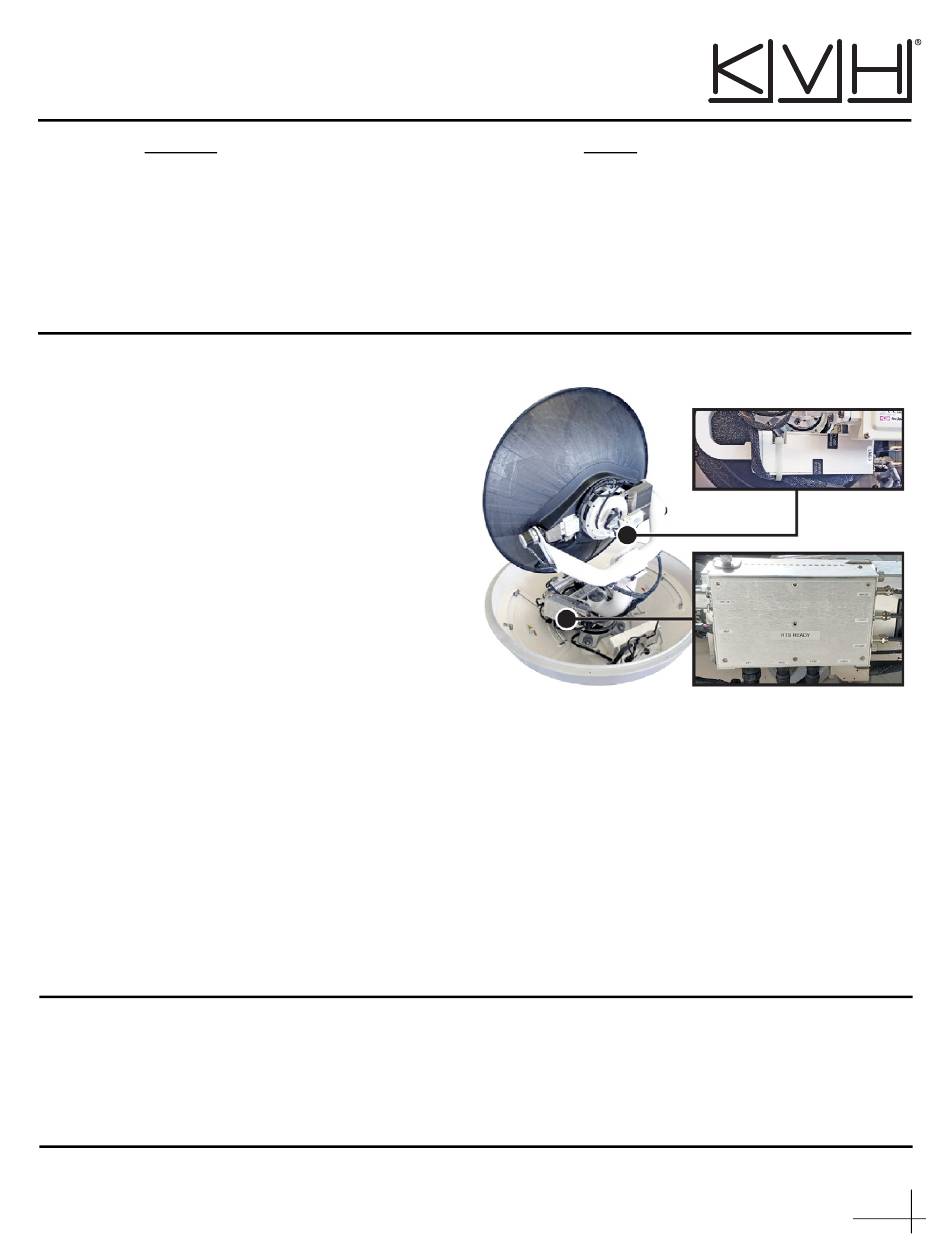

Figure 1: V11-HTS Antenna Main Conversion Components
North/South America, Australasia:
Phone: 1 866 701-7103 (U.S. only) or +1 401 851-3806
Email: mvbsupport@kvh.com
1
Advertisement
Related Manuals for KVH Industries TracPhone V11-IP
Summary of Contents for KVH Industries TracPhone V11-IP
- Page 1 Email: mvbsupport@kvh.com KVH, TracPhone, and the unique light-colored dome with dark contrasting baseplate are registered trademarks of KVH Industries, Inc. All other trademarks are property of their respective companies. The information in this document is subject to change without notice.
-
Page 2: Step 1 - Update The System Software
Step 1 - Update the System Software Figure 2: Service Hatch Connect power to the system. Then follow the instructions in the system’s Help menu or User’s Guide to update the system software to the latest version of V11-IP or V11 software. Radome Step 2 - Power Off the System and Open the Service Hatch... - Page 3 Step 3 - Inspect the Feed Tube Figure 4: Gray Tape Applied at the Factory If the feed tube riser and shield are sealed with tape, as shown in Figure 4 or Figure 5, continue to “Replace the LNB” on page If no tape is present, clean the surface with alcohol and secure the riser with twelve 3"...
- Page 4 Step 4 - Replace the LNB There are three possible LNB types installed in the antenna. Identify the LNB by sight, then continue to the relevant page to replace the LNB. Antenna LNB Go to Legacy LNB-1 page 5 NOTE: Since the filter is inside the original LNB being replaced, an external filter is added to the LNB-3.
- Page 5 Replacing a Legacy LNB-1 Figure 6: Legacy LNB-1 RF Cable and Orientation to OMT If you have a legacy LNB-1, follow the steps below to replace the LNB-1 with an LNB-3 and filter assembly. Important! Before removal, note the LNB orientation (the LNB notch, shown in Figure 6 and Figure 7, faces the OMT), and be sure to match this orientation when installing the replacement LNB.
- Page 6 Replacing an LNB-1/Filter Assembly Figure 10: LNB-1/Filter Assembly RF Cable and Orientation to OMT If you have an LNB-1 with filter assembly, follow the steps below to replace the LNB-1/filter assembly with an LNB-3 and filter assembly Important! Before removal, note the LNB orientation (the LNB notch, shown in Figure 10 and Figure 11, faces the OMT), and be sure to match this orientation when installing the replacement LNB.
-
Page 7: Replacing An Lnb
Replacing an LNB-1 Figure 14: LNB-1 RF Cable and Orientation to OMT If you have an LNB-1 without a filter assembly, follow the steps below to replace the LNB-1 with an LNB-3. Important! Before removal, note the LNB orientation (the LNB notch, shown in Figure 14 and Figure 15, faces the OMT), and be sure to match this orientation when installing the replacement LNB. - Page 8 6. Secure the LNB-3 to the OMT using four new Figure 18: LNB-3 RF Cable and Orientation to OMT M4 screws (supplied in kit), making sure that the LNB notch faces the OMT as shown in Figure 18 and Figure 19. Tighten the screws to 21 in-lbs of torque.
- Page 9 Step 5 - Replace the Power/Thermal Figure 20: Cable Connectors (HTS Ready Power/Thermal Module Shown) Module Follow the steps below to replace the power/ thermal module. Important! Do not use excessive force when loosening or tightening the DB9 connectors’ retaining screws. 1.
- Page 10 5. Slowly rotate the antenna assembly by hand a Figure 22: Power Switch Inside Antenna full 360º in both directions and ensure the cables do not catch on anything and do not restrict movement. Then rotate the skew assembly in both directions to also ensure its freedom of movement.
- Page 11 Step 6 - Replace the ICM Figure 23: V11-IP ICM Follow the steps below to replace the ICM. 1. Disconnect and remove the current ICM, or the CommBox-ACU and modem. 2. Unpack and install the new ICM (KVH part no. 02-2204-03, see Figure 24) as described in the TracPhone V11-HTS Installation Guide (supplied in the V11-HTS Welcome Kit).
- Page 12 Step 7 - Configure the LNB Type Figure 27: PuTTY Configuration Screen Follow the steps below to set the LNB type. NOTE: These instructions assume you will be using PuTTY to enter antenna commands. However, you may use a different terminal emulator program, such as HyperTerminal.
-
Page 13: Step 8 - Complete Setup
Step 8 - Complete Setup Figure 28: TracPhone V11-HTS Installation Guide Follow the instructions in the TracPhone V11-HTS Installation Guide to finish converting the system (see Figure 28). Be sure to complete the following steps: • Update the Software - Ensure the latest version of V11-HTS software is installed in the system.
