Information on the standard functions and the
advanced functions
5.1
heat source
5.1.1
Operating mode
Operation of the heat source is specified or adjusted via the connected
consumer.
Auto (Automatically)
In this operating mode, operation of the heat source is specified via the
connected consumer.
Manual operation
Chapter 3.7 ... Setting Manual operation via, page 12 ... 14
5.2
Heating circuit, operating modes, temperature
5.2.1
Operating modes
Individual temperatures and changeover criteria can be set for each of
the operating modes ( Fig. 20, [2], page 18) and advanced functions.
The adjustments can be made separately for each heating circuit and
each operating mode.
The following settings are possible:
• Automatic heating mode
• Automatic setback mode
• Manual heating mode
• Manual setback mode
• Holiday
1
50 °C
on/off
30 %

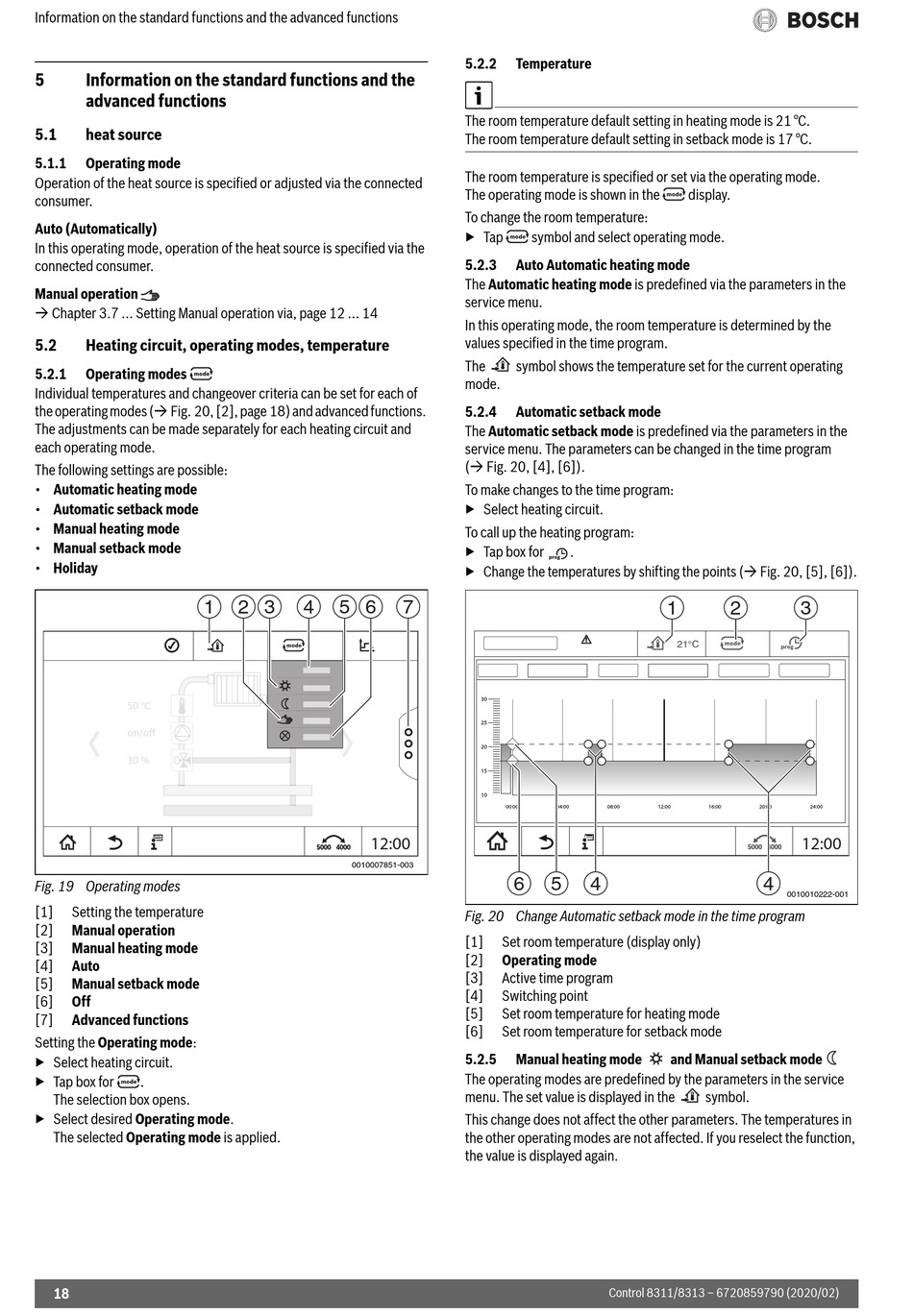

Fig. 19 Operating modes
[1]
Setting the temperature
[2]
Manual operation
[3]
Manual heating mode
[4]
Auto
[5]
Manual setback mode
[6]
Off
[7]
Advanced functions
Setting the Operating mode:
▶ Select heating circuit.
▶ Tap box for
.
The selection box opens.
▶ Select desired Operating mode.
The selected Operating mode is applied.
18
2
3
4
5 6
7
12:00
0010007851-003
5.2.2
Temperature
The room temperature default setting in heating mode is 21 °C.
The room temperature default setting in setback mode is 17 °C.
The room temperature is specified or set via the operating mode.
The operating mode is shown in the
To change the room temperature:
▶ Tap
symbol and select operating mode.
5.2.3
Auto Automatic heating mode
The Automatic heating mode is predefined via the parameters in the
service menu.
In this operating mode, the room temperature is determined by the
values specified in the time program.
The
symbol shows the temperature set for the current operating
mode.
5.2.4
Automatic setback mode
The Automatic setback mode is predefined via the parameters in the
service menu. The parameters can be changed in the time program
( Fig. 20, [4], [6]).
To make changes to the time program:
▶ Select heating circuit.
To call up the heating program:
▶ Tap box for
.
▶ Change the temperatures by shifting the points ( Fig. 20, [5], [6]).
30
25
20
15
10
00:00
04:00
08:00
6
5
4
Fig. 20 Change Automatic setback mode in the time program
[1]
Set room temperature (display only)
[2]
Operating mode
[3]
Active time program
[4]
Switching point
[5]
Set room temperature for heating mode
[6]
Set room temperature for setback mode
5.2.5
Manual heating mode
The operating modes are predefined by the parameters in the service
menu. The set value is displayed in the
This change does not affect the other parameters. The temperatures in
the other operating modes are not affected. If you reselect the function,
the value is displayed again.
Control 8311/8313 – 6720859790 (2020/02)
display.
1
2
3
21°C
12:00
16:00
20:00
24:00
12:00
4
0010010222-001
and Manual setback mode
symbol.
