Bosch TS2100 Operating/Safety Instructions Manual page 9

For Mounting Bosch 4000 / 4100 /
GTS1041A Table Saw to TS2100 Stand

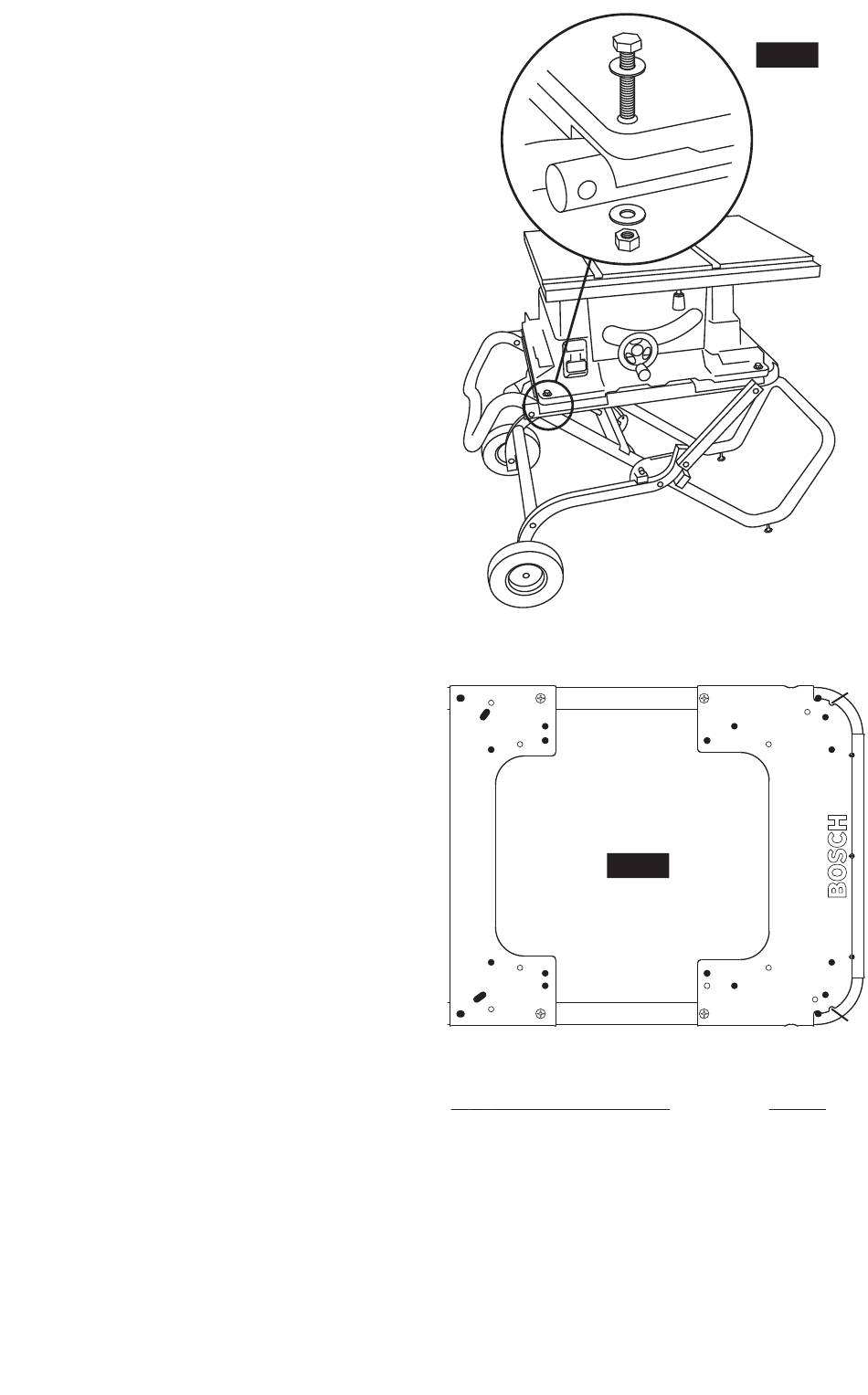

1. Using the diagram on page 9 (figure C),
locate the Bosch 4000 / 4100 / GTS1041A
mounting holes and position saw on stand
as shown in figure B.
2. To mount the 4100 / GTS1041A Table
Saw:
Align the saw as shown in figure A. Place
one (1) 6 mm flat washer onto one (1) 6
mm x 110 mm hex head bolt and insert
bolt through mounting hole in table saw
and through stand table top.
To mount the 4000 Table Saw:
Align the saw as shown in figure B. Place
one (1) 6 mm flat washer onto one (1) 6
mm x 75 mm hex head bolt and insert bolt
through mounting hole in table saw and
through stand table top
3. Place one (1) 6 mm flat washer and
securely tighten with one (1) 6 mm lock
nut.
Repeat this procedure on the three
remaining mounting holes.
For Mounting Other Table Saws to
Model TS2100
Important: Before mounting a DeWalt,
Craftsman, Makita, Hitachi, or Ridgid table
saw, insert two (2) 8mm x 50mm Phillips
head screws through "B*" hole locations and
tighten using 8mm lock nuts.
1. Using the diagram below, locate the
correct mounting holes for the table saw
being used and position saw on stand
accordingly.
For use with Hitachi Table Saw:
If your TS2100 stand does not have "H"
holes, you will need to drill holes. Place
the saw over the center of the opening and
make pencil marks (through the L-shaped
bracket holes) on the table top mounting
plates. Remove saw and drill four (4) 5/16"
diameter holes through the mounting
plates.
For use with Ridgid Table Saw:
Locate the four "R" holes in the two
mounting plates and drill four (4) 3/8"
diameter holes completely through the
stand's frame.
2. Mount the table saw using the appropriate
mounting hardware for your table saw
model.
R
B*
M
D
H
C I
C
I
H
D
M
B*
R
Table Saw Models
Bosch 4000 / 4100 / GTS1041A
Bosch GTS1031
Dewalt DW744
Craftsman 21830
Makita 2703
Hitachi C10RA2**
Ridgid TS2400LS**
-9-
TS2100
M
I
FIG. C
I
M
Mounting
**See instructions.
FIG. B
R
B
D
C
H
C
H
D
B
R
Holes
B
I
D
C
M
H
R
