Step 1
Attach Upper and Lower Cross Bars

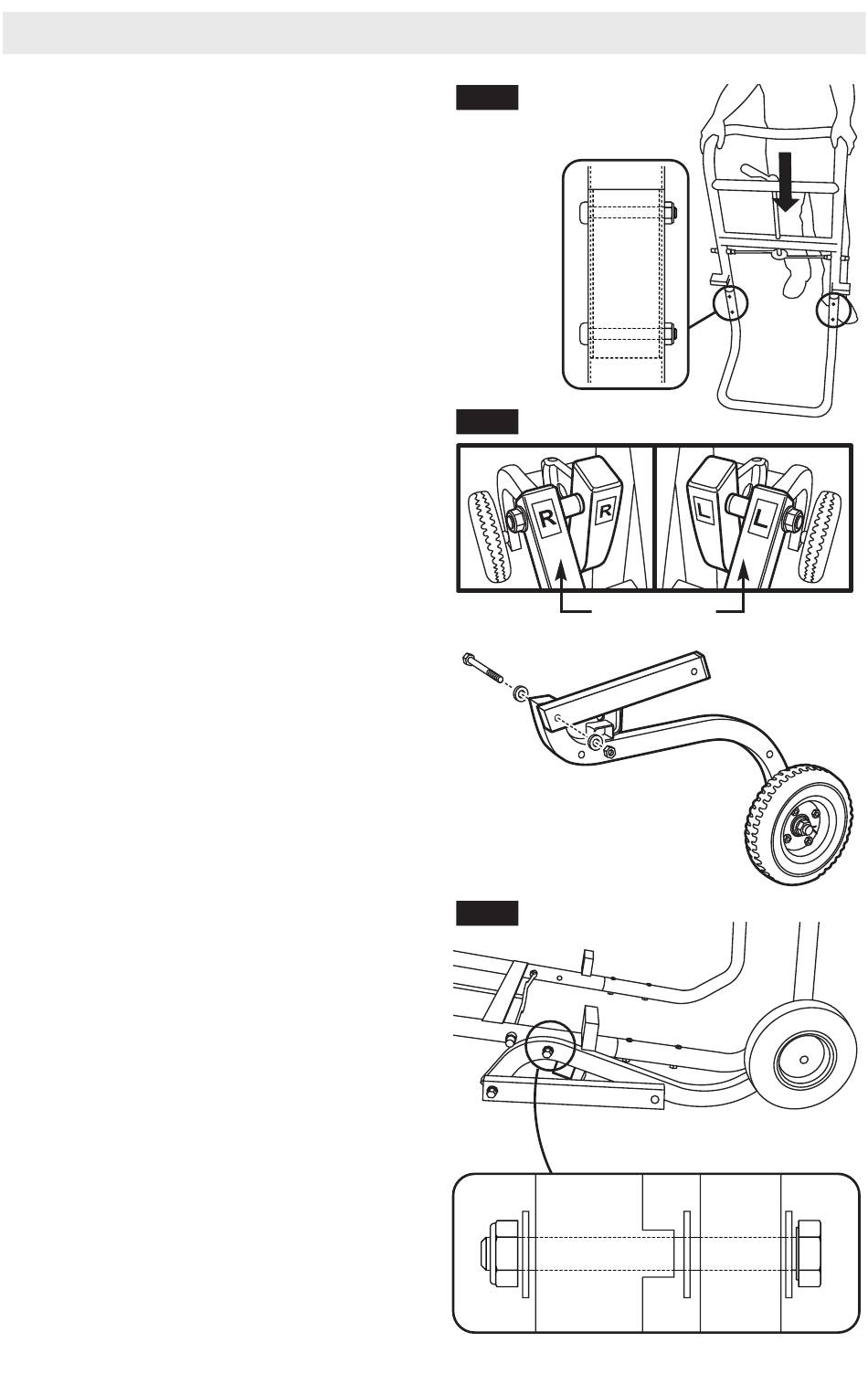

1. Position lower cross bar on a flat surface
as shown in figure A.
2. Insert ends of upper cross bar into the
lower cross bar and push downward as far
as it will go.
3. Insert four (4) 8 mm x 50 mm Phillips Head
Screws through the holes of the upper and
lower cross bars, and securely tighten with
four (4) 8 mm lock nuts as shown.
Step 2 (Model TS3100 only)
Right and Left Linkage Bar/Wheel Assemblies
1. Locate the right linkage bar and right
wheel assembly. Note the "R" stickers on
each component.
2. Place one (1) flat washer on one (1) 10mm
x 90mm bolt. Line up the "R" stickers and
insert the bolt, first, through the right wheel
assembly, and then through the right
linkage bar as shown in figure B.
3. Place another (1) 10mm flat washer on
bolt and loosely tighten with one (1) 10mm
lock nut.
NOTE: Do not over-tighten lock nut – these
parts need to rotate for stand to
operate properly.
4. Repeat 1-3 using left linkage bar and left
wheel assembly. Note the "L" sticker on
each component.
Step 3
Attach Linkage Bar/Wheel Assemblies
1. Locate the right linkage bar/wheel
assembly and position on right side of
upper/lower cross bar assembly as shown
in figure C.
NOTE: Wheel should face outward from
stand.
2. Place one (1) flat washer onto one (1) 10
mm x 100 mm bolt and insert through right
leg/wheel assembly.
Assembly
FIG. A
FIG. B
FIG. C
Lock Nut
Washer
-6-
Linkage Bar
Linkage
Upper
Bar/Wheel
Cross Bar
Assembly
Washer
Bolt
Washer
