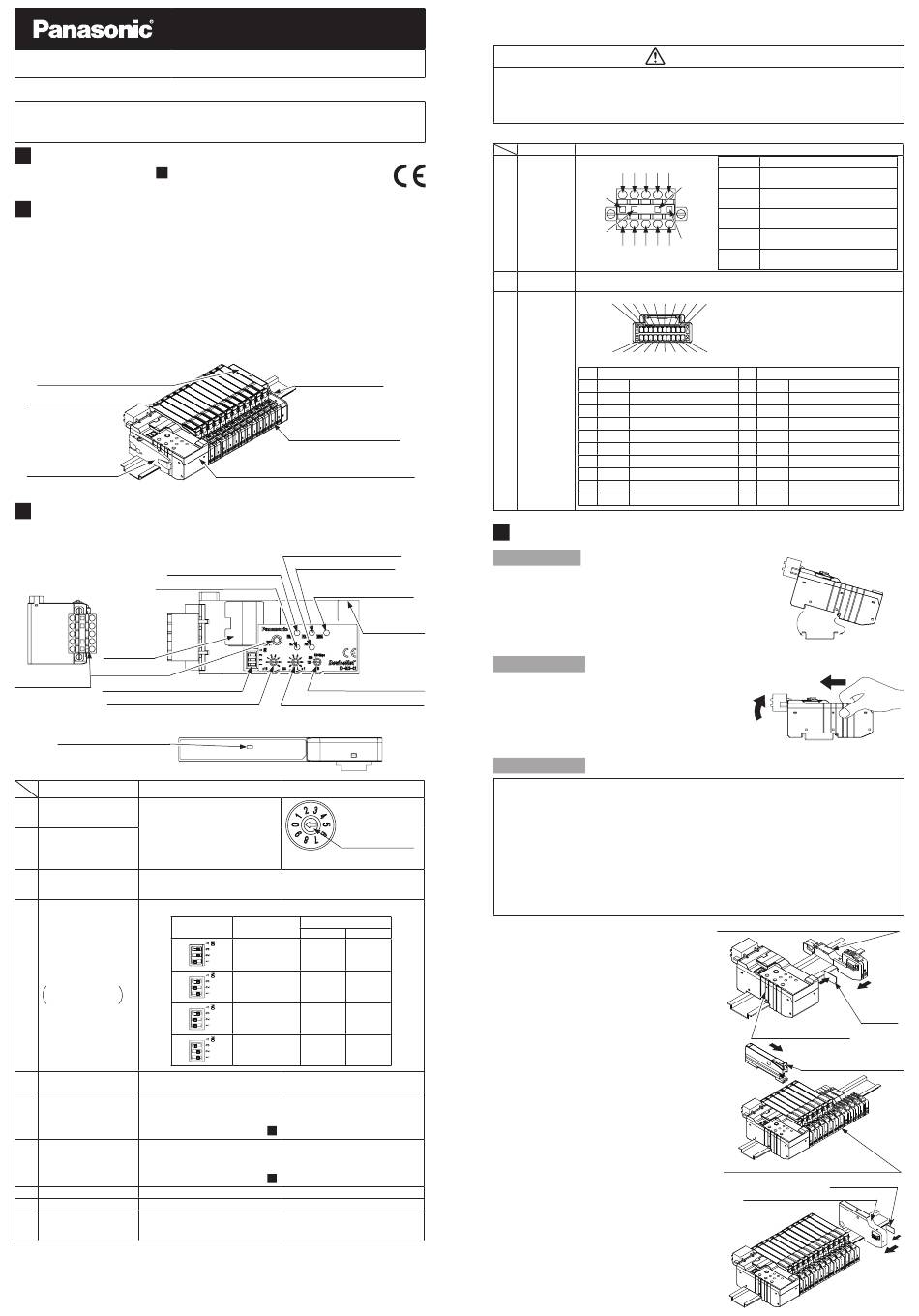

Panasonic SC-GU3-02 Instruction Manual

Communication Unit for DeviceNet SC-GU3-02
For details of the communication commands etc. of the communication unit for
DeviceNet SC-GU3-02, refer to "Product Specification" or "Communication
Command Specification."
1 CE MARKED PRODUCT
8
● The models listed under " SPECIFICATIONS" come with CE Marking.
As for all other models, please contact our office.
2 OUTLINE
● Communication unit SC-GU3-02 can output the output signal (in case of 2-out-
put type, only the output 1) of a sensor amplifier (NPN output type) that is con-
nectable to cascading connector unit SC-71 (optional), as the communication
data of DeviceNet.
● SC-GU3-02 enables to connect max. 16 units of sensor amplifier (FX-300 se-
ries or LS-400 series, etc.). In case of FX-500 series or LS-500 series, max.
12 units of sensor amplifier can be connected.
● This product can output all the output signals of the connected sensor amplifi-
ers to PLC (Programmable Logic Controller) etc. in one time.
● By using end unit SC-GU3-EU, settings and control of the connected optically com-
municationable sensor amplifier (FX-500 series or LS-500 series) can be done.
End unit SC-GU3-EU (Optional)
Sensor amplifier (Optional)
End plate MS-DIN-E
(Optional)
3 FUNCTIONAL DESCRIPTION
● Communication unit for DeviceNet SC-GU3-02
8. Power indicator (Green)
6. MS indicator (Green/Red)
15. parallel
output
connector
(with cover)
5. Setting extension key
11. Connector
for DeviceNet
4. Operation mode setting switch
1. Address setting switch (Tens digit)
● End unit SC-GU3-EU
8. Power indicator (Green)
Designation
Address setting switch
1 (Tens digit) (Note 3)
(Factory setting is 0)
To set address of DeviceNet.
Setting is possible in the range of 0
Address setting switch
to 63 (64 or more: Error)
2 (One digit) (Note 3)
(Factory setting is 1)
Baud rate setting switch
3 (Note 3) To set baud rate of DeviceNet(bps) from 125K, 250K or 500K
(Factory setting is 500kbps)
Data amount of I/O message can be changed by this setting.
DIP switch
Operation mode setting
switch (with cover)
4
Factory setting is
simple mode
Setting extension key Used for memory function (Note 1), teaching and light intensity adjustment
5
(Note 3) (Note 2). Also, used for canceling communication error.
Displays whether this product is operating properly or not
• Green LED lights up: Normal operation condition
6 MS indicator (Green/Red)
• Lights off: Power OFF
For the detail of the error, refer to "
Displays whether this product is communicating properly with DeviceNet or not
• Green LED lights up: Normal operation condition
7 NS indicator (Green/Red)
• Lights off: Power OFF
For the detail of the error, refer to "
8 Power indicator (Green) Lights up when power is ON.
9 ERR. indicator (Red) Blinks when an optical communication error occurs.
Lights up when using memory function.
Memory function
10 Blinks when connecting a sensor amplifier whose set contents are different
indicator (Yellow)
from the ones that are storing in this product.
Notes: 1) in case using the memory function, SC-GU3-EU is required. Refer to "Communication Command
Specification" for detail of memory function.
2) For the teaching and memory function, refer to "Communication Command Specification".
3) For changing the setting, use a flat-head screwdriver etc.
INSTRUCTION MANUAL
CMJE-SCGU302 No.0065-60V
End plate MS-DIN-E
(Optional)
Cascading connector unit
SC-71 (Optional)
Communication unit for DeviceNet SC-GU3-02
7. NS indicator (Green/Red)
9. ERR. indicator (Red)
10. Memory function
indicator (Yellow)
12. wire-saving
connector
3. Baud rate setting switch
2. Address setting switch (One digit)
Function
Setting direction of
switch
(Present setting is 0)
As for number displays on switches,
refer to each switch.
Occupied memory
Operation mode
IN OUT
Standard mode 3 byte 0 byte
Simple mode 10 byte 10 byte
Full mode 10 byte 44 byte
Minimum mode 2 byte 0 byte
ERROR INDICATOR".
7
7 ERROR INDICATOR".
Thank you very much for purchasing Panasonic products. Read this Instruction
Manual carefully and thoroughly for the correct and optimum use of this product.
Kindly keep this manual in a convenient place for quick reference.
● Never use this product in a device for personnel protection.
● In case of using devices for personnel protection, use products which meet
laws and standards, such as OSHA, ANSI or IEC etc., for personnel protec-
tion applicable in each region or country.
Designation
1 2 3 4 5
Black
Connector for
11
DeviceNet
Blue
1 2 3 4 5
Wire-saving
12 Connecting Wire-saving connector SC-71(optional) connected sensor amplifier.
connector
1 3 5 7 9 11
2 4 6 8 10 12
Description
1 Signal 0 Output info for 1ch amplifier
Parallel
output
2 Signal 1 Output info for 2ch amplifier
13
connector
3 Signal 2 Output info for 3ch amplifier
(with cover)
4 Signal 3 Output info for 4ch amplifier
5 Signal 4 Output info for 5ch amplifier
6 Signal 5 Output info for 6ch amplifier
7 Signal 6 Output info for 7ch amplifier
8 Signal 7 Output info for 8ch amplifier
9 Signal 8 Output info for 9ch amplifier
10 Signal 9 Output info for 10ch amplifier
MOUNTING AND CONNECTION
4
How to mount
1. Fit the rear part of the mounting sec-
tion of the unit on a DIN rail.
2. Press down the rear part of the mount-
ing section of the unit on the DIN rail
and fit the front part of the mounting
section to the DIN rail.
How to remove
1. Push the unit forward.
2. Lift up the front part of the unit to re-
move it.
Note: Take care that if the front part is lifted without push-
ing the unit forward, the hook on the rear portion of
the mounting section is likely to break.
How to connect
● Be sure that the power supply is OFF while adding / removing units.
● When the units are mounted in cascade, mount the end plates MS-DIN-E (optional)
at the both ends of the units to hold them between the flat sides of the plates.
● Up to maximum 16 sensor amplifiers can be connected in cascade. (In case of
FX-500 series or LS-500 series, up to maximum 12 sensor amplifiers can be
connected in cascade.)
● In case two different models of sensor amplifier are mounted in cascade, be
sure to mount identical models together.
● For the cautions of the sensor amplifiers, refer to the instruction manuals en-
closed with the amplifiers.
1. Mount communication unit
SC-GU3-02 on DIN rail.
When mounting, remove the end
connector cap which is attached to
the connector area.
2. Mount cascading connector unit SC-71
(optional) one by one on the DIN rail.
And slide them to side of SC-GU3-02.
3. Insert sensor amplifiers (optional) to
SC-71.
4. In case using end unit SC-GU3-EU
(optional) , mount SC-GU3-EU on
DIN rail. And slide it to side of the
sensor amplifiers.
Attach the end connector cap which
is removed in the step 1 to the con-
nector area for cascading of the last
unit.
WARNING
Function
Terminal No. Description
V- connecting terminal
1
(2 systems for cascade wiring)
White
CAN-L connecting terminal
2
(2 systems for cascade wiring)
Drain connecting terminal
3
(2 systems for cascade wiring)
CAN-H connecting terminal
4
Red
(2 systems for cascade wiring)
V+ connecting terminal
5
(2 systems for cascade wiring)
13 15 17 19 CN-M20-C2(optional)
For detail, refer to "product Specification"
or
<Recommended product>
Housing 503149-2000
Terminal 503429-0000 (AXG 26~30)
14 16 18 20
[ Molex, LLC ]
Description
11 Signal 10 Output info for 11ch amplifier
12 Signal 11 Output info for 12ch amplifier
13 Signal 12 Output info for 13ch amplifier
14 Signal 13 Output info for 14ch amplifier
15 Signal 14 Output info for 15ch amplifier
16 Signal 15 Output info for 16ch amplifier
17 Open Not used
18 Open Not used
19 V+ V+
20 V+ V+
2. Press down
35mm width DIN rail
1. Push forward
2. Lift up
Cascading connector unit SC-71 (Optional)
Communication unit for
DeviceNet SC-GU3-02
Slide
Sensor amplifier (Optional)
Cascading connector unit SC-71 (Optional)
End connector cap
End unit SC-GU3-EU (Optional)
1. Fit
Slide
End
connector
unit
Slide
