Audio Technica ATW-DA2214 User Manual

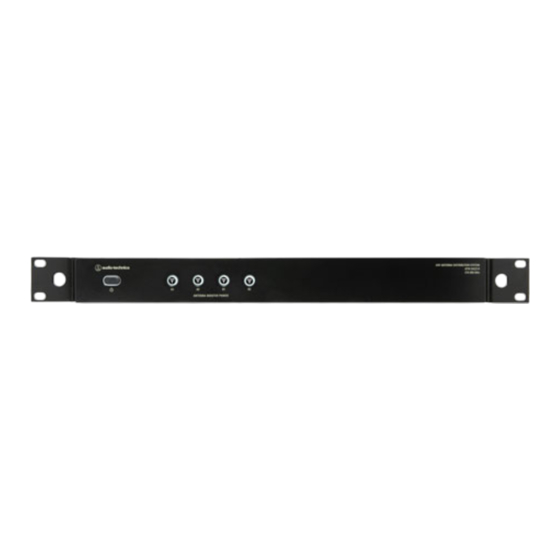

Part names and functions
A1 A2
ANTENNA BOOSTER POWER
①
③ ④ ⑤
①
Power button
Press to turn the power ON/OFF.
An indicator lights up when the power is ON.
②
Antenna power switch with indicator
By turning the antenna power switch ON.
12V DC can be supplied to the antenna input jacks
while the switch lights up.
③
Antenna B input jack
These are two antenna combination jacks for Channel B.
12V DC can be supplied from the antenna jacks.
④
Antenna B cascade output jack
This is a Channel B cascade output jack.
The signal with insertion loss compensation it can be
supplied to the antenna input jack of another
ATW-DA2214.
Specifications
Frequency range 470 to 990 MHz
Input/output ATW-DA2214 : 2 × 2 combination input, 2 × 4 distribution output, 2 × 1 cascade output
Input/output jack BNC
OIP3 +37dBm (typ.)
RF output gain +1.0 dB ± 2.0 dB
Input/output gain +1.0 dB ± 2.0 dB
Antenna input power supply 12 V DC, maximum 300 mA × 4
Power supply 100 to 240 V AC (50/60 Hz) to 18V DC 3.3 A (center positive) switched mode external power supply
Operating temperature range -5°C to 45°C (23°F to 113°F)
Dimensions 402 mm (15.83")×44.5 mm (1.75")×232 mm (9.13") (W×H×D) (excluding protrusions)
Weight 3.5 kg (7.7 lbs)
Accessories Rack-mount kit (rack-mount × 2, mounting screw × 6), BNC cable × 10, AC adapter
For product improvement, the product is subject to modification without notice.
Audio-Technica Corporation
2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan
www.audio-technica.com
©2019 Audio-Technica Corporation
Global Support Contact: www.at-globalsupport.com
UHF ANTENNA DISTRIBUTION SYSTEM
B1 B2
②
⑥ ⑦ ⑧
⑤
Antenna B output jack
These are four distribution output jacks of ATW-DA2214
for Channel B.
⑥
Antenna A input jack
These are two antenna combination jacks for Channel A.
12V DC can be supplied from the antenna jacks.
⑦
Antenna A cascade output jack
This is a Channel A cascade output jack.
The signal with insertion loss compensation it can be
supplied to the antenna input jack of another
ATW-DA2214.
⑧
Antenna A output jack
These are four distribution output jacks of ATW-DA2214
for Channel A.
⑨
Power input jack
Input jack for the AC adapter.
AUG-2019
ATW-DA2214
470-990 MHz
⑨
From No. ATGC-0220-19-WM
ATW-DA2214
UHF Antenna Distribution System
A1 A2 B1 B2
ANTENNA BOOSTER POWER
User Manual
UHF ANTENNA DISTRIBUTION SYSTEM
ATW-DA2214
470-990 MHz
