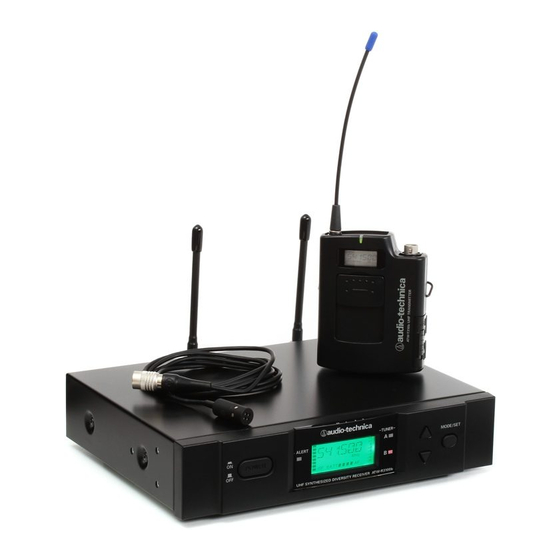

Audio Technica ATW-3110A Installation And Operation Manual
3000 series professional uhf wireless systems unipak transmitter system handheld dynamic microphone system handheld condenser microphone system
Hide thumbs
Also See for ATW-3110A:
- Installation and operation manual (125 pages) ,
- Specifications (2 pages)
Related Manuals for Audio Technica ATW-3110A
Summary of Contents for Audio Technica ATW-3110A
- Page 1 3000 Series Professional UHF Wireless Systems ATW-3110a UniPak ™ Transmitter System ATW-3141a Handheld Dynamic Microphone System ATW-3171a Handheld Condenser Microphone System Installation and Operation...
- Page 2 Professional UHF Wireless Systems Installation and Operation For simplicity, model numbers used throughout the manual will This device complies with part 15 of the FCC Rules. reference only the basic model number without the “C” or “D” Operation is subject to the condition that this device does band indications.
-
Page 3: Receiver Installation
Receiver Installation Antennas Location Attach the included pair of UHF antennas to the antenna input For best operation the receiver should be at least 3 ft. (1 m) jacks. The antennas are normally positioned in the shape of a above the ground and at least 3 ft. away from a wall or metal “V”... -
Page 4: Receiver Controls And Functions
Receiver Controls and Functions Front Panel Controls and Functions (Fig. B) Power On/Off 1. POWER SWITCH: Press Power switch in and the receiver To turn the receiver on, press in the Power switch. The Alert readouts will light. light and the LCD window will come on (about 1-2 seconds). The operating frequency will be displayed in the window after 2. - Page 5 Receiver Controls and Functions (Continued) When the Meter Hold is On, it is possible to reset it – to obtain When the receiver is in the Menu or Edit mode, its audio a new set of RF and AF readings – without turning it off-and-on output is silenced.
- Page 6 Transmitter Controls And Functions Refer to Figures E, F, G and H on pages 18 and 19 for an PWR.LOC Power is locked On as of the time “PWR.LOC” overview of transmitter features and controls. is applied. The Mute functioning is unaffected. Note: When in the PWR.LOC mode, the LCD Window transmitter may be turned off by: (1) Re-accessing...
- Page 7 Transmitter Controls And Functions (Continued) UniPak Transmitter Functions Function Menu Default Setting Choices (Edit) LM Wrap-around* (Transmitter powers-up at Frequency) LM Frequency Lowest in band 200 discrete frequencies † LM RF Power RF LOW RF LOW RF HI LM Audio Input Level +6 dB –6 dB 0 dB...
-
Page 8: Transmitter Setup
Transmitter Setup UniPak Transmitter Input Connection Battery Selection and Installation Connect an audio input device (microphone or guitar cable) to Each transmitter uses two 1.5V AA batteries, not included. the audio input jack on the bottom of the transmitter. A number Alkaline type is recommended. -
Page 9: System Operation
System Operation NOTES ON USING THE RECEIVER SCAN FEATURE: Switch on the receiver. Do not switch on the transmitter yet. • Selecting low power can be helpful for multiple system Selecting/Setting Frequency setup if you are experiencing problems with radio frequency Selection of the desired operating frequency is made through interference. - Page 10 System Operation (Continued) Set Transmitter Audio Input Level Transmitter On… ATW-T310 and ATW-T341 transmitters Turn on the transmitter by pressing and holding the A 4-position audio input gain setting, selected through the Power/Mute button (Fig. E/F) for a second or two, until the red function menu, serves to match the audio input level to the power indicator and the LCD window have come on.
-
Page 11: Specifications
Specifications † OVERALL SYSTEM ATW-T310 UNIPAK ™ TRANSMITTER UHF Operating Frequency RF Power Output High: 30 mW; Low: 10 mW, nominal Band C: 541.500 to 566.375 MHz Spurious Emissions Under federal regulations Band D: 655.500 to 680.375 MHz ≥110 dB, A-weighted Dynamic Range Number of Channels 200 total per band... - Page 12 Optional System Accessories WIRELESS ESSENTIALS ™ MICROPHONES AND CABLES RECEIVER ACCESSORIES All Wireless Essentials accessories are terminated for use with ATW-T310 AEW-DA550C UHF (540–565 MHz) active unity-gain antenna distribution and other UniPak ™ transmitters. system provides two “1-in, 4-out” RF channels; connects a AT829cW Miniature cardioid condenser lavalier microphone.
- Page 13 3000 Series UHF Wireless Operating Frequencies TV Ch. Band C: 541.500 - 566.375 MHz 541.500 541.625 541.750 541.875 542.000 542.125 542.250 542.375 542.500 542.625 542.750 542.875 543.000 543.125 543.250 543.375 543.500 543.625 543.750 543.875 544.000 544.125 544.250 544.375 544.500 544.625 544.750 544.875 545.000...
- Page 14 3000 Series Frequency Scan Groups for Band C & Band D Band C Band C Scan Group 1 Band C Scan Group 2 Band C Scan Group 3 TV Ch. Frequency – MHz TV Ch. Frequency – MHz TV Ch. Frequency – MHz (None) 541.500 541.500...
- Page 15 Ten Tips to Obtain the Best Results 1. Use only fresh alkaline batteries. Do not use “general 6. The receiver and transmitter must be set to the same purpose” (carbon-zinc) batteries. frequency. 2. Position the receiver so that it has the fewest possible 7.
-
Page 16: Troubleshooting Guide
Troubleshooting Guide Receiver is on (LCD window lights) Receiver is not on (LCD window does not light). • Distorted sound • Alert light is ON: • Receiver Power switch is not pressed in. “RF” and/or “AF” level meters may show good signals. •... - Page 17 Troubleshooting’s First Line of Defense: Factory-Default Settings Incorrect settings on the receiver and/or transmitter can make the wireless system’s operation seem poor, or even “dead.” To eliminate the possibility that incorrect function settings are the source of problems, restore both the receiver and the transmitter to their factory-default settings.
-
Page 18: Receiver Front Panel
Receiver Front Panel Figure B -TUNER- MODE/SET ALERT POWER UHF SYNTHESIZED DIVERSITY RECEIVER ATW-R3100 Receiver Rear Panel Figure C LEVEL ANT. B ANT. A GROUND AF OUT 12~18V AF OUT GROUND LIFT BALANCED UNBALANCED DC500 mA Receiver LCD Window UniPak Transmitter Figure D Figure E Band C: Blue... - Page 19 Opening Handheld Transmitter Handheld Transmitter Exterior Figure F Figure G Power/Mute Window Button Antenna Power-on Housing Handheld Transmitter Interior Figure H Up/Down Arrows Window Set Button Power-on Transmitter LCD Window Figure J Flashing EDIT MENU BATT BATT BATT MUTE MIC BATT J-2.
-
Page 20: Visit Our Website
One-Year Limited Warranty Audio-Technica professional wireless systems purchased in the U.S.A. are warranted for one year from date of purchase by Audio-Technica U.S., Inc. ( A. T .U.S.) to be free of defects in materials and workmanship. In event of such defect, product will be repaired promptly without charge or, at our option, replaced with a new product of equal or superior value if delivered to A.
