Configuration Note

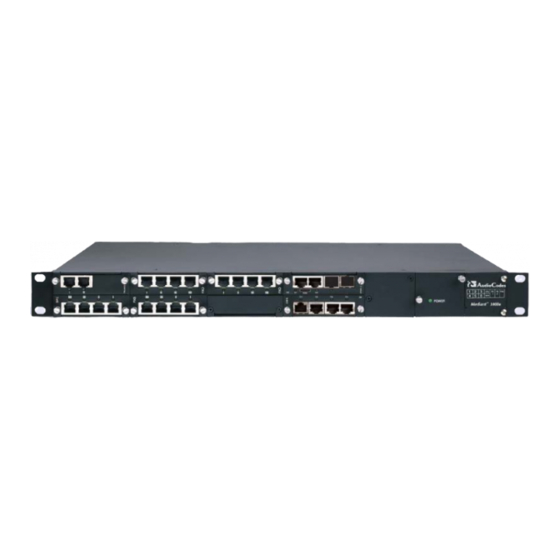

Mediant 1000B
VoIP Gateway and Avaya Aura Messaging
With Nortel CS1000 using T1 QSIG
Version 6.8

Advertisement

Table of Contents
loading

Related Manuals for AudioCodes Mediant 1000B

Summary of Contents for AudioCodes Mediant 1000B

  • Page 1 Configuration Note Mediant 1000B VoIP Gateway and Avaya Aura Messaging With Nortel CS1000 using T1 QSIG Version 6.8...

  • Page 3: Table Of Contents

    5.15 Step 13: Configure CNG Detector Mode ............... 31 5.16 Step 14: Add Internal DNS Table ................32 5.17 Step 15: Modify Parameters in the AdminPage ............ 33 5.18 Step 16: Reset the Mediant 1000B Gateway ............34 Avaya Aura Messaging Server Configuration ..........35 Troubleshooting ....................39 Configuring AudioCodes Gateway for Syslog Server ..........
  • Page 4 Avaya Aura Messaging & Nortel CS1000 This page is intentionally left blank. Configuration Note Document #: LTRT-12470...
  • Page 5 Notices Notice This document describes how to connect the AudioCodes Mediant 1000B Gateway with Avaya Aura Messaging Nortel Communication Server 1000 using T1 QSIG. Information contained in this document is believed to be accurate and reliable at the time of printing.
  • Page 6 Avaya Aura Messaging & Nortel CS1000 Documentation Feedback AudioCodes continually strives to produce high quality documentation. If you have any comments (suggestions or errors) regarding this document, please fill out the Documentation Feedback form on our Web site at http://www.audiocodes.com/downloads.

  • Page 7: Introduction

    Configuration Note 1. Introduction Introduction This document describes how to connect the AudioCodes Mediant 1000B Gateway with Avaya Aura Messaging Nortel Communication Server 1000 using T1 QSIG. Version 6.8 Mediant 1000B...
  • Page 8 Avaya Aura Messaging & Nortel CS1000 This page is intentionally left blank. Configuration Note Document #: LTRT-12470...

  • Page 9: Components Information

    Version 7.6 Telephony Signaling T1 QSIG Additional Notes None AudioCodes Gateway Gateway Vendor AudioCodes Model Mediant 1000B Software Version 6.80A.231.002 VoIP Protocol Additional Notes Note Avaya Aura Messaging Server Version Version Avaya Aura Messaging Server Release 6.3.x or later Version 6.8...
  • Page 10 Avaya Aura Messaging & Nortel CS1000 This page is intentionally left blank. Configuration Note Document #: LTRT-12470...

  • Page 11: Prerequisites

    Configuration Note 3. Prerequisites Prerequisites Gateway Prerequisites None PBX Prerequisites Refer to Section 4.1. Cabling Requirements Refer to Section 4.1. Version 6.8 Mediant 1000B...
  • Page 12 Avaya Aura Messaging & Nortel CS1000 This page is intentionally left blank. Configuration Note Document #: LTRT-12470...

  • Page 13: Pbx Setup Notes

    Configuration Note 4. PBX Setup Notes PBX Setup Notes PBX Configuration Configure the PBX as specified in Section 5 of the Avaya Aura Messaging PBX Configuration Note (cn88024 – Nortel M1 T1 QSIG.pdf) at https://downloads.avaya.com/elmodocs2/Octel/mm_r2_0/cn88024.pdf. Version 6.8 Mediant 1000B...
  • Page 14 Avaya Aura Messaging & Nortel CS1000 This page is intentionally left blank. Configuration Note Document #: LTRT-12470...

  • Page 15: Gateway Configuration

    Configuring the gateway via the Web interface – see Section 5.2 Configuring the ini File For initial setup and configuration, you can upload an ini file (*.ini) to the AudioCodes gateway that includes the template ini file settings shown in Appendix A.

  • Page 16: Step 1: Configure Ip Network Interfaces

    Avaya Aura Messaging & Nortel CS1000 Step 1: Configure IP Network Interfaces This step describes how to configure the IP network interfaces.  To configure the IP network interfaces: Open the IP Interfaces Table page (Configuration tab > VoIP > Network > IP Interfaces Table).

  • Page 17: Step 2: Configure Trunk Settings

    Open the 'Trunk Settings' page (Configuration tab > VoIP > PSTN > Trunk Settings). Figure 5-3: Trunk Settings Before you can modify parameters on this page, you need to click the Stop Trunk button to de-activate the trunk. Version 6.8 Mediant 1000B...
  • Page 18 Avaya Aura Messaging & Nortel CS1000 Configure the relevant values to your setup for the following: • Protocol Type • Framing Method • Transfer Mode After you configure the parameters, click the Apply Trunk Settings button, and then wait for the trunk settings to be applied. Once the trunk settings are applied, the trunk status icons at the top of the page change to green for all trunks that are connected to the PBX.

  • Page 19: Step 3: Configure Tdm Bus Settings

    Open the 'TDM Bus Settings' page (Configuration tab > VoIP > TDM > TDM Bus Settings). Figure 5-4: TDM Bus Settings From the ‘PCM Law Select’ drop-down list, select ‘MuLaw’. From the ‘TDM Bus Clock Source’ drop-down list, select ‘Network’. Click Submit. Version 6.8 Mediant 1000B...

  • Page 20: Step 4: Configure The Sip Environment

    Avaya Aura Messaging & Nortel CS1000 Step 4: Configure the SIP Environment This step describes how to configure the SIP environment.  To configure the SIP environment: Open the 'SIP General Parameters' page (Configuration tab > VoIP > SIP Definition >...

  • Page 21: Step 5: Configure Srtp

    To configure SIP over TLS without SRTP: From the 'Media Security' drop-down list, select Disabled. From the 'Media Security Behavior' drop-down list, select Mandatory. From the "Encryption On Transmitted RTCP Packets" drop-down list, select Inactive. Click Submit. Version 6.8 Mediant 1000B...

  • Page 22: Step 6: Configure Trunk Group

    Avaya Aura Messaging & Nortel CS1000 Step 6: Configure Trunk Group This step describes how to configure the Trunk group.  To configure the Trunk group: Open the 'Trunk Group Table' page (Configuration Tab: VoIP > GW and IP to IP > Trunk Group >...

  • Page 23: Step 7: Configure Sip Environment And Gateway Name

    In the ‘Proxy Address’ field, enter either the IP address or FQDN of the Avaya Aura Messaging (AAM). If your Avaya Aura Messaging system includes multiple AAM’s, then enter multiple IP addresses or FQDNs for the MAS’s - one AAM per table row. It is recommended that you use FQDNs. Version 6.8 Mediant 1000B...
  • Page 24 Avaya Aura Messaging & Nortel CS1000 From the ‘Transport Type’ drop-down list, select the transport type for each AAM. Figure 5-10: Proxy Address and Transport Type Note: When not configured, the value of the ‘SIPTransportType‘ parameter is used. If your Avaya Aura Messaging System includes multiple AAM’s, from the ‘Proxy Load Balancing Method’...
  • Page 25 Configuration Note 5. Gateway Configuration Figure 5-12: Add IP Group 1 Click Submit. Version 6.8 Mediant 1000B...

  • Page 26: Step 8: Configure Routing

    Avaya Aura Messaging & Nortel CS1000 5.10 Step 8: Configure Routing This step describes how to configure routing.  To configure routing: Open the 'Outbound IP Routing Table' page (Configuration tab > VoIP > GW and IP to IP > Routing > Tel to IP Routing). Configure routing from PBX (Tel) to IP.

  • Page 27: Step 9: Configure Coders

    Open the 'Coders Table' page (Configuration tab > VoIP > Coders and Profiles > Coders). Figure 5-15: Coders Table From the 'Coder Name' drop-down list, select G.711U-law. Note: Configure the Coders table to contain only G.711U-law. Click Submit. Version 6.8 Mediant 1000B...

  • Page 28: Step 10: Configure Digit Collection

    Avaya Aura Messaging & Nortel CS1000 5.12 Step 10: Configure Digit Collection This step describes how to configure Digit Collection.  To configure digit collection: Open the 'DTMF & Dialing' page (Configuration Tab: VoIP > GW and IP to IP > DTMF and Supplementary >...

  • Page 29: Step 11: Configure General Settings

     To configure General settings: Open the 'Advanced Parameters' page (Configuration tab > VoIP > SIP Definitions > Advanced Parameters). Figure 5-17: General Settings From the ‘Disconnect on Broken Connection’ drop-down list, select ‘No’. Click Submit. Version 6.8 Mediant 1000B...

  • Page 30: Step 12: Configure Voice Mail Settings

    Avaya Aura Messaging & Nortel CS1000 5.14 Step 12: Configure Voice Mail Settings This step describes how to configure Voice Mail settings.  To configure Voice Mail Settings: Open the 'Voice Mail Settings' page (Configuration Tab: VoIP > Services > Voice Mail Settings).

  • Page 31: Step 13: Configure Cng Detector Mode

    This step describes how to configure CNG Detector Mode.  To configure CNG Detector Mode: Open the 'Fax/Modem/CID Settings' page (Configuration Tab: VoIP > Media > Fax/Modem/CID Settings). Figure 5-19: General Settings From the ‘CNG Detector Mode’ drop-down list, select ‘Disable’. Click Submit. Version 6.8 Mediant 1000B...

  • Page 32: Step 14: Add Internal Dns Table

    Avaya Aura Messaging & Nortel CS1000 5.16 Step 14: Add Internal DNS Table This step describes how to add an internal DNS table.  To add an internal DNS Table: Open the 'Internal DNS Table' page (Configuration Tab: VoIP > Network > DNS > Internal DNS Table).

  • Page 33: Step 15: Modify Parameters In The Adminpage

    In the Output Window, confirm that all the fields have been correctly updated. Repeat Steps 3 to 5 for the following Parameter Names and appropriate Enter Values. • ECNLPMode: “1” • EnableMWI: “1” • SubscriptionMode: “1” Figure 5-21: AdminPage Version 6.8 Mediant 1000B...

  • Page 34: Step 16: Reset The Mediant 1000B Gateway

    5.18 Step 16: Reset the Mediant 1000B Gateway This step describes how to reset the Mediant 1000B gateway. After you have completed the gateway configuration as described in the steps above, burn the configuration to the gateway’s flash memory and reset the gateway.

  • Page 35: Avaya Aura Messaging Server Configuration

    The following describes how to configure the Avaya Aura Messaging Server with the AudioCodes' gateway.  To configure the Avaya Aura Messaging Server with the AudioCodes' gateway: Log in to the Storage server Messaging SMI page. Navigate to the Telephony Domain Administration page.
  • Page 36 Avaya Aura Messaging & Nortel CS1000 Log in to the Messaging Application server Messaging SMI page. Figure 6-2: Avaya – Telephony Domain Administration Example Select the Telephony Integration page. Verify that the Switch Integration Type is set to 'SIP'. Verify that the TCP port defaults to 5060. Verify that the TLS port defaults to 5061.
  • Page 37 Configuration Note 6. Avaya Aura Messaging Server Configuration Figure 6-3: Avaya – Telephony Integration and Networked Server Example Version 6.8 Mediant 1000B...
  • Page 38 Avaya Aura Messaging & Nortel CS1000 This page is intentionally left blank. Configuration Note Document #: LTRT-12470...

  • Page 39: Troubleshooting

    The tools used for debugging include network sniffer applications (such as Wireshark) and AudioCodes' Syslog server application. Configuring AudioCodes Gateway for Syslog Server The Syslog client, embedded in the AudioCodes gateway sends error reports/events generated by the gateway application to a Syslog server, using IP/UDP protocol. ...
  • Page 40 AudioCodes has also developed the following advanced diagnostic tools for high-level troubleshooting:  PSTN Trace: used for monitoring and tracing PSTN elements (E1/T1) in AudioCodes digital gateways (Mediant 1000). These utilities are designed to convert PSTN trace binary files into textual form.

  • Page 41: A Audiocodes Ini File

    Configuration Note A. AudioCodes ini File AudioCodes ini File The ini configuration file of the Mediant 1000B, corresponding to the existing customer configuration, is shown below: Note: To load and save an ini file, use the Configuration File page (Maintenance tab >...
  • Page 42 Avaya Aura Messaging & Nortel CS1000 SyslogServerIP = 155.168.209.142 EnableSyslog = 1 ;NTPServerIP_abs is hidden but has non-default value NTPServerUTCOffset = -18000 ENABLEPARAMETERSMONITORING = 1 ActivityListToLog = 'pvc', 'spc' DebugRecordingDestIP = 155.168.209.142 ;VpFileLastUpdateTime is hidden but has non-default value DebugRecordingStatus = 0 NTPServerIP = '135.203.69.232' [BSP Params] PCMLawSelect = 3...
  • Page 43 Configuration Note A. AudioCodes ini File ISDNNSBehaviour2 = 0 [Voice Engine Params] ECNLPMode = 1 BrokenConnectionEventTimeout = 100 FaxTransportMode = 0 V22ModemTransportType = 0 V23ModemTransportType = 0 V32ModemTransportType = 0 V34ModemTransportType = 0 RFC2833TxPayloadType = 127 RFC2833RxPayloadType = 127 EnableDSPIPMDetectors = 1...
  • Page 44 Avaya Aura Messaging & Nortel CS1000 ;SHOULDREGISTER is hidden but has non-default value DISCONNECTONBROKENCONNECTION = 0 CDRSYSLOGSERVERIP = 0.0.0.0 ENABLEMWI = 1 PSTNALERTTIMEOUT = 180 ISFAXUSED = 1 TRUNKTRANSFERMODE = 4 VoiceMailInterface = 3 SUBSCRIPTIONMODE = 1 SIPTRANSPORTTYPE = 1 PROGRESSINDICATOR2ISDN = -1 LOCALISDNRBSOURCE = 0 ISDNTRANSFERCAPABILITY = -1...
  • Page 45 Configuration Note A. AudioCodes ini File FORMAT EtherGroupTable_Index = EtherGroupTable_Group, EtherGroupTable_Mode, EtherGroupTable_Member1, EtherGroupTable_Member2; EtherGroupTable 0 = "GROUP_1", 1, "GE_0_1", ""; EtherGroupTable 1 = "GROUP_2", 0, "", ""; [ \EtherGroupTable ] [ DeviceTable ] FORMAT DeviceTable_Index = DeviceTable_VlanID, DeviceTable_UnderlyingInterface, DeviceTable_DeviceName; DeviceTable 0 = 1, "GROUP_1", "vlan 1";...
  • Page 46 Avaya Aura Messaging & Nortel CS1000 [ \CpMediaRealm ] [ PREFIX ] FORMAT PREFIX_Index = PREFIX_RouteName, PREFIX_DestinationPrefix, PREFIX_DestAddress, PREFIX_SourcePrefix, PREFIX_ProfileId, PREFIX_MeteringCode, PREFIX_DestPort, PREFIX_SrcIPGroupID, PREFIX_DestHostPrefix, PREFIX_DestIPGroupID, PREFIX_SrcHostPrefix, PREFIX_TransportType, PREFIX_SrcTrunkGroupID, PREFIX_DestSRD, PREFIX_CostGroup, PREFIX_ForkingGroup, PREFIX_CallSetupRulesSetId; PREFIX 0 = "", "*", "", "*", 0, 255, 0, -1, "", 1, "", -1, -1, -1, "", -1, -1;...
  • Page 47 Configuration Note A. AudioCodes ini File FORMAT NumberMapTel2Ip_Index = NumberMapTel2Ip_ManipulationName, NumberMapTel2Ip_DestinationPrefix, NumberMapTel2Ip_SourcePrefix, NumberMapTel2Ip_NumberType, NumberMapTel2Ip_NumberPlan, NumberMapTel2Ip_RemoveFromLeft, NumberMapTel2Ip_RemoveFromRight, NumberMapTel2Ip_LeaveFromRight, NumberMapTel2Ip_Prefix2Add, NumberMapTel2Ip_Suffix2Add, NumberMapTel2Ip_IsPresentationRestricted, NumberMapTel2Ip_SrcTrunkGroupID, NumberMapTel2Ip_SrcIPGroupID, NumberMapTel2Ip_DestIPGroupID; NumberMapTel2Ip 1 = "", "*", "*", 255, 255, 0, 0, 255, "", "", 255, 1, -1, -1;...
  • Page 48 Avaya Aura Messaging & Nortel CS1000 FORMAT Dns2Ip_Index = Dns2Ip_DomainName, Dns2Ip_FirstIpAddress, Dns2Ip_SecondIpAddress, Dns2Ip_ThirdIpAddress, Dns2Ip_FourthIpAddress; Dns2Ip 0 = "anonymous.invalid", 130.5.175.60, 0.0.0.0, 0.0.0.0, 0.0.0.0; Dns2Ip 1 = "itservices.sbc.com", 130.5.175.60, 0.0.0.0, 0.0.0.0, 0.0.0.0; [ \Dns2Ip ] [ ProxyIp ] ; ** NOTE: Changes were made to active configuration. ;...
  • Page 49 Configuration Note A. AudioCodes ini File ProxySet_ProxyRedundancyMode, ProxySet_DNSResolveMethod, ProxySet_KeepAliveFailureResp; ProxySet 1 = "", 0, 60, 0, 0, 0, 0, "-1", -1, -1, ""; [ \ProxySet ] [ IPGroup ] FORMAT IPGroup_Index = IPGroup_Type, IPGroup_Description, IPGroup_ProxySetId, IPGroup_SIPGroupName, IPGroup_ContactUser, IPGroup_EnableSurvivability, IPGroup_ServingIPGroup, IPGroup_SipReRoutingMode, IPGroup_AlwaysUseRouteTable,...
  • Page 50 Avaya Aura Messaging & Nortel CS1000 FORMAT RoutingRuleGroups_Index = RoutingRuleGroups_LCREnable, RoutingRuleGroups_LCRAverageCallLength, RoutingRuleGroups_LCRDefaultCost; RoutingRuleGroups 0 = 0, 0, 1; [ \RoutingRuleGroups ] [ LoggingFilters ] FORMAT LoggingFilters_Index = LoggingFilters_FilterType, LoggingFilters_Value, LoggingFilters_Syslog, LoggingFilters_CaptureType; LoggingFilters 1 = 2, "1", -1, 4; LoggingFilters 2 = 2, "1", -1, 3; LoggingFilters 3 = 12, "7060", -1, 3;...
