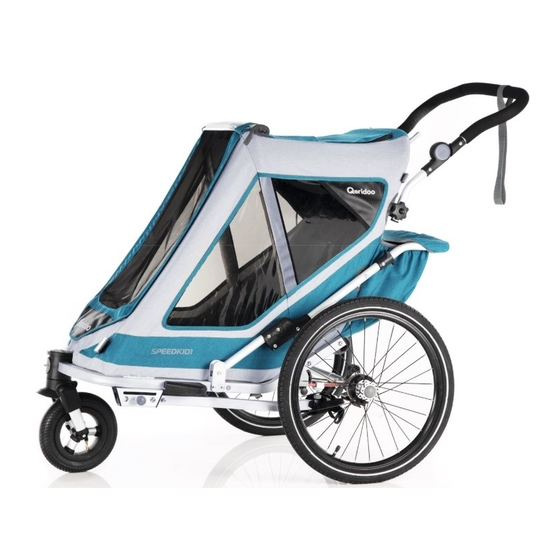

- Page 1 U��� M����� Q1-20-P Q2-20-P Q2P-20-LP Speedkid1 2020 Speedkid2 2020 This product fulfils all safety requirements of the European standard for bicycles and bicycle trailers (DIN EN 15918).
- Page 2 When necessary, individual items of information can be changed quickly and without special notification. This documentation can be ordered from Qeridoo GmbH in other languages, or is available for download on our website if already available. Visit us at: www.qeridoo.de Copyright All rights to the documentation remain with Qeridoo GmbH.
-
Page 3: Table Of Contents
Content Introduction Using the beverage holders Embarking the children Proper use Preparing the cabin Performance limits Placing the children Size Fastening in a child Notes on the user manual Middle sitting position (Speedkid2) Deviation of the colours Checking the weight distribution and Safety instructions tow bar load Checking the tow bar load... -
Page 4: Introduction
Introduction Proper use Speedkid was designed as a bicycle trailer and comes with an additional buggy, walker and jogger function. For Trailer mode, use a tow bar with coupler to connect the trailer to a suitable towing vehicle (bicycle or motorised pedelec with a maximum speed of 25 km/h). With the buggy wheel attached, the Speedkid can be used as a child carrier in Buggy mode. -
Page 5: Size
Introduction Size Children may be transported up to a maximum size from 116,5 cm. The following additional restrictions apply to Trailer mode: Requirements for the tow bar Speedkid1 and Speedkid2 Zulässiger Stützlastbereich (am Deichselkopf) 0 – 8 kg Minimale Umgebungstemperatur -10° C Requirements for the towing vehicle Speedkid1 and Speedkid2 Bicycle, pedelec/E-Bike Vehicle type... -
Page 6: Safety Instructions
Safety instructions Danger! Read the safely instructions below carefully. The safety and accident prevention regulations valid in your region and statutory rules such as the road traffic regulations also apply, and take precedence in cases where there is doubt. Make sure that the Speedkid is used only by persons suitable for its operation, as defined below. -
Page 7: Passenger
„Care and maintenance“ on page 29. Install and use only original accessories and spare parts manufactured or recommended by » Qeridoo. Using other products relieves the manufacturer of liability. Only carry out structural modifications or extensions to the vehicle which are necessary »... -
Page 8: Cycling With A Trailer
Safety instructions Cycling with a trailer The way in which the bicycle moves changes significantly when it is pulling a trailer, and this is particularly noticeable when braking and cornering. With regard to this, pay attention to the following: Practice cycling with the trailer before going out onto the road. »... -
Page 9: Product Overview
Product overview Scope of delivery Cabin with seats and Multiwheel buggy wheel 5-point safety harnesses Pennant with 2-part pennant staff Push handle with hand strap and and centre piece parking Wheel guard (2x) Backlight (StVZO compliant) 2 wheels Tow bar with coupler and retaining strap Optional head rests The scope of delivery includes some functional units of the... -
Page 10: Components And Control Elements
Product overview Components and control elements Side view Cabin (frame made from aluminium tubes 20" wheel with push-in axle with weatherproof fabric cover) Reflector strip 2-in-1 canopy to protect against insects and splashing water, can be rolled up Tow bar for Trailer mode Stowable sun visor Tow bar holder Panorama roof with ventilation... -
Page 11: Rear View
Product overview Components and operating elements Rear view Star grip screw with tube clamp for Rubber cap for push-in axle release securing the push handle when mounting the wheels Variable-height push handle with head Wheel guard for deflecting protector function, roll-over protection obstacles Pushbutton for adjusting the height of 2 pouches for small items in the... -
Page 12: Assembly
» operation on the Internet. You can find our video tutorials on our YouTube channel www.youtube. » com/user/Qeridoo Danger! Never perform assembly work if there are children in the cabin. Keep children away from the vehicle during assembly. When handling moving components, make sure that your hands or fingers do not get trapped. -
Page 13: Inserting The Wheels
Assembly Inserting the wheels Remove the black rubber caps from the ends of the thru-axles and then dispose of them. » Lift the cabin a little bit in order to install the wheel easier. » Insert one wheel into the cabin’s axle retainer: »... -
Page 14: Mounting The Push Handle
Assembly Mounting the push handle The push handle is height adjustable and can be used to push, pull and manoeuvre your Speedkid. When folded, the push handle offers rollover protection and continues to function as a head protector. Prepare the push handle by fully unfolding it. To do »... -
Page 15: Inserting The Pennant
Assembly Inserting the pennant Danger! The pennant must always be mounted in Trailer mode. Otherwise the very low Speedkid is too easily not seen by other road users. For safety reasons, we recommend putting the pennant into the pennant pouch so that it is easily visible before every journey, including in Buggy or Walker mode. -
Page 16: Mounting The Tow Bar
Assembly Mounting the tow bar You only require the tow bar in Trailer mode. It is used to hook up the Kidgoo behind a bicycle equipped with a suitable coupler, see Connecting the trailer to a bicycle on page 24. The tow bar is attached to the tow bar mount using a locking bolt and can be used in two different positions: Attachment position: The tow bar is facing forwards. - Page 17 The provided universal coupler is suitable for mounting on the most rear-wheel models. If it does not fit your bicycle, find a suitable adapter and special couplers in our manuals on the following website: www.qeridoo.de/kupplungsleitfaden Caution! Do not use a tool which was previously in contact with conventional steel. Smallest steel particles could be transferred that could lead to contact corrosion.
-
Page 18: Installing The Rear Light
Assembly Installing the rear light In trailer mode, a certified rear light must be used during poor visibility or darkness in accordance with the Road Traffic Licensing Requirements. Move the push handle to the highest position. » Mount the rear light on the left side between the star »... -
Page 19: Utilisation
Utilisation Applying the hand parking brake Danger! Always secure the Speedkid when stationary against rolling away by applying the parking brake. Also remember to release it in good time before driving off. Stand behind the cabin. » Push the hand parking brake lever down. »... -
Page 20: Adjusting The Buggy Wheel
Utilisation The table below shows the main settings that you must make for particular components for the respective mode: Status of the components in mode Component Trailer Buggy Walker must be completely fitted fitted Buggy-wheel removed (freely rotating) (fixed) directed forwards Tow bar (pay attention to tow directed backwards... -
Page 21: Setting The Wheel So That It Turns Freely (Buggy Mode)
Utilisation Setting the wheel so that it turns freely (Buggy mode) It must be possible for the wheel to move freely through 360 ° in order to manoeuvre in Buggy mode. Push up the mode switch to release the wheel. »... -
Page 22: Embarking The Children
Utilisation Embarking the children Preparing the cabin Apply the hand parking brake to secure the Speedkid in order to prevent it from rolling away. » Open the 2-in-1 cover completely. » Adjust the safety harnesses to the number of children, see Middle Sitting Position on page 22. »... -
Page 23: Middle Sitting Position (Speedkid2)
Utilisation Insert the tabs into the belt buckle until they click audibly. » Check that all parts of the 5-point safety harness fit properly and comfortably. » Close the small locks to fix the belt pads if the belt pads of the 5-point safety belts are too »... -
Page 24: Checking The Weight Distribution And Tow Bar Load
Utilisation Checking the weight distribution and tow bar load An optimum weight distribution is important for safe handling: The load’s centre of gravity should always lie in the centre of the wheel axle. The tow bar load with which the tow bar lies on the coupler must be neither too great nor too low in Trailer mode: Tow bar load too great (>... -
Page 25: Connecting The Trailer To A Bicycle
Utilisation Connecting the trailer to a bicycle Danger! Do not connect the Speedkid to a bicycle until the following conditions have been fulfilled: The trailer is fully loaded. » The children wear a bicycle helmet or use a head rest and are properly belted. »... -
Page 26: Decoupling The Trailer
Utilisation Decoupling the trailer Loosen the safety strap and wrap it around the tow bar. Fix the safety strap to the tow bar » using the clamping buckle. Remove the cotter pin from the coupling and pull the tow bar head out of the coupling. »... -
Page 27: Using The Panorama Roof
Utilisation Closing the ventilation window: Release the top Velcro fastener to release the cover. » Close the cover with the bottom Velcro fastener. » Danger! Open the ventilation window on hot days or in heavy traffic in order to dissipate warm air and exhaust fumes out of the cabin more quickly. -
Page 28: Storage
Utilisation To move the clamp on the leaf spring sheets, loose the knurled screw in order. » Move the clamp with the knurled screw according to » the following instructions: – Move the clamp all the way to the front when you carry a very light child and little luggage (soft suspension). -
Page 29: Care And Maintenance
Care and maintenance Caution! Despite the use of weather proof material, the corrosion cannot be completely eliminated. De-icing salts such as magnesium chloride can lead to stress corrosion cracking on the components. In winter or in case of rain, it is also recommended to clean the trailer after each ride with a dry cloth. -
Page 30: After Every Use
The storage location should be dry, well ventilated and protected against direct sunlight. » At higher storage temperatures, you should store the wheels separately from the cabin » because the tyres’ rubber can cause odours. Use a Qeridoo folding garage if the Speedkid must be kept outdoors. » Caution! Please note that when using the optional folding garage the trailer must be completely dry. -
Page 31: Monthly (Or Every 200 Km)
Care and maintenance Monthly (or every 200 km) Check the textile cover, all fasteners, the seats and the safety harnesses for cracks, wear and » missing parts. Inspect all frame tubes and all connecting pieces and fastening components for signs of »... -
Page 32: Appendix
Appendix Technical data External dimensions Speedkid1 Speedkid2 Length (Trailer mode) 150 cm 150 cm Width (external width from wheel to wheel) 77 cm 87 cm Height (from ground to cabin roof) 95 cm 95 cm Height of push handle 90 cm / 116,5 cm 90 cm / 116,5 cm (lowest / highest set dimension) Pack size of the collapsed cabin 30 x 72 x 86,5 cm 30 x 82 x 86,5 cm... -
Page 33: Warranty Terms
Warranty terms Exclusive manufacturer warranty Qeridoo guarantees to the end customer that the product is free of defects for a period of 2 years. In addition, Qeridoo offers the extended warranty on the frame for 5 years. The warranty is independent of the statutory warranty and is not affected by this. -
Page 34: Support-Informationen
Appendix Tip! You can easily register a warranty case online (service.qeridoo.de) that guarantees you easy processing. With your complaint, please provide an exact description of the fault (if possible with photos) and a copy of the original purchase receipt. Please also state the vehicle’s serial number. -
Page 35: Spare Parts
Appendix Spare parts (valid from 2020) Frame components Pos. Article Article No. Speedkid1 Article no. Speedkid2 Inner room tube Speedkid2 Ø22x90° KPNS-19-SET KPNS-19-SET Handlebar set 2020 (grey) HGSK1-20-SET HGSK2-20-SET Handlebar set 2020 (petrol) HGSK1-P-20-SET HGSK2-P-20-SET Upper tube folding mechanism Ø22 set 2020 Y-IRRSK1-22x90-20 Y-IRRSK2-22x90-20 Axle for Speedkid2 2020... -
Page 36: Checking The Tow Bar Load
Appendix Other spare parts Locking button tow bar Belt padding with velcro set mount 2019 (grey) 2020 Art.-No.: Z-VKDA-19 Art.-No.: GPMK-20-SET Locking button tow bar Harness buckle mount 2020 (petrol) Art.-No.: GRT-899 Art.-No.: Z-VKDA-20 Star knob for handle bar Crotch padding 2020 2017 Art.-No.: Z-SCHPO-20... - Page 37 Notes Speedkid 2020 Subject to change without notice. – 07|2020 – 37...
- Page 38 Notes 38 – 07|2020 – Subject to change without notice. Speedkid 2020...
- Page 39 Notes Speedkid 2020 Subject to change without notice. – 07|2020 – 39...
- Page 40 Speedkid 2020 Industriepark Nord 100 Ⅰ 53567 Buchholz Tel +49 (0) 2683 9466577 Ⅰ info@qeridoo.de www.qeridoo.de...
