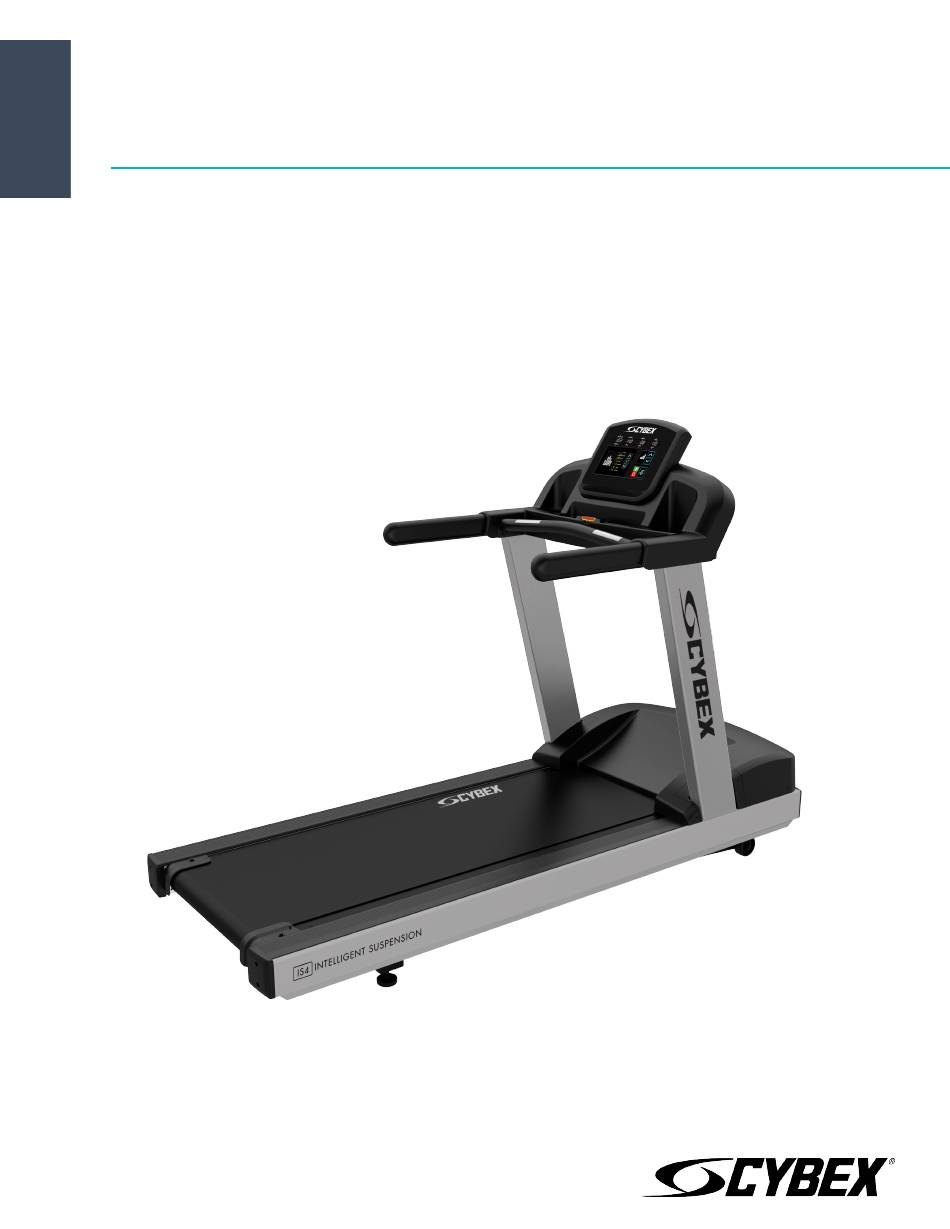

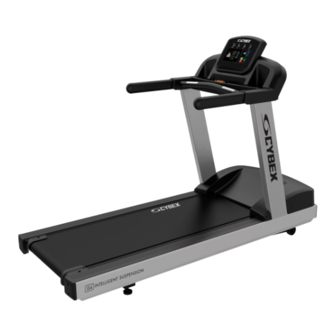

- Page 1 Cybex - V Series Treadmill Assembly Instructions Part Number 1008693-0001 AA...
- Page 3 User and Service Documents Link Operation Manuals and other Product Information available at https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents Trobareu el manual de funcionament i altra informació de producte a https://www.lftechsupport.com/web/document-library/documents Mae Llawlyfrau Gweithredu a Gwybodaeth Arall am Beiriannau ar gael yn https://www.lftechsupport.com/web/document-library/documents Die Betriebsanleitung und andere Produktinformationen erhalten Sie unter https://www.lftechsupport.com/web/document-library/documents...
-
Page 4: Table Of Contents
Cybex logo are registered trademarks of Cybex International, Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes. -
Page 5: Getting Started
Safety Instructions Read all instructions before use. Warning: Health-related injuries may result from incorrect or excessive use of exercise equipment. Cybex International, Inc. STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program, particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high cholesterol, is obese, or has not exercised regularly in the past year. - Page 6 Warning labels are shipped with every product and should be installed before product is used. Cybex International, Inc. is not responsible for missing or damaged warning labels. • Health and Environmental Regulations Warning - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
-
Page 7: Consignés De Sécurité
Lisez les instructions d'assemblage avant toute utilisation. • Ne faites jamais fonctionner d’appareil Cybex International, Inc. dont la fiche ou le cordon d'alimentation sont altérés, ni aucun appareil qui serait tombé, aurait été endommagé ou même partiellement plongé dans l'eau. - Page 8 • Si certaines étiquettes d’avertissement sont manquantes ou endommagées, contactez Cybex International, Inc. immédiatement. Nous vous en fournirons de nouvelles. Les étiquettes d’avertissement sont expédiées avec les appareils et doivent être installées avant utilisation de ces derniers. Cybex International, Inc. n'est pas responsable des étiquettes manquantes ou endommagées.
-
Page 9: Set-Up
Set-Up Read the entire manual before setting up the treadmill. Place the treadmill where it will be used before beginning the setup procedure. Electrical Power Requirements The treadmill requires a dedicated* line with isolated neutral according to the electrical configurations listed in the chart below. - Page 10 How to Position and Stabilize the Treadmill Follow all safety instructions. Move the treadmill to the location in which it will be used. Note: See How to Adjust and Tension the Striding Belt to center the striding belt. Safety Clearances The following information is supplied as regional reference data regarding safety clearances around the exterior of the treadmill.
- Page 11 Item Description Jam Nut Stabilizing Leg Note: Stabilize the treadmill each time the unit is relocated. Note: It is extremely important that the stabilizing leg be correctly adjusted for proper operation. An unbalanced unit may cause striding belt misalignment. A bubble level is recommended to ensure proper leveling.
- Page 12 Power Cord Routing Warning: Make sure the power cord is unplugged before attempting to route it around or through the treadmill. Connect the power cord to the power receptacle in the front of the treadmill. The power cord can be run to the user-front left or right sides depending on installation / site needs.
-
Page 13: Product Overview
Product Overview Product Features Item Description Console Cup Holders Emergency Stop Lanyard Contact Heart Rate Sensors Handrails Striding Belt Mounting and Dismounting the Treadmill Use the handrails to enhance stability when mounting or dismounting a treadmill. Never mount or dismount the treadmill while the running belt is moving. -
Page 14: Using And Testing The Emergency Stop System
Using and Testing the Emergency Stop System The treadmill is equipped with an Emergency Stop System. The system consists of a rectangular stop magnet (located on the upper bridge plastic) attached to a safety stop pull cord. Before starting a workout, attach the lanyard on the safety stop pull cord to an item of the user's clothing. During a workout, pull the cord to remove the magnet from the bridge. -
Page 15: Assembly
Assembly Component and Hardware List Components Item Description Left Upright Right Upright Ergo™ Front Crossbar Upper Dashboard Tray Lower Dashboard Tray Console End Cap Front End Cap Rear Bridge Console Ergo™ Bar Backing Plate Cable Tie Hardware Item Description Bolt, 3/8 x 5” Hex Head Washer, 3/8”... -
Page 16: Tools Required
Tools Required • Phillips screwdriver • 9/16" Wrench (2) • 9/16" Socket 3/8" Drive • 13 mm Socket • 13 mm Wrench • 3" Extension 3/8" Drive • 3/8” Drive ratchet Remove Motor Cover 1. Remove screws securing motor cover to base assembly using a Phillips screwdriver. Item Description Motor Cover... -
Page 17: Install Uprights
Install Uprights 1. Place uprights on base assembly. 2. Install one bolt, washer, and lock nut to left and right upright and base assembly using a 9/16" socket and wrench. Item Description Left Upright Right Upright Bolt, 3/8 x 5” Hex Head Washer, 3/8”... -
Page 18: Install Front Crossbar
Install Front Crossbar 1. Route cable from front crossbar into left upright. Item Description Ergo™ Front Crossbar 2. Install bolts, washers, and lock nuts securing front crossbar to uprights using a 13mm socket and wrench. Item Description Lock Nut, M8 Washer, M8 Bolt, M8 x 20mm Hex Head Install Bridge... - Page 19 Note: Leave a spacing of 5-12mm between washer and upright. 2. Slide bridge down uprights. Item Description Bridge Upright 3. Install bolts, washers, and lock nuts securing the bridge to uprights using a 13mm socket and wrench. Item Description Bridge Upright Lock Nut, M8 Washer, M8...
-
Page 20: Tighten Upper Hardware
Tighten Upper Hardware Tighten hardware 100%. Item Description Bolt, M8 x 20mm Hex Head Tighten Lower Hardware Tighten hardware 100%. Item Description Bolt, 3/8 x 5” Hex Head Install Plastic Grommets 1. Secure cables from front crossbar and left upright to the bridge using cable ties. 2. -
Page 21: Install Upper Dashboard Tray
3. Install plastic grommets to front crossbar. Item Description Plastic Grommet Cable Tie Console Cable Note: For international units, install the ferrite approximately 7 inches from the center of the bridge. Route console cable through ferrite and secure with cable tie. Item Description Ferrite... -
Page 22: Install Console
2. Install screws securing upper dashboard tray to front crossbar using a Phillips screwdriver. Item Description Upper Dashboard Tray Screw, M4.2 x 19mm Phillips Head Note: Be careful not to over tighten screws. Over tightening can damage the plastic. Install Console 1. -
Page 23: Install Lower Dashboard Tray
Install Lower Dashboard Tray Install screws securing lower dashboard tray to upper dashboard tray using a Phillips screwdriver. Item Description Lower Dashboard Tray Screw, M4.2 x 19mm Phillips Head Screw, #10 x 0.5” Phillips Head (silver) Install Rear End Caps Install screws securing rear end caps to base assembly using a Phillips screwdriver. -
Page 24: Install Front End Caps
Install Front End Caps Install screws securing front end caps to base assembly using a Phillips screwdriver. Item Description Front End Cap Screw, M4.2 x 19mm Phillips Head Page 24 of 31... -
Page 25: Service And Technical Data
Service and Technical Data Preventive Maintenance Tips Note: Safety of the equipment can be maintained only if the equipment is examined regularly for damage or wear. Keep the equipment out of use until defective parts are repaired or replaced. Pay special attention to parts that are subject to wear, as outlined below. -
Page 26: Preventive Maintenance Schedule
Preventive Maintenance Schedule Item Weekly Monthly Biannually Console Overlays Clean Inspect Bottle Holders / Accessory Trays Clean Inspect Console Mounting Bolts Inspect Hardware Inspect Frame Clean Inspect Plastic Covers Clean Inspect Lifepulse Sensors Clean / Inspect Striding Belt Centered Inspect Emergency Stop Magnet Clean / Inspect Motor Cover... - Page 27 Maximum speed is reduced. Probable Cause Corrective Action User is pushing striding belt. This occurs when the runner is running faster than the striding belt will travel, with the result of the striding belt being pushed with the runner’s feet. Instruct users not to push striding belt in either direction.
-
Page 28: How To Adjust And Tension The Striding Belt
Probable Cause Corrective Action Stop switch is activated with very light pressure or returns slowly after being pressed. Stop switch cable is not making proper contact. Contact Customer Support Services. Main wire harness is pinched. Ground path is open. How to Adjust and Tension the Striding Belt Do not move the treadmill or place hands under the treadmill while it is plugged into an electrical outlet! The Belt Tensioning Bolts An 8mm hex key wrench is required for this task. -
Page 29: Tensioning An Existing Striding Belt
Note: Do not exceed one full turn of the adjusting screws in either direction. If after one full turn the belt does not track properly, contact Cybex International, Inc. Customer Support. Do not overtighten the tensioning bolts while making belt adjustments. Overtightening of bolts may over stretch and damage the striding belt or roller. -
Page 30: Specifications
Specifications V Series Treadmill - Specifications Designed Use Heavy / Commercial, EN ISO 20957 Class S Maximum User Weight 400 lbs. / 181 kg Speed Range 0.5 - 12.0 MPH (0.8 - 19.3 KPH) in 0.1 increments Incline Range 0% - 15%... - Page 31 Columbia Center III - 9525 West Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893 www.cybexintl.com...
