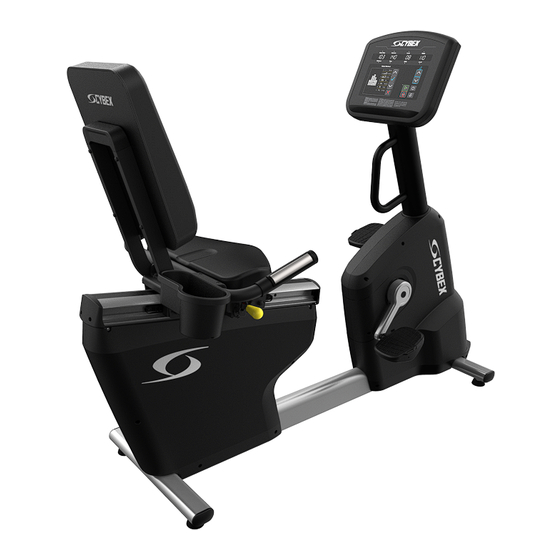

Cybex - V Series Recumbent Bike
Assembly Instructions
Part Number
1008690-0001 AB

Advertisement

Table of Contents
loading

Related Manuals for CYBEX V Series

Summary of Contents for CYBEX V Series

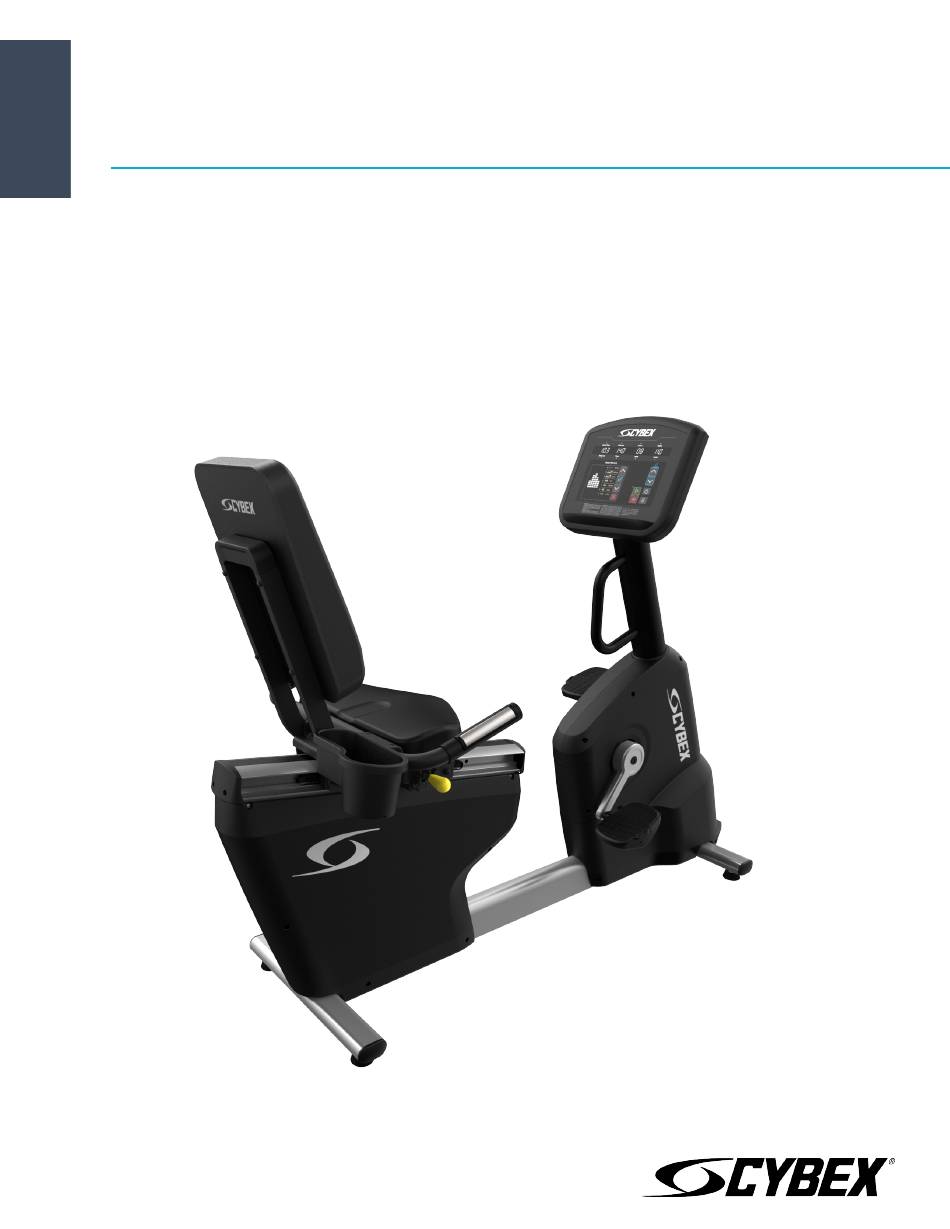

  • Page 1 Cybex - V Series Recumbent Bike Assembly Instructions Part Number 1008690-0001 AB...
  • Page 3 User and Service Documents Link Operation Manuals and other Product Information available at https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents Trobareu el manual de funcionament i altra informació de producte a https://www.lftechsupport.com/web/document-library/documents Mae Llawlyfrau Gweithredu a Gwybodaeth Arall am Beiriannau ar gael yn https://www.lftechsupport.com/web/document-library/documents Die Betriebsanleitung und andere Produktinformationen erhalten Sie unter https://www.lftechsupport.com/web/document-library/documents...

  • Page 4: Table Of Contents

    Cybex logo are registered trademarks of Cybex International, Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.

  • Page 5: Getting Started

    Safety Instructions Read all instructions before use. Warning: Health-related injuries may result from incorrect or excessive use of exercise equipment. Cybex International, Inc. STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program, particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high cholesterol, is obese, or has not exercised regularly in the past year.
  • Page 6 Warning labels are shipped with every product and should be installed before product is used. Cybex International, Inc. is not responsible for missing or damaged warning labels. • Health and Environmental Regulations Warning - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

  • Page 7: Consignés De Sécurité

    0,6 m (2 pi.) dans la direction qui permet d'accéder à l'appareil. • Ne faites jamais fonctionner d’appareil Cybex International, Inc. dont la fiche ou le cordon d'alimentation sont altérés, ni aucun appareil qui serait tombé, aurait été endommagé ou même partiellement plongé dans l'eau.
  • Page 8 être installées avant utilisation de ces derniers. Cybex International, Inc. n'est pas responsable des étiquettes manquantes ou endommagées. • Réglementation en matière de santé et d’environnement : avertissement – Cet appareil peut contenir des produits chimiques considérés par l’État de Californie comme étant cancérigènes et causant des malformations...

  • Page 9: Where To Place Unit

    Where to Place Unit Read the entire manual before setting up the bike. After following all Safety Instructions, move the bike to the location where it will be used. Allow a clearance of 2 ft. (0.6 m) in the directions the bike is accessed from and 3 ft. (1 m) between the front or rear of the bike or any other objects.

  • Page 10: Using The Power Assist Option

    Using the Power Assist Option The units optional Power Assist feature makes it possible for the console to be powered by an external electrical source, eliminating the need to pedal at a minimum speed to supply constant power to the console. With this option, users who wish to ride the bike for rehabilitative exercise may pedal at a rate below the minimum without losing console power.

  • Page 11: Product Overview

    Product Overview Product Features Item Description Console Cup holder Contact Heart Rate Sensors Seat Adjustment Lever Leg Leveler How to Adjust Pedal Straps The bike pedal straps keep the user’s shoes on the pedals during a workout. The straps should fit comfortably but tight enough to prevent shoes from slipping at any point in the pedaling rotation.

  • Page 12: How To Adjust Seat

    How to Adjust Seat A properly adjusted seat is important in any bike-oriented exercise activity. If the seat is too close, excessive strain will be placed on the knees and quadriceps muscles. If the seat is too far, the resulting reaching action will irritate the feet, ankles, hips and knees.

  • Page 13: Assembly

    Assembly Component and Hardware List Components Item Description Base Assembly Stabilizer Monocolumn Assembly Seat Carriage Assembly Seat Handlebar Assembly Cup Holder Back Pad Seat Pad Pedal Console Power Bracket Crank Arm Hardware Item Description Screw, M8 x 16mm Hex Flange Head Screw, M8 x 20mm Hex Button Head Washer, M8 Flat Screw, M5 x 8mm Phillips Pan Head...

  • Page 14: Tools Required

    Note: The hardware packs are numbered. Follow this order during the assembly procedure. Note: This product does not use hardware pack 7. Tools Required • Phillips screwdriver • 15 mm Pedal wrench • 5 mm Allen wrench • 17 mm Open end wrench •...

  • Page 15: Install Stabilizers

    3. Remove base assembly from packaging. Item Description Base Assembly Install Stabilizers Install screws securing stabilizers to base assembly using a 10 mm socket wrench. Item Description Front Stabilizer Rear Stabilizer Base Assembly Screw, M8 x 16mm Hex Flange Head 20 ft.

  • Page 16: Install Monocolumn Assembly

    Install Monocolumn Assembly 1. Connect cables. 2. Install screws and locknuts securing monocolumn assembly to base assembly using a 10 and 13 mm socket wrench. Item Description Monocolumn Assembly Base Assembly Screw, M8 X 16mm Hex Flange Head Locknut, M8 20 ft.

  • Page 17: Install Seat Handlebar Assembly

    Install Seat Handlebar Assembly 1. Route heart rate cable down through hole in seat carriage assembly. 2. Install screws and washers securing seat handlebar assembly to seat carriage assembly using a 5 mm Allen wrench. Item Description Seat Handlebar Assembly Seat Carriage Assembly Heart Rate Cable Washer, M8 Flat...

  • Page 18: Install Shrouds

    Install Shrouds 1. Install screws securing rear shrouds to base assembly using a Phillips screwdriver. Item Description Rear Shrouds Base Assembly Screw, M4 X16mm Phillips Pan Head 13 in. lbs. (1.47 Nm) 2. Install screws securing front shrouds to base assembly using a Phillips screwdriver. Item Description Front Shrouds...

  • Page 19: Install Cup Holder

    Install Cup Holder Install screws securing cup holder to seat handlebar assembly using a Phillips screwdriver. Item Description Cup Holder Seat Handlebar Assembly Screw, M5 x 8mm Phillips Pan Head 23 in. lbs. (2.6 Nm) Note: Do not install screws using a drill. Install Back Pad 1.

  • Page 20: Install Seat

    Install Seat Install bolts and washers securing seat to seat carriage assembly using a Phillips screwdriver. Item Description Seat Seat Carriage Assembly Washer, M6 Bolt, M6 x 55mm 58 in. lbs. (6.6 Nm) Install Pedals 1. Install screws and caps securing crank arms to base assembly using a 14 mm socket wrench. Item Description Crank Arm...

  • Page 21: Console Connections

    Console Connections Description Display Connection Install Console Install screws securing console to monocolumn assembly using a Phillips screwdriver. Item Description Console Monocolumn Assembly Screw, M5 X 12mm Phillips Pan Head 23 in. lbs. (2.6 Nm) Tighten Hardware Make sure all hardware is 100% tight. Page 21 of 26...

  • Page 22: Service And Technical Data

    Service and Technical Data Preventive Maintenance Tips Note: Safety of the equipment can be maintained only if the equipment is examined regularly for damage or wear. Keep the equipment out of use until defective parts are repaired or replaced. Pay special attention to parts that are subject to wear, as outlined below.

  • Page 23: Preventive Maintenance Schedule

    Preventive Maintenance Schedule Item Weekly Monthly Biannually Console Overlays Clean Inspect Bottle Holders / Accessory Trays Clean Inspect Console Mounting Bolts Inspect Hardware Inspect Frame / Seat Post Clean Inspect Plastic Covers Clean Inspect Lifepulse Sensors Clean / Inspect Leg Levelers Inspect / Adjust Pedals / Straps Clean...

  • Page 24: Troubleshooting The Lifepulse ™ Sensors

    ™ Troubleshooting the Lifepulse Sensors If the heart rate reading is erratic or missing, do the following: • Dry the hands to prevent slipping. • Apply hands to the sensors that are set into the handlebars. • Grasp the sensors firmly. •...

  • Page 25: Specifications

    Specifications V Series Recumbent Bike - Specifications Designed Use Heavy / Commercial EN ISO 20957 Class SA Maximum User Weight 400 lbs. / 181 kg Pedal Size 5 in. x 5.5 in. / 127 mm x 140 mm Drive Type...
  • Page 26 Columbia Center III - 9525 West Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893 www.cybexintl.com...
