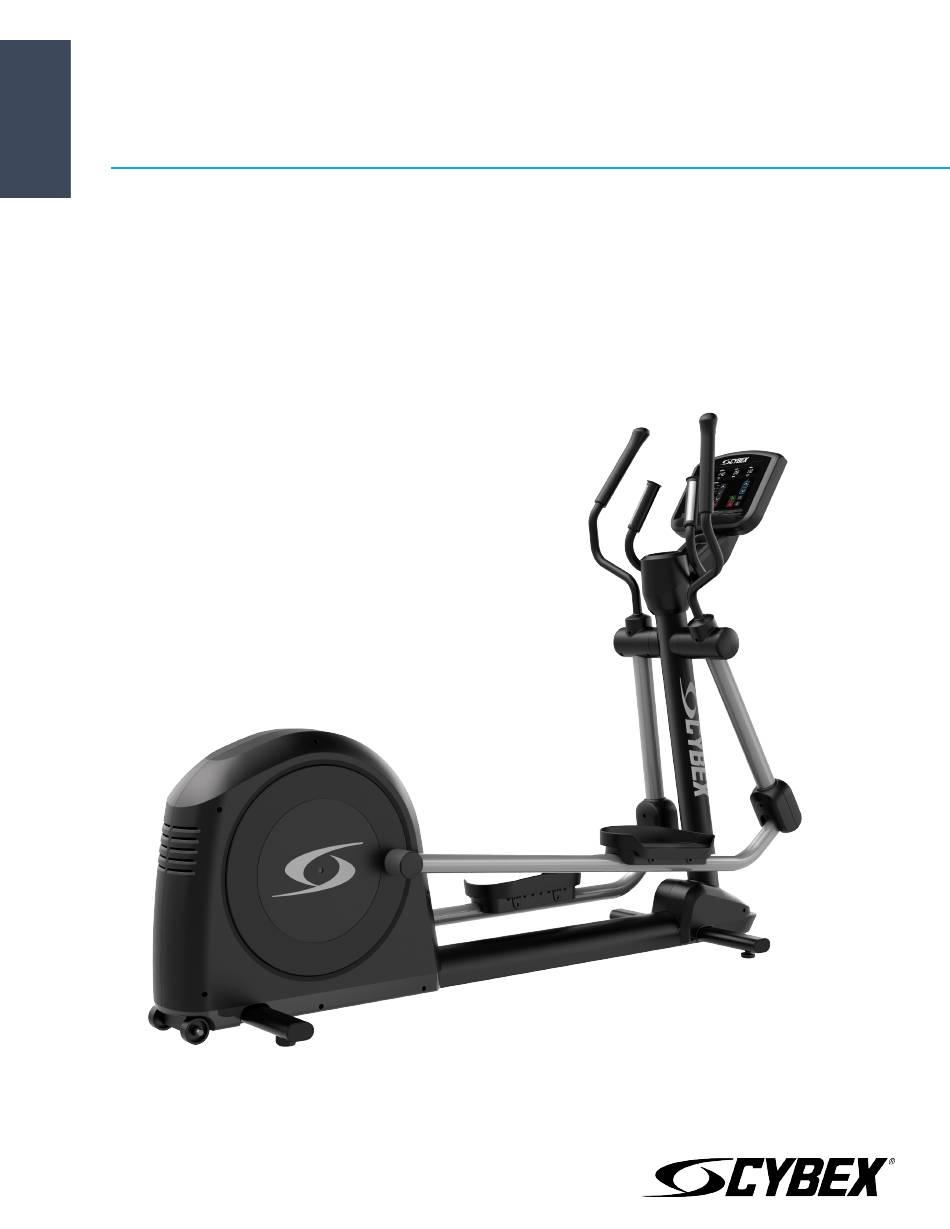

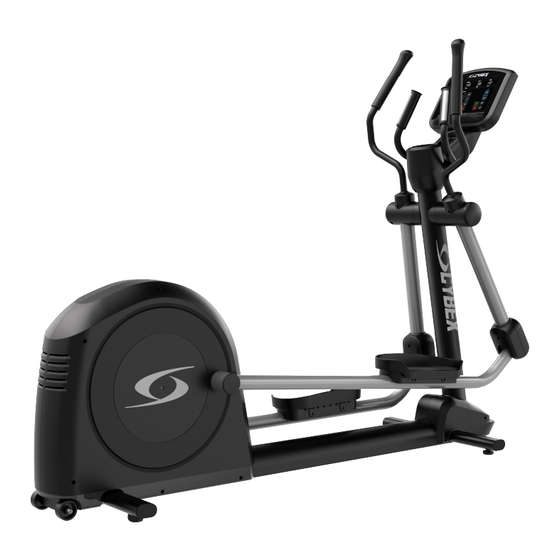

- Page 1 V Series Cross-Trainer Assembly Instructions Part Number 1008694-0001 AB...
- Page 3 User and Service Documents Link Operation Manuals and other Product Information available at https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents Trobareu el manual de funcionament i altra informació de producte a https://www.lftechsupport.com/web/document-library/documents Mae Llawlyfrau Gweithredu a Gwybodaeth Arall am Beiriannau ar gael yn https://www.lftechsupport.com/web/document-library/documents Die Betriebsanleitung und andere Produktinformationen erhalten Sie unter https://www.lftechsupport.com/web/document-library/documents...
-
Page 4: Table Of Contents
Cybex logo are registered trademarks of Cybex International, Inc. DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes. -
Page 5: Getting Started
CAUTION: Any changes or modifications to this equipment could void the product warranty. WARNING: Health-related injuries may result from incorrect or excessive use of exercise equipment. Cybex International, Inc. STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program, particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high cholesterol, is obese, or has not exercised regularly in the past year. - Page 6 Warning labels are shipped with every product and should be installed before product is used. Cybex International, Inc. is not responsible for missing or damaged warning labels. • Health and Environmental Regulations Warning - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
-
Page 7: Consignes De Sécurité
Consignes de Sécurité Lire toutes les instructions avant usage. AVERTISSEMENT: Une utilisation incorrecte ou excessive de l'appareil peut entraîner des blessures. Cybex International, Inc. Recommande VIVEMENT aux utilisateurs de passer un examen médical complet avant d'entamer un programme d'entraînement, et tout particulièrement dans les cas suivants : antécédents familiaux d'hypertension (pression sanguine trop élevée) ou de pathologies cardiaques, utilisateurs de 45... - Page 8 • Si certaines étiquettes d'avertissement sont manquantes ou endommagées, contactez immédiatement le Service à la clientèle. Nous vous en fournirons de nouvelles. Les étiquettes d'avertissement sont expédiées avec les appareils et doivent être installées avant utilisation de ces derniers. Cybex International, Inc. n'est pas responsable des étiquettes manquantes ou endommagées.
-
Page 9: Where To Place And How To Stabilize The Cross-Trainer
Where to Place and How to Stabilize the Cross-Trainer Read the entire manual before setting up the cross-trainer. After following all Safety Instructions, move the unit to the location where it will be used. Allow 1 ft. (0.3 m) of clearance in front of the cross-trainer and at least 2 ft. (0.6 m) on the side. -
Page 10: Electrical Power Requirements (Applicable For Units Using External Power Supply)
Plug the power to the external power connector on the front end of the cross-trainer. Plug the cord into an AC outlet. Use only the external power supply provided by Cybex International, Inc. in order to insure against unsafe operation. -
Page 11: Product Overview
Product Overview Product Features Item Description Console Contact Heart Rate Sensors Cup Holder Pedal Leg Leveler Transport Wheels How to Use the Cross-Trainer Place feet anywhere on the pedals that feel comfortable. Many users put their toes 1-2" from the front edge of the pedals and 0.5-1"... -
Page 12: Assembly
Assembly Hardware and Required Tools Hardware Item Description Qty. M8 X 16 Hex Head Bolt M8 Washer M8 X 20 Button Head Hex Socket Screw M4.2 X 19 Phillips Pan Head Screw M5 X 14 Phillips Pan Head Screw Required Tools: •... -
Page 13: Attach Console Support Bracket To Base
Attach Console Support Bracket to Base 1. Pull main cable from base through bottom hole of console support bracket. Description Main Cable Console Support Bracket 2. Attach console support bracket to base using four screws and four washers. Description Console Support Bracket M8 X 16 Hex Head Screw M8 Washer Cross-Trainer Base... -
Page 14: Connect Heart Rate Cables
Connect Heart Rate Cables Connect the heart rate cables from the main cable to the heart rate cables from the bullhorns. Page 14 of 23... -
Page 15: Attach Console Support Bracket Cover
Attach Console Support Bracket Cover Description Qty. Console Support Bracket Cover M4.2 X 19 Phillips Pan Head Screw 1.2 - 1.5 Nm (10.5 - 13 in. lbs.) Base to Console Cable Connection Description Console to Base Power Page 15 of 23... -
Page 16: Attach Console
Attach Console Description Qty. Console Console Support Bracket M5 X 14 Phillips Pan Head Screw 2.3 - 2.8 Nm (20 - 25 in. lbs.) Attach User Arms Description Qty. User Arm, Right User Arm, Left M8 X 20 Button Head Hex Socket Screw M8 Washer 40.7 - 47.5 Nm (30 - 35 ft. -
Page 17: Attach Deadshaft Covers
Attach Deadshaft Covers 1. Secure rear deadshaft cover and front deadshaft cover to rocker arm using two screws. NOTE: Repeat the procedure for the remaining rocker arm. The front cover used on the first rocker arm becomes the rear cover on the remaining rocker arm. Description Deadshaft Cover (Screw Side) Deadshaft Cover (with Onserts) -
Page 18: Attach Front Covers & Power Bracket
Attach Front Covers & Power Bracket Description Qty. Front Cover, Left Front Cover, Right M4.2 X 19 Phillips Pan Head Screw Power Bracket 1.2 - 1.5 Nm (10.5 - 13 in. lbs.) Page 18 of 23... -
Page 19: Service And Technical Data
Service and Technical Data Preventive Maintenance Tips NOTE: Safety of the equipment can be maintained only if the equipment is examined regularly for damage or wear. Keep the equipment out of use until defective parts are repaired or replaced. Pay special attention to parts that are subject to wear, as outlined below. -
Page 20: Preventive Maintenance Schedule
Preventive Maintenance Schedule Item Weekly Monthly Biannually Console Overlays Clean Inspect Bottle Holders / Accessory Trays Clean Inspect Console Mounting Bolts Inspect Hardware Inspect Frame Clean Inspect Plastic Covers Clean Inspect Lifepulse Sensors Clean / Inspect Leg Levelers Inspect / Adjust Pedals Clean Inspect... -
Page 21: Troubleshoot The Lifepulse™ Sensors
Troubleshoot the Lifepulse™ Sensors If the heart rate reading is erratic or missing, do the following: • Dry the hands to prevent slipping. • Apply hands to the sensors that are set into the bullhorns. • Grasp the sensors firmly. •... -
Page 22: Specifications
Specifications Specifications Designed Use Heavy / Commercial Class SA Maximum User Weight 400 lbs. / 181 kg Drive Type Belt / Alternator Resistance Levels Pedal Speed Range 2.2 - 12.7 mph / 3.5 - 20.4 kph Power Requirements None (optional external power supply) Patented Lifepulse™... - Page 23 Columbia Center III - 9525 West Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893 www.cybexintl.com...
