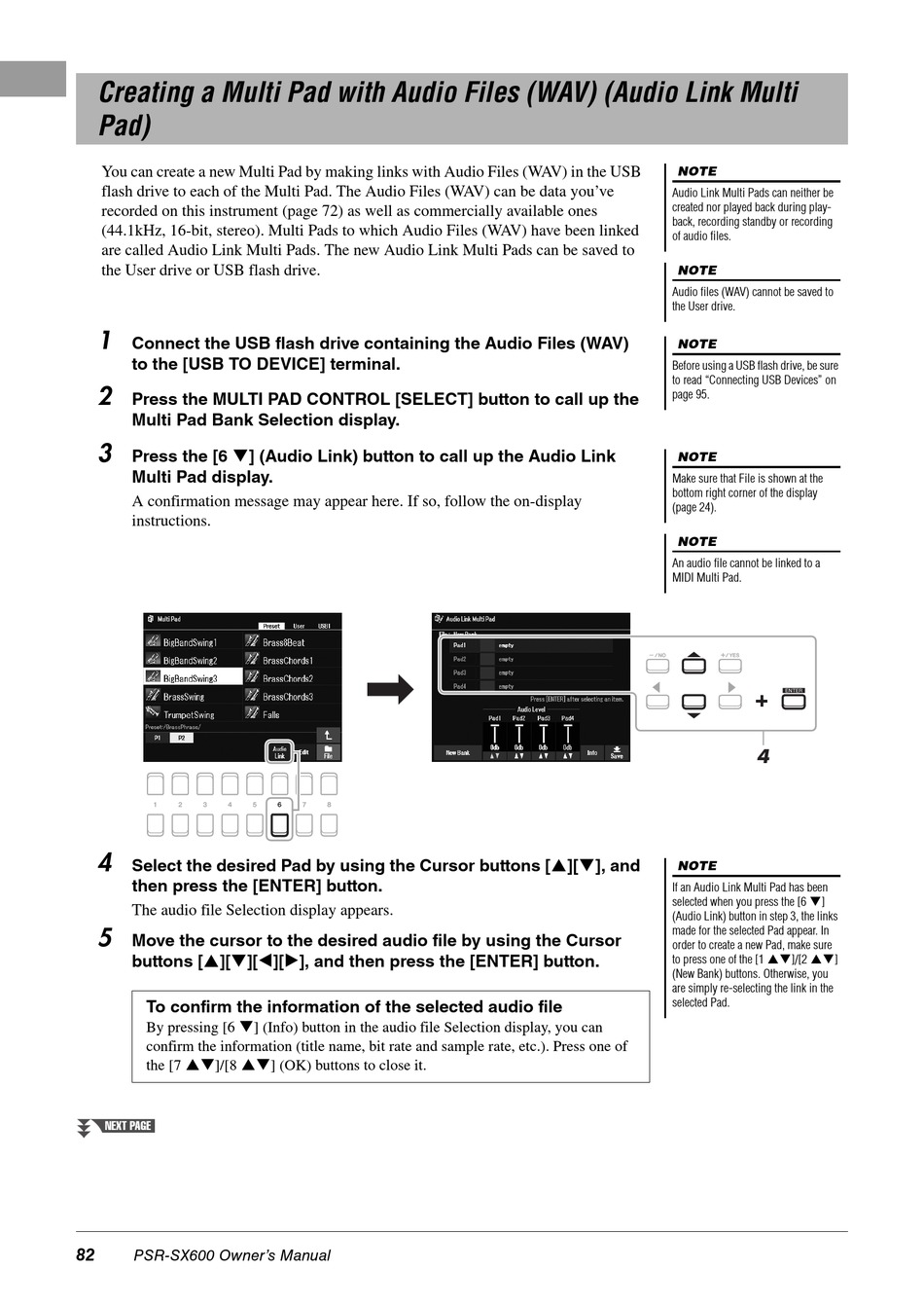

Creating A Multi Pad With Audio Files (Wav) (Audio Link Multi Pad) - Yamaha PSR-SX600 Owner's Manual

Creating a Multi Pad with Audio Files (WAV) (Audio Link Multi
Pad)
You can create a new Multi Pad by making links with Audio Files (WAV) in the USB
flash drive to each of the Multi Pad. The Audio Files (WAV) can be data you've
recorded on this instrument (page 72) as well as commercially available ones
(44.1kHz, 16-bit, stereo). Multi Pads to which Audio Files (WAV) have been linked
are called Audio Link Multi Pads. The new Audio Link Multi Pads can be saved to
the User drive or USB flash drive.
1
Connect the USB flash drive containing the Audio Files (WAV)
to the [USB TO DEVICE] terminal.
2
Press the MULTI PAD CONTROL [SELECT] button to call up the
Multi Pad Bank Selection display.
3
Press the [6 ] (Audio Link) button to call up the Audio Link
Multi Pad display.
A confirmation message may appear here. If so, follow the on-display
instructions.
4
Select the desired Pad by using the Cursor buttons [][], and
then press the [ENTER] button.
The audio file Selection display appears.
5
Move the cursor to the desired audio file by using the Cursor
buttons [][][E][F], and then press the [ENTER] button.
To confirm the information of the selected audio file
By pressing [6 ] (Info) button in the audio file Selection display, you can
confirm the information (title name, bit rate and sample rate, etc.). Press one of
the [7 ]/[8 ] (OK) buttons to close it.
NEXT PAGE
82
PSR-SX600 Owner's Manual
NOTE
Audio Link Multi Pads can neither be
created nor played back during play-
back, recording standby or recording
of audio files.
NOTE
Audio files (WAV) cannot be saved to
the User drive.
NOTE
Before using a USB flash drive, be sure
to read "Connecting USB Devices" on
page 95.
NOTE
Make sure that File is shown at the
bottom right corner of the display
(page 24).
NOTE
An audio file cannot be linked to a
MIDI Multi Pad.
4
NOTE
If an Audio Link Multi Pad has been
selected when you press the [6 ]
(Audio Link) button in step 3, the links
made for the selected Pad appear. In
order to create a new Pad, make sure
to press one of the [1 ]/[2 ]
(New Bank) buttons. Otherwise, you
are simply re-selecting the link in the
selected Pad.
