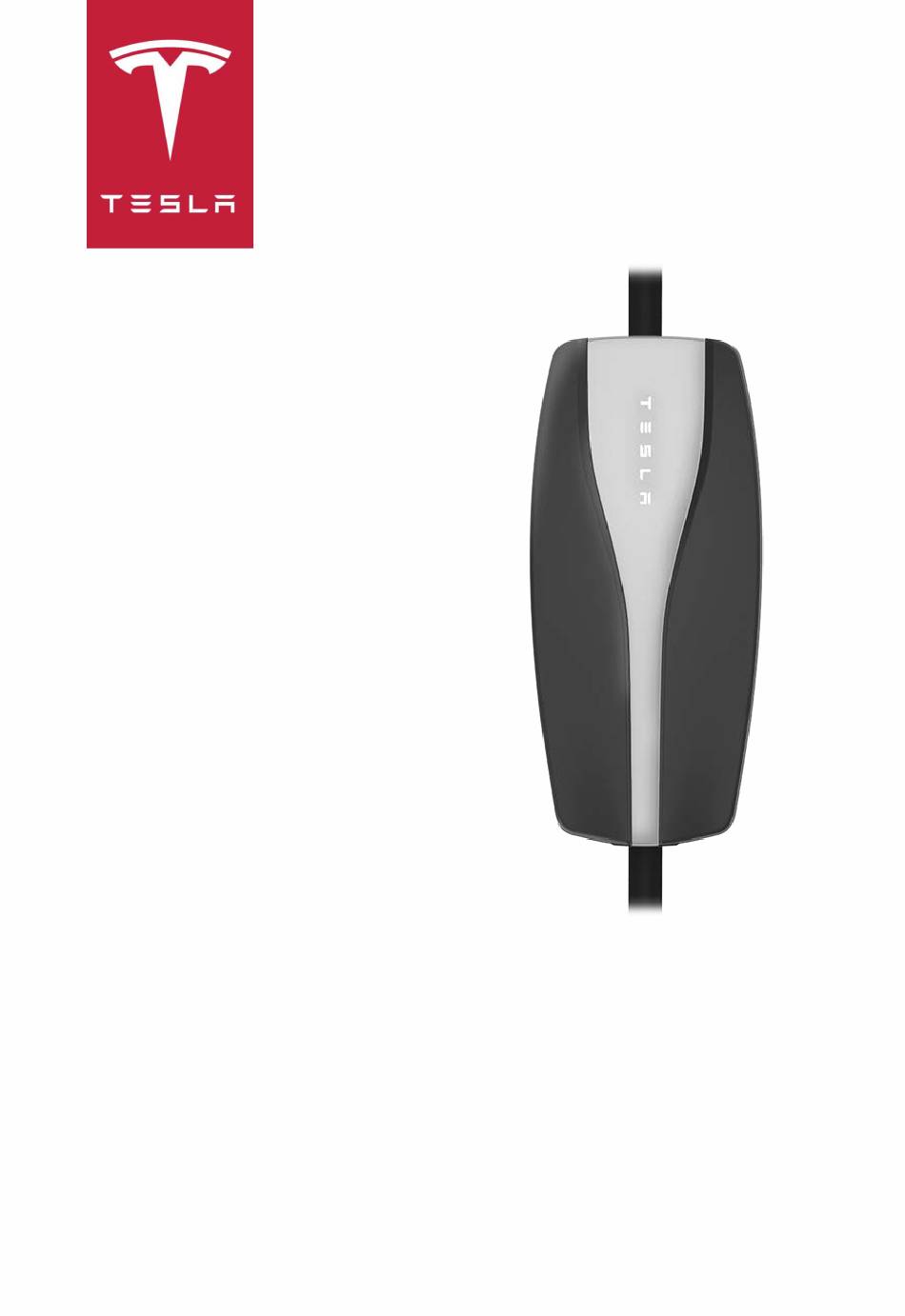

- Page 1 GEN 2 MOBILE CONNECTOR OWNER'S MANUAL JAPAN...
-
Page 3: Table Of Contents
Mobile Connector Component Overview..4 Specifications............... 4 Specifications Reference..........5 Charging Time.............. 5 Charging Rate Reference......... 6 Adapters..........7 Removing the Adapter..........7 Attaching the Adapter..........8 How to Charge.........9 Plugging In..............9 Unplugging..............10 For More Information..........10 Troubleshooting......11 Gen 2 Mobile Connector Status Lights....11 Questions?..............13... -
Page 4: Safety Information
Warning: Use the Mobile Connector only within the specified operating parameters. Warning: The Mobile Connector is designed only for charging a Tesla vehicle (excluding Tesla Roadster). Do not use it for any other purpose or with any other vehicle or object. The Mobile Connector is intended only for vehicles that do not require ventilation during charging. -
Page 5: Cautions
Do not insert foreign objects into any part of the Mobile Connector. Warning: Do not charge a vehicle that is covered with a non-Tesla approved car cover. Warning: Ensure that the Mobile Connector’s charging cable does not obstruct pedestrians or other vehicles or objects. -
Page 6: General Information
General Information Mobile Connector Component Overview Handle Button on handle Cable Adapter Mobile Connector controller Status lights Specifications Use only a 200-240 volt single-phase AC supply and a 50-60 hertz wall outlet that has a dedicated and properly-grounded circuit. The minimum single-phase current is 8A. If possible, use a dedicated receptacle with a single socket. -
Page 7: Specifications Reference
While you are charging your vehicle, you can also touch the Charging icon to review the charging status information; it displays the time remaining until fully charged at the currently selected charge level. For more information on how long it takes to charge your Tesla vehicle, go to www.tesla.com/jp/. General Information... -
Page 8: Charging Rate Reference
General Information Charging Rate Reference Adapter Current Power at 100 Volts Regular household outlet 1.2 kW (with grounding) Adapter Current Power at 200 Volts 200V outlet for EVs 3.2 kW (JWDS-0033) -
Page 9: Adapters
Adapters The Mobile Connector includes a standard 5-15 adapter. Additional adapters may be available for purchase. For details, go to: www.tesla.com/jp/. Removing the Adapter To remove an adapter, firmly grasp the adapter and pull it from its socket. Adapters... -
Page 10: Attaching The Adapter
Adapters Attaching the Adapter To attach an adapter, line up the adapter with the controller of the Mobile Connector and push it into the socket until it snaps into place. Note: The Mobile Connector automatically detects the attached adapter and sets the appropriate current draw. -
Page 11: How To Charge
How to Charge Plugging In Caution: Always inspect the Mobile Connector and adapter for damage prior to each use. Ensure that the Mobile Connector’s adapter matches the outlet you want to use. Plug the Mobile Connector’s adapter into the power outlet. The adapter should be inserted completely into the power outlet. -
Page 12: Unplugging
Note: If your vehicle is not equipped with a motorized charge port door, you may need to push the charge port door closed. Tesla recommends leaving the Mobile Connector plugged into the wall outlet to reduce wear and tear from day-to-day use. If you do not plan to use the Mobile Connector for a while (such as when you leave for vacation), unplug it, and store it in an appropriate location. -
Page 13: Troubleshooting
Troubleshooting Gen 2 Mobile Connector Status Lights Under normal conditions, when charging is in progress, the Tesla logo lights illuminate sequentially, and the red light is off. Identify problems by paying attention to these lights. In some cases, you may need to reset the device by unplugging the Mobile Connector from the vehicle or from the power outlet. - Page 14 Consider Connector controller. charging in a cooler area, such as indoors or in the shade. If the error persists, contact your closest Service Center (https://www.tesla.com/ findus). Streaming 4 flashes Charging current is reduced Make sure the power outlet is...
-
Page 15: Questions
Try a different outlet. If the error persists, contact your closest Service Center (https:// www.tesla.com/findus). 7 flashes Software error or mismatch. Update the vehicle's software, if available. If an update is not... - Page 16 PUBLISHED DECEMBER 18, 2019...
