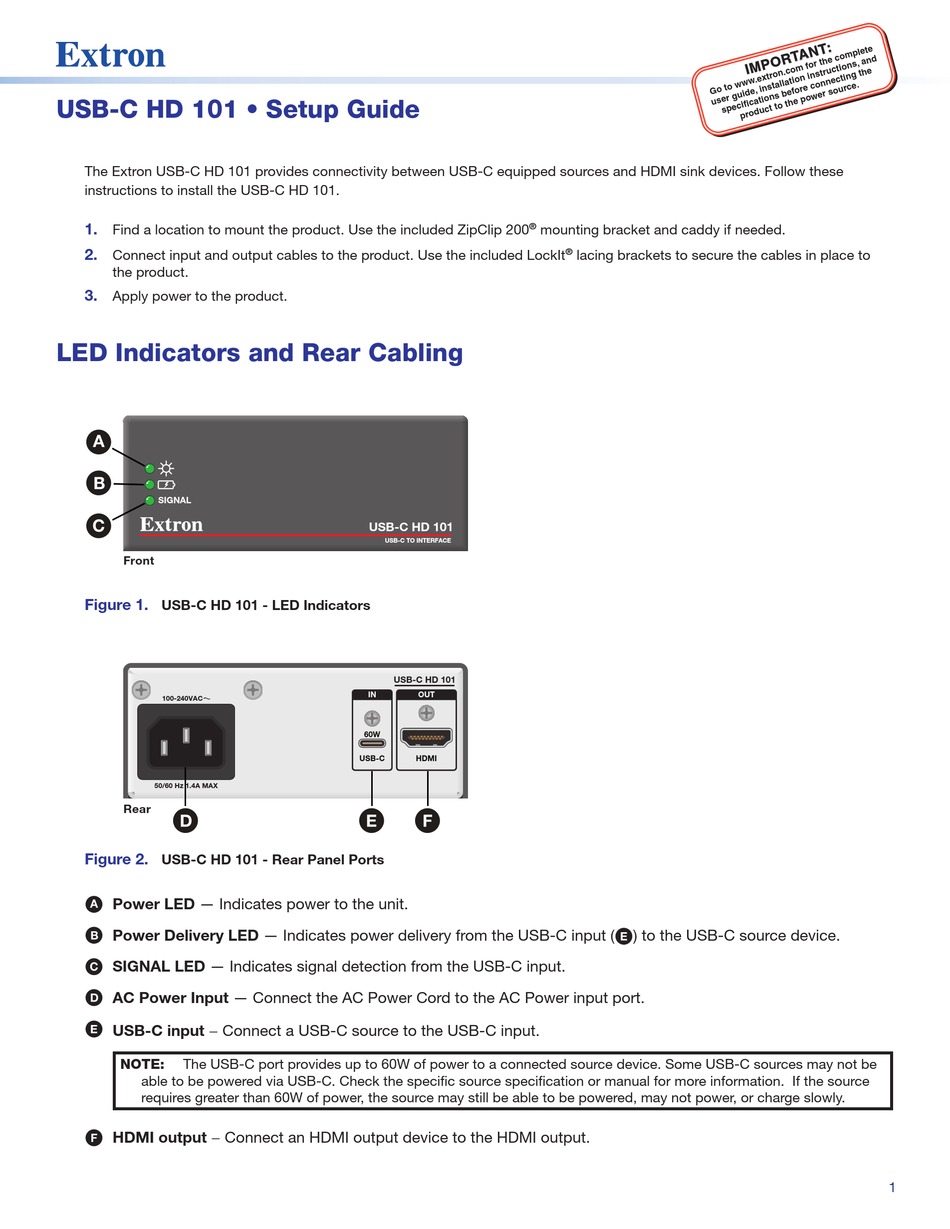

USB-C HD 101 • Setup Guide
The Extron USB-C HD 101 provides connectivity between USB-C equipped sources and HDMI sink devices. Follow these
instructions to install the USB-C HD 101.
1.
Find a location to mount the product. Use the included ZipClip 200
2.
Connect input and output cables to the product. Use the included LockIt
the product.
3.
Apply power to the product.
LED Indicators and Rear Cabling
USB-C HD 101
USB-C HD 101
A A
B B
A A
SIGNAL
C C
B B
Front
SIGNAL
C C
Figure 1.
USB-C HD 101 - LED Indicators
Front
100-240VAC
100-240VAC
50/60 Hz 1.4A MAX
Rear
D D
50/60 Hz 1.4A MAX
Rear
D D
Figure 2.
USB-C HD 101 - Rear Panel Ports
Power LED — Indicates power to the unit.
A
Power Delivery LED — Indicates power delivery from the USB-C input (
B
SIGNAL LED — Indicates signal detection from the USB-C input.
C
AC Power Input — Connect the AC Power Cord to the AC Power input port.
D
E
USB-C input − Connect a USB-C source to the USB-C input.
NOTE: The USB-C port provides up to 60W of power to a connected source device. Some USB-C sources may not be
able to be powered via USB-C. Check the specific source specification or manual for more information. If the source
requires greater than 60W of power, the source may still be able to be powered, may not power, or charge slowly.
HDMI output − Connect an HDMI output device to the HDMI output.
F
®
USB-C HD 101
USB-C TO INTERFACE
USB-C HD 101
USB-C TO INTERFACE
USB-C HD 101
IN OUT
60W
USB-C HD 101
IN OUT
USB-C HDMI
60W
E E F F
USB-C HDMI
E E F F
mounting bracket and caddy if needed.
®
lacing brackets to secure the cables in place to
) to the USB-C source device.
E
