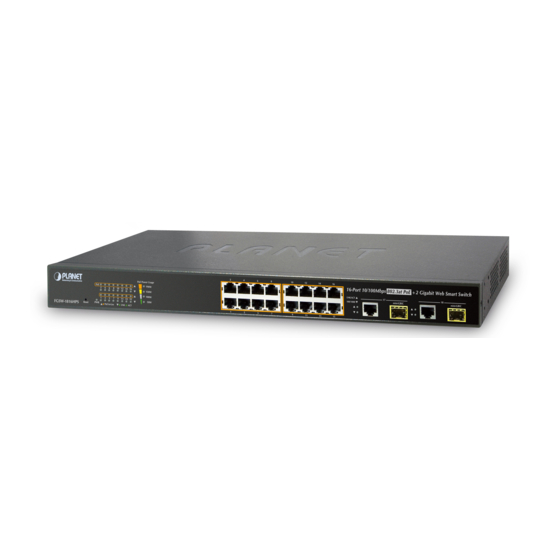

- Page 1 8/16/24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch FGSD-1008HPS/FGSW-1816HPS/FGSW-2624HPS/ FGSW-2624HPS4 Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ..................3 2. Requirements ..................... 4 3. Starting Web Management ................5 3.1 Logging in to the Managed PoE Switch ..........5 3.2 Saving Configuration via Web ............... 7 4. Terminal Setup (FGSW-2624HPS Only) ............8 4.1 Logging on to Console ................. 9 4.2 Configuring IP Address ................. -
Page 3: Package Contents
1. Package Contents Thank you for purchasing PLANET 8/16/24-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch, FGSD-1008HPS, FGSW-1816HPS, FGSW-2624HPS and FGSW-2624HPS4. “Managed PoE Switch” mentioned in this quick installation guide refers to the above switch products. -
Page 4: Requirements
2. Requirements z Workstations running Windows 10/XP/2003/Vista/7/8/2008, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/IP protocols. z Workstations are installed with Ethernet NIC (Network Interface Card) z Serial Port Connection (Terminal) (FGSW-2624HPS only) The above Workstations come with COM Port (DB9) or USB-to-RS232 converter. The above Workstations have been installed with terminal emulator, such as Hyper Terminal included in Windows XP/2003. -
Page 5: Starting Web Management
3. Starting Web Management The following shows how to start up the Web Management of the Managed PoE Switch. Note the Managed PoE Switch is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address. - Page 6 Default IP Address: 192.168.0.100 Default Username: admin Default Password: admin Figure 3-2: Login Screen 3. After entering the password, the main screen appears as Figure 3-3 shows. Figure 3-3: Web Main Screen of Managed PoE Switch...
-
Page 7: Saving Configuration Via Web
The Switch Menu on the top and left of the Web page lets you access all the commands and statistics the Managed PoE Switch provides. Figure 3-4: Switch Menu Now, you can use the Web management interface to continue the Switch management or manage the Switch by console interface. -
Page 8: Terminal Setup (Fgsw-2624Hps Only)
4. Terminal Setup (FGSW-2624HPS Only) To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to RJ45 type of serial port of the FGSW-2624HPS. PC / Workstation with Terminal Emulation Software Managed Switch RS232 to RJ45 Cable Serial Port RJ45 Console Port Figure 4-1: FGSW-2624HPS Console Connectivity A terminal program is required to make the software connection to the FGSW- 2624HPS. -
Page 9: Logging On To Console
4.1 Logging on to Console Once the terminal is connected to the device, power on the FGSW-2624HPS and the terminal will display “running testing procedures”. Then, the following message asks to log in user name and password. The factory default user name and password are shown as follows and the login screen in Figure 4-3 appears. -
Page 10: Storing Current Switch Configuration
2. The screen displays the current IP address as shown in Figure 4-4. > show ip IP Address: 192.168.0.100 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.0.254 DNS Server: DHCP Client: Disabled Figure 4-4: IP Information Screen Configuring IP Address 3. At the “>” prompt, enter the following command and press <Enter> as shown in Figure 4-5. > config ip address 192.168.1.100 > config ip submask 255.255.255.0 Figure 4-5: Configuring IP Address Screen The previous command would apply the following settings for the FGSW-2624HPS. -
Page 11: Recovering Back To Default Configuration
Web interface within the same subnet of 192.168.0.xx. 8-Port 10/100TX 802.3at PoE PoE-in-Use Gigabit PoE Power Usage (W) 2-Port Gigabit Managed Switch FGSD-1008HPS Reset 1000 Figure 5-1: FGSD-1008HPS Reset Button PoE Power Usage 190W 10 12 14 16 150W 100W 11 13 15 FGSW-1816HPS Reset PoE-in-Use... -
Page 12: Customer Support
6. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource and User’s Manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team. PLANET online FAQs: http://www.planet.com.tw/en/support/faq Switch support team mail address: support@planet.com.tw FGSD-1008HPS(v2), FGSW-1816HPS(v2), FGSW-2624HPS(v3) and FGSW-2624HPS4(v2) User’s Manual: http://www.planet.com.tw/en/support/downloads?method=category&c1=lan- switches&p=&type=3 (Please select your switch model name from the drop-down menu of Product Model.)
