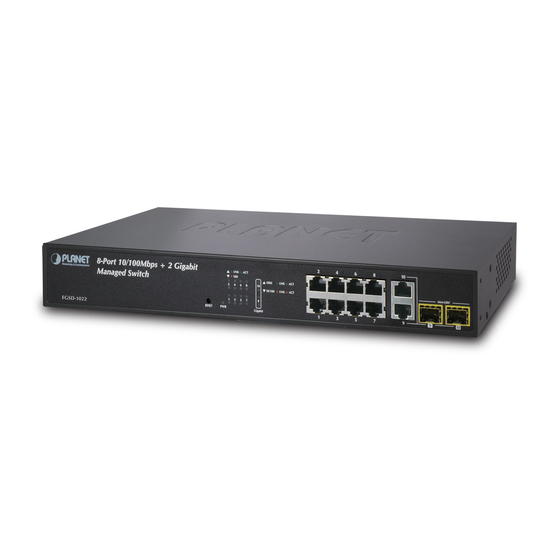

- Page 1 FGSD-1022 8-Port 10/100Mbps + 2G TP/SFP Combo Managed Switch FGSD-1022P 8-Port 10/100Mbps + 2G TP/SFP Combo Managed PoE Switch FGSD-1022HP 8-Port 10/100Mbps + 2G TP/SFP Combo Managed 802.3at PoE Switch Quick Installation Guide...
-
Page 2: Table Of Contents
Quick Installation Guide Table of Contents 1. Package Content..................3 2. Requirements ..................4 3. Terminal Setup ..................5 4. Logon to the Console ................7 5. Configure IP address................8 6. Start Web Management................ 11 7. While IP Address be changed or forgotten admin password – .....14 8. -
Page 3: Package Content
Quick Installation Guide 1. Package Content Thank you for purchasing PLANET 8-Port Fast Ethernet + 2-Port Gigabit TP/SFP Combo Managed Switch, FGSD-1022, FGSD-1022P and FGSD-1022HP. Terms of “Managed Switch” means the switches mentioned titled in the cover page of this Quick Installation Guide. -
Page 4: Requirements
Quick Installation Guide 2. Requirements The Managed Switch provide remote Web interface for manage; the following equipments are necessary for further management. Workstation installed with Ethernet NIC (Network Interface Card) The operate system of subscriber PC that running Windows XP/2003, Vista, Windows 7, MAC OS X , Linux, Fedora, Ubuntu or other platform compatible with TCP/IP protocols. -
Page 5: Terminal Setup
Quick Installation Guide 3. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to serial (console) port of the Managed Switch. The console port of the Managed Switch is DCE already, so that you can connect the console port directly through PC without the need of Null Modem. - Page 6 Quick Installation Guide Figure 3-2 Hyper Terminal Setting - 6 -...
-
Page 7: Logon To The Console
Quick Installation Guide 4. Logon to the Console Once the terminal has connected to the device, power on the Managed Switch, the terminal will display that it is running testing procedures. Then, the following message asks the login user name and password. The factory default username / password as following and the login screen in Figure 4-1 appear. -
Page 8: Configure Ip Address
Quick Installation Guide 5. Configure IP address The Managed Switch is shipped with default IP address as following. IP Address : 192.168.0.100 Subnet Mask : 255.255.255.0 To check the current IP address or modify a new IP address for the Managed Switch, please use the procedures as follow: Show the current IP address On ”Switch# ”... - Page 9 Quick Installation Guide Configure IP address and Default Gateway On “Switch(config)# ” prompt, enter the following command and press <Enter>. As show in Figure 5-2. Switch(config)# ip address 192.168.1.100 255.255.255.0 Switch(Config)# ip default-gateway 192.168.1.254 The previous command would apply the follow settings for the Managed Switch.
- Page 10 Repeat Step 1 to check if the IP address is changed. Store current switch configuration On “Switch(config)# ” prompt, enter the following command and press <Enter>. Switch(config)# copy running-config startup-config If the IP is successfully configured, the Managed Switch will apply the new IP address setting immediately.
-
Page 11: Start Web Management
Quick Installation Guide 6. Start Web Management The Managed Switch provides a built-in browser interface. You can manage it remotely by having a remote host with Web browser, such as Microsoft Internet Explorer, Mozilla Firefox, Google Chrome or Apple Safari. Figure 6-1 IP Management Diagram The following shows how to startup the Web Management of the Managed Switch, please note the Managed Switch is configured through... - Page 12 When the following dialog box appears, please enter the default user name "admin" and password “admin”. The login screen in Figure 6-2 appears. In the following we use FGSD-1022 as the example, yet it is same settings for all Managed Switches model in this quick installation guide Default IP Address: 192.168.0.100...
- Page 13 Quick Installation Guide appears as Figure 6-3. Figure 6-3 Web Main Screen of FGSD-1022 series Managed Switch Now, you can use the Web management interface to continue the Managed Switch management, please refer to the user manual for more detail.
-
Page 14: While Ip Address Be Changed Or Forgotten Admin Password
Quick Installation Guide 7. While IP Address be changed or forgotten admin password – To reset the IP address to the default IP Address “192.168.0.100” and the user name / password to factory default mode (default user name and password are both admin). Press the hardware reset button at the front panel about 5 seconds. -
Page 15: Customer Support
8. Customer Support Thank you for purchase PLANET products. You can browse our online FAQ resource at the PLANET Web site first to check if it could solve you issue. If you need more support information, please contact PLANET switch support team.
