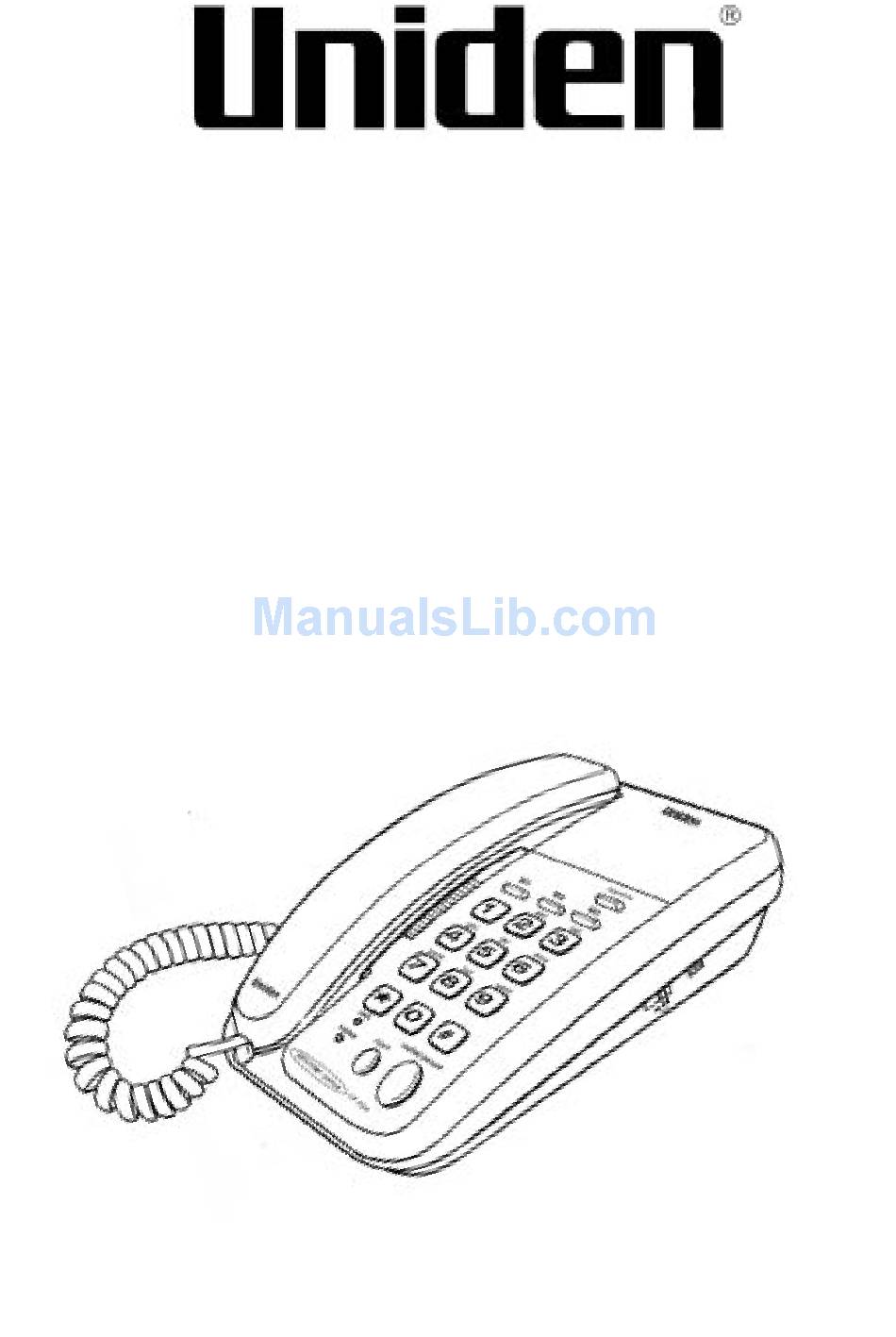

- Page 1 FP100 with 3 x One Touch Speed Dial Memories Operating Guide Feature Phone Series •...
-
Page 2: Introduction
INTRODUCTION Congratulations on the purchase of your Uniden FP100 Telephone. The FP100 has been designed and engineered to exacting standards for reliability, long life and outstanding performance. To obtain the full benefit from your new telephone, please read this Operating Guide thoroughly. -
Page 3: Table Of Contents
Using your FP100 ........ - Page 4 This page intentionally left blank. This page intentionally left blank.
-
Page 5: Important Information
IMPORTANT INFORMATION When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. -
Page 6: Important Notes
IMPORTANT INFORMATION 9. Unplug this product and refer servicing to qualified service personnel under the following conditions: A. If liquid has been spilled into the product. B. If the product has been exposed to rain or water. C. If the product does not operate normally when following the operating instructions. -
Page 7: Parts Checklist
PARTS CHECKLIST (For New Zealand Model) Curly Cord Base Unit Handset Telephone Line Cord Wall Mounting Bracket FP100 with 3 x One Touch Speed Dial Memories Operating Guide Feature Phone Series • Operating Guide 2 x Wall Mounting Screws and Wall Plugs... -
Page 8: Parts Checklist (For Australian Model)
PARTS CHECKLIST (For Australian Model ) Curly Cord Base Unit Handset Telephone Line Cord Wall Mounting Bracket and Plug FP100 with 3 x One Touch Speed Dial Memories Operating Guide Feature Phone Series • 2 x Wall Mounting Operating Guide... -
Page 9: Features & Functions
FEATURES & FUNCTIONS • 3 One Touch Speed Dial Buttons Your most important numbers can be programmed into the memory, for one touch speed dialling. • Adjustable Ringer Volume and Tone Controls The ringing volume and tone can be adjusted to suit different home or office situations. - Page 10 FEATURES & FUNCTIONS Button Button Button Button Handset Retainer Tab Telephone Number Card Numeric Keypad call LED status LED Button 12. tone Slide Switch 13. Not used 14. Telephone Line Jack 15. ringer Volume Switch (Hi/Med/Low) Button...
-
Page 11: Installation
INSTALLATION HANDSET CORD CONNECTION Plug one end of the Handset Cord (curly) into the Handset and the other end into the jack on the side of the telephone. TELEPHONE LINE CORD CONNECTION Plug one end of the line cord (straight) into the telephone line jack on the back of the telephone and the other end into the wall outlet. -
Page 12: Wall Mounting
INSTALLATION WALL MOUNTING You can mount your phone directly on a wall. Before mounting your phone, consider the following: • Select a location away from electrical cables, pipes or other items behind the mounting location that could cause a hazard when inserting screws into the wall. -
Page 13: Using Your Fp100
USING YOUR FP100 MEMORY DIAL NUMBERS 3 one touch speed dial numbers can be stored into the memory of your telephone. STORING ONE-TOUCH SPEED DIAL MEMORIES 1. To program One-Touch Memories ( a. Pickup the Handset. b. Press the c. Enter telephone number that you want to program. -
Page 14: Pause
USING YOUR FP100 PAUSE During the memory storage procedure you may enter a 4 second delay between numbers (for accessing a switchboard, or long distance service) by pressing the button on the Handset at the point in the number sequence you wish to pause. -
Page 15: Adjusting The Ringer Volume Control
USING YOUR FP100 ADJUSTING THE RINGER VOLUME CONTROL While the phone is ringing, you can adjust the ringer volume of your telephone by moving the ringer switch to the desired low/medium/high position. ADJUSTING THE RINGER TONE CONTROL While the phone is ringing, you can adjust the Ringer Tone of your telephone by moving the tone slide control to the desired position. -
Page 16: Placing A Telephone Call
USING YOUR FP100 PLACING A TELEPHONE CALL 1. Remove the Handset from the Base. 2. Press the keypad buttons to dial the phone number you want. 3. After you have completed the phone call, place the Handset back on the Base. -
Page 17: Troubleshooting
TROUBLESHOOTING If your Telephone is not performing to your expectations, please try these simple steps. If you are still unable to resolve the problems, contact Uniden Customer Service for assistance. New Zealand: 0800 4 UNIDEN 4 864336 Australia: 1800 632 789 Problem Can’t make or receive calls. -
Page 18: Specifications
SPECIFICATIONS Specifications for New Zealand Model Compliance Size: Weight: Specifications, Features and availability of Optional Accessories shown are typical and subject to change without notice. NOTE: FOR USE OF THIS DEVICE IN NEW ZEALAND 1. The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item complies with minimum conditions for connection to its network. -
Page 19: Warranty
Uniden, (C) Improperly installed, (D) Repaired by someone other than an authorised Uniden Repair Agent for a defect or malfunction covered by this warranty, (E) Used in conjunction with any equipment or parts or as a part of a system not manufactured by Uniden. - Page 20 UNIDEN © 1998 Uniden Australia Pty Limited © 1998 Uniden New Zealand Limited...
