TANDBERG 3000 MXP Connecting Manual
Hide thumbs
Also See for 3000 MXP:
- User manual (333 pages) ,
- Installation manual (6 pages) ,
- Administrator's manual (375 pages)
Advertisement
Quick Links
Tandberg 3000 MXP
C
3000 MXP I
ONNECTING THE

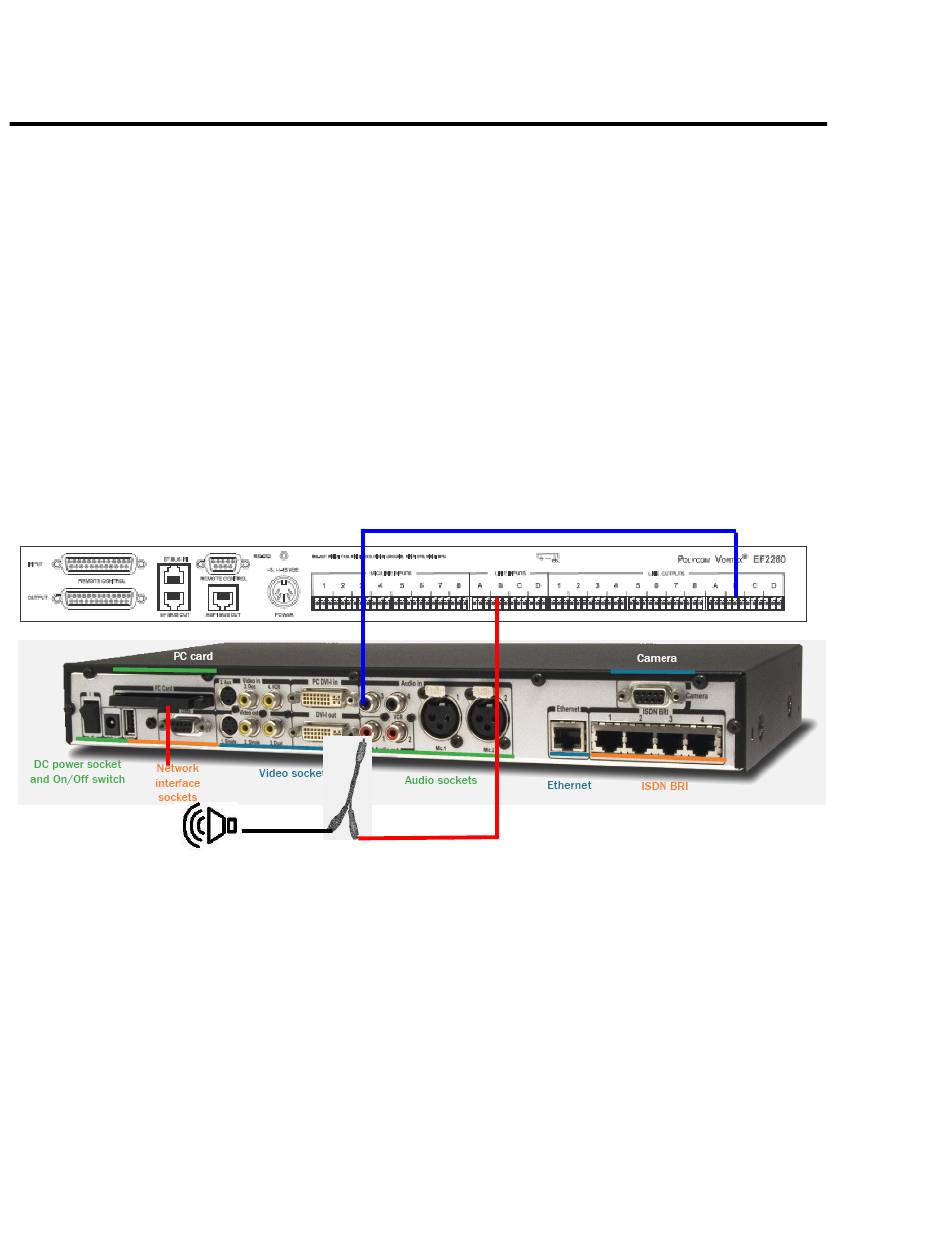

1. Connect Line Output B of the Vortex Device to the 3000 MXP codec mixer Input 3 as
shown below using the attached RCA cable.
2. Connect Line Input B of the Vortex Device to one side of an RCA Y (one male to two
female) adapter connected to the Main line level Output 1 of the 3000 MXP codec as
shown below using the other attached RCA cable.
3. Connect the other side of the RCA Y adapter to the Audio or Speaker input of the
amplifier or video display to hear the far end audio using a RCA (male to male).
O
NPUTS AND
UTPUTS
See next page for Tandberg settings.
Advertisement
Related Manuals for TANDBERG 3000 MXP
Summary of Contents for TANDBERG 3000 MXP
- Page 1 NPUTS AND UTPUTS 1. Connect Line Output B of the Vortex Device to the 3000 MXP codec mixer Input 3 as shown below using the attached RCA cable. 2. Connect Line Input B of the Vortex Device to one side of an RCA Y (one male to two female) adapter connected to the Main line level Output 1 of the 3000 MXP codec as shown below using the other attached RCA cable.
- Page 2 To configure the Tandberg 6000 MVX system to use Revolabs DSP Package microphones: Go to Audio Settings. Set Input 3 to MIC. Confirm that Output 1 is ON. Disable Echo Canceller (OFF). Turn Audio Leveling (AGC) OFF. Adjust the audio Input Type Level if necessary.
