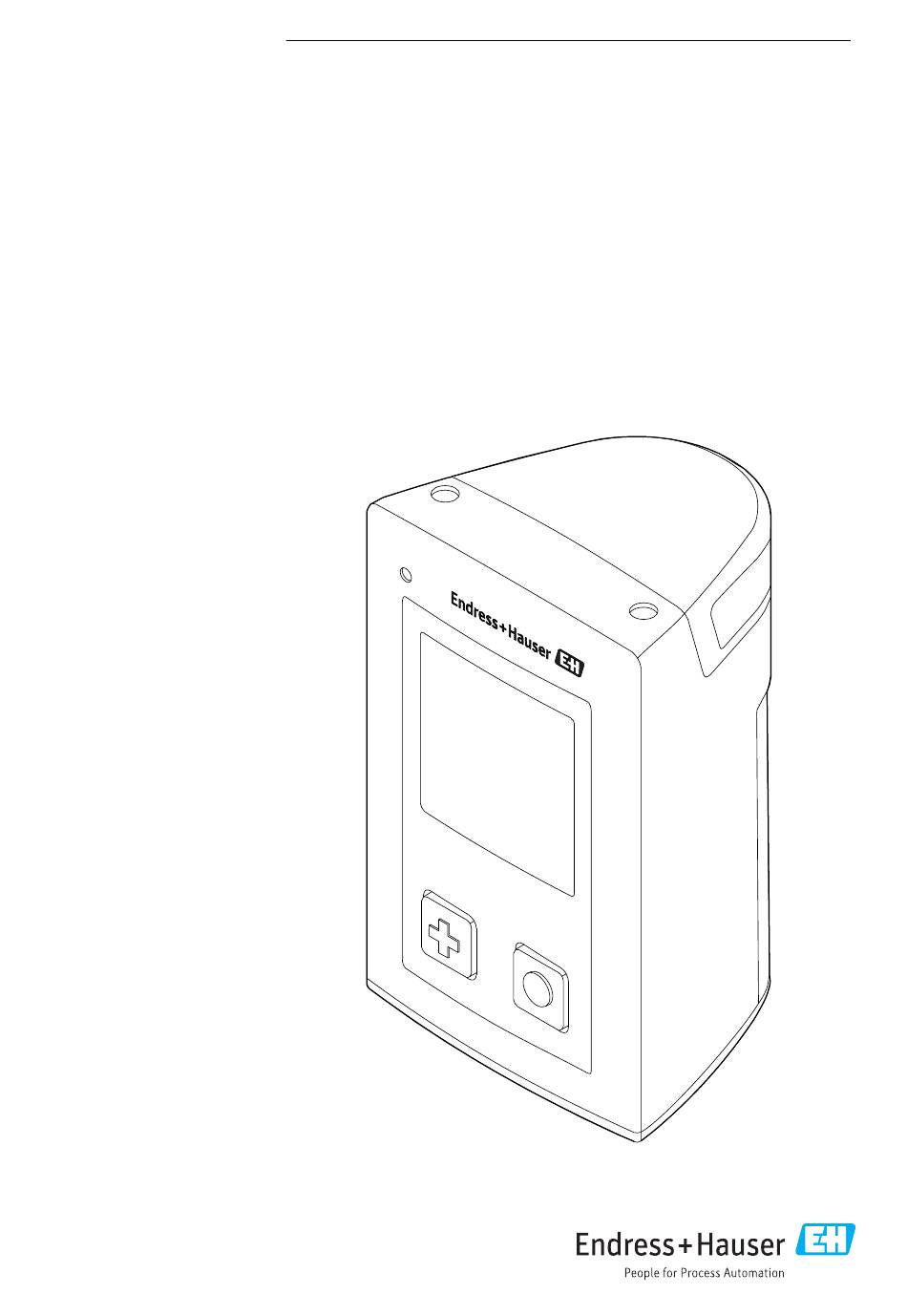

- Page 1 Products Solutions Services BA02002C/07/EN/02.20 71473446 2020-03-02 Operating Instructions Liquiline Mobile CML18 Multiparameter mobile device...
-
Page 3: Table Of Contents
Liquiline Mobile CML18 Table of contents Table of contents About this document ... 4 Diagnostics and Warnings ......4 troubleshooting . -
Page 4: About This Document
About this document Liquiline Mobile CML18 About this document Warnings Structure of information Meaning This symbol alerts you to a dangerous situation. DANGER Failure to avoid the dangerous situation will result in a fatal or serious injury. Causes (/consequences) If necessary, Consequences of non- compliance (if applicable) ‣... -
Page 5: Symbols On The Device
Liquiline Mobile CML18 About this document Symbols on the device Symbol Meaning Reference to device documentation Endress+Hauser... -
Page 6: Basic Safety Instructions
The battery may only be changed directly at the manufacturer' s premises or by the service organization. Designated use The Liquiline Mobile CML18 is a multiparameter mobile device for the connection of digital sensors with Memosens technology and optional operation by smartphone or other mobile devices via Bluetooth. -
Page 7: Product Safety
Liquiline Mobile CML18 Basic safety instructions Ensure that electrical cables and hose connections are undamaged. Do not operate damaged products, and protect them against unintentional operation. Label damaged products as defective. During operation: ‣ If faults cannot be rectified: products must be taken out of service and protected against unintentional operation. -
Page 8: Product Description
Product description Liquiline Mobile CML18 Product description Product design A0040968 1 CML18 Protection cap Display screen with automatic screen rotation "Select" button "Next" button Memosens connection Area for wireless charging Status LED M12 connection Endress+Hauser... - Page 9 Liquiline Mobile CML18 Product description 3.1.1 Measuring parameters The mobile device is designed for digital Memosens sensors with an inductive plug-in head and fixed cable sensors with the Memosens protocol and no external power supply: • pH • ORP • pH/ORP combination sensors •...
-
Page 10: Incoming Acceptance And Product Identification
Incoming acceptance and product identification Liquiline Mobile CML18 Incoming acceptance and product identification Incoming acceptance Verify that the packaging is undamaged. Notify the supplier of any damage to the packaging. Keep the damaged packaging until the issue has been resolved. -
Page 11: Scope Of Delivery
Dieselstraße 24 D-70839 Gerlingen Scope of delivery The scope of delivery comprises: • 1 Liquiline Mobile CML18 • 1 set of Operating Instructions in German • 1 set of Operating Instructions in English Inductive charger and power unit are available separately. - Page 12 Incoming acceptance and product identification Liquiline Mobile CML18 4.4.3 ISED Canada This device complies with ISED’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 13: Installation
Liquiline Mobile CML18 Installation Installation Installation conditions 5.1.1 Dimensions 54 (2.13) A0041013 2 Dimensions: mm (in) Endress+Hauser... -
Page 14: Electrical Connection
Electrical connection Liquiline Mobile CML18 Electrical connection Connecting the sensor 6.1.1 Connecting the Memosens sensor directly A0040973 3 Sensor connection Insert the sensor into the Memosens connection. Click the Memosens connection into place. 6.1.2 Connecting the Memosens sensor with the M12 fixed cable connection... -
Page 15: Charging The Device
Liquiline Mobile CML18 Electrical connection 6.1.3 Connecting the sensor via the Memosens M12 cable A0040974 A0040972 A0041005 4 Cable connection Remove the protection cap. Attach the M12 cable. Screw on the M12 cable. Insert the sensor into the Memosens connection. -
Page 16: Ensuring The Degree Of Protection
Electrical connection Liquiline Mobile CML18 A0040975 5 Inductive charging Connect the charger to the power source. Place the device with the charging side on the charger. Charging begins and the charging state is indicated on the display. Ensuring the degree of protection... -
Page 17: Operation Options
Liquiline Mobile CML18 Operation options Operation options Overview of operation options Operation and settings via: • Internal operating menu with keys • SmartBlue App → 20 7.1.1 Display and operating elements A0040996 6 Overview of display and operating elements Display "Select"... - Page 18 Operation options Liquiline Mobile CML18 7.1.2 Structure and function of the operating menu Menu level 1 Menu level 2 Menu level 3 Menu level 4 Power-off Application Data logger Data logger Log interval GrabSample ID GrabSample ID Increment Decrement Erase data...
- Page 19 Liquiline Mobile CML18 Operation options Display structure A0041052 7 Schematic representation of the display structure Menu path/title of measuring screen Bluetooth status Battery level, charging information NAMUR indicator * Measuring screen NAMUR indicator Status The device and sensor are working reliably.
- Page 20 Operation options Liquiline Mobile CML18 Structure of the measurement window The measurement window has 3 measuring screens, which the user can scroll through: Measuring screen (1 of 3) Measuring screen (2 of 3) Measuring screen (3 of 3) Main value...
- Page 21 Liquiline Mobile CML18 Operation options A0029747 9 SmartBlue App icon Bluetooth must be enabled on both devices. Enable Bluetooth → 25 CML18_M41073505G11 A0041291 10 SmartBlue App Livelist The Livelist displays all of the devices that are within range.
- Page 22 Operation options Liquiline Mobile CML18 The current measured values are displayed in the Home view. The device information (device tag, serial number, firmware version, order code) is also displayed. CML18_M41073505G11 M41073505G11 M41073505G11 01.01.00-0012 CML18- A0041293 11 Home view of SmartBlue App with current measured values...
- Page 23 Liquiline Mobile CML18 Operation options CML18_M41073505G11 A0041294 12 Main menus of the SmartBlue App Guidance Diagnostics Application System Menu Function Guidance Contains functions involving a self-contained sequence of activities, e.g. for calibration (= "Wizard", guided operation). Diagnostics Contains information regarding operation, diagnostics and troubleshooting, as well as the configuration of the diagnostic behavior.
-
Page 24: Commissioning
Commissioning Liquiline Mobile CML18 Commissioning Preparatory steps Charge the device.→ 14 Connect the sensor.→ 14 Function check WARNING Connection errors The safety of people and of the measuring point is at risk! ‣ Put the device into operation only if you can answer yes to all the following questions. -
Page 25: Setting The Display Language
Liquiline Mobile CML18 Commissioning Setting the display language Navigate to: Display language Main menu >> System >> Display language Press to scroll through the predefined values. Description of setting Configuration options Change the language of the operating menu. • Deutsch •... - Page 26 Commissioning Liquiline Mobile CML18 Press to scroll through the predefined values. The following energy settings are available: • Power save w. charger (power saving with charger) • Power save w/o charger (power saving without charger) • Power-off w. charger (power off with charger) •...
- Page 27 Liquiline Mobile CML18 Commissioning Power-off w/o charger (power off without charger) Function description Configuration options Set the time until the device switches off automatically if it is running on the • 1 min battery. • 5 min • 15 min •...
- Page 28 Commissioning Liquiline Mobile CML18 8.6.7 Data logger Defining the log interval The log interval can only be changed if the data logger is deactivated. Navigate to: Log interval Main menu >> Application >> Data logger >> Log interval Press to scroll through the predefined values.
-
Page 29: Operation
Liquiline Mobile CML18 Operation Operation Reading measured values Measuring screens are shown on the display when a sensor is connected. For each sensor, there are 3 measuring screens with different measured variables→ 20. To scroll through the measuring screens: ‣... - Page 30 Operation Liquiline Mobile CML18 A0042257 Select Guidance. A0042258 Select Data transfer. Endress+Hauser...
- Page 31 Liquiline Mobile CML18 Operation A0042261 Select Next to continue. A0042260 Endress+Hauser...
- Page 32 Operation Liquiline Mobile CML18 Select Data source. Select Grab sample logger for saved individual measured values. Select Cont. data logger for data records of the data logger. Press Ok to confirm. Select to discard changes and close the selection menu.
- Page 33 Liquiline Mobile CML18 Operation A0042265 12. Use Share ZIP file... to save the exported data records locally or to send them. 13. Select Finish to complete the export. 9.1.5 Deleting saved measured values ‣ Navigate to: Erase data Main menu >> Application >> Data logger >> Erase data The data are divided into 2 categories: •...
- Page 34 Operation Liquiline Mobile CML18 9.1.6 Switching off the device Navigate to: Power-off Main menu >> Power-off Press to switch off the device. Endress+Hauser...
-
Page 35: Diagnostics And Troubleshooting
Liquiline Mobile CML18 Diagnostics and troubleshooting Diagnostics and troubleshooting 10.1 General troubleshooting 10.1.1 Service interface The service interface may only be used by the manufacturer' s service staff. The device can be connected to a computer for service purposes via the M12 connection. -
Page 36: Maintenance
Maintenance Liquiline Mobile CML18 Maintenance 11.1 Maintenance tasks 11.1.1 Cleaning ‣ Only clean with a damp cloth and commercially available cleaning agents. The device is resistant to: • Ethanol (for a short time) • Soap-based household cleaning agents • Dishwashing detergent... -
Page 37: Repair
The product must be returned if repairs or a factory calibration are required, or if the wrong product was ordered or delivered. As an ISO-certified company and also due to legal regulations, Endress+Hauser is obliged to follow certain procedures when handling any returned products that have been in contact with medium. -
Page 38: Technical Data
Technical data Liquiline Mobile CML18 Technical data 14.1 Input 14.1.1 Input power Wireless charging M12 connection 5 V; 0.6 A 14.1.2 Measured variables • pH • ORP • pH/ORP • Oxygen • Conductivity • Temperature 14.1.3 Measuring range → Documentation of the connected sensor 14.1.4... -
Page 39: Environment
Liquiline Mobile CML18 Technical data 14.3.4 Overvoltage protection IEC 61 000-4-4 with 0.6 kV IEC 61 000-4-5 with 2.0 kV 14.3.5 Sensor connection Sensors with Memosens technology 14.3.6 Cable specification Digital measuring cable CYK10-Axx2+x Digital measuring cable CYK20-AAxxC1 14.4 Environment 14.4.1... -
Page 40: Mechanical Construction
Technical data Liquiline Mobile CML18 14.5 Mechanical construction 14.5.1 Materials Components Material Housing Display window, light guide PMMA Buttons, cap M12 connection CuZn, nickel-plated 14.5.2 Impact loads The product is designed for mechanical impact loads of 1 J (IK06) as per the requirements of EN61010-1. -
Page 41: Index
Liquiline Mobile CML18 Index Index Input Measured variables ... . . 38 Accessories ..... 37 Ambient temperature . - Page 42 Index Liquiline Mobile CML18 Saving the measured value Data logger ....29 Grab Sample ....29 Scope of delivery .
