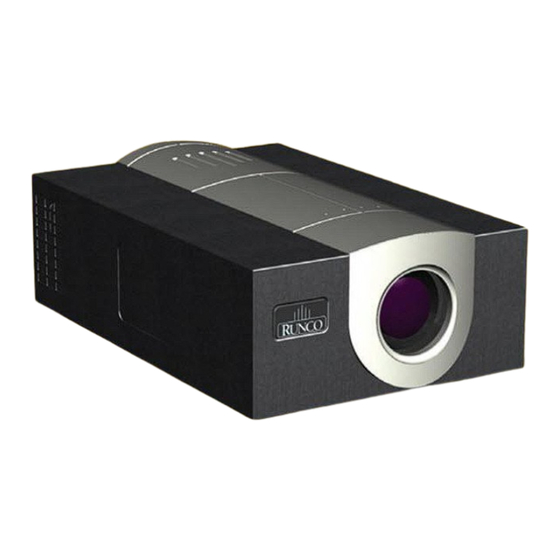

- Page 1 NSTALLATION ANUAL DLC-2000HD Projection System Liquid Crystal Projector & Pixel-For-Pixel Controller with Vivix Technology...
-
Page 3: Table Of Contents
Table of Contents Introduction ......................3 Warnings and Safety Precautions ..............4 Warning ......................5 Safety Tips ...................... 5 Feature and Benefits ..................6 Projector Description ..................7 LED View ......................7 Side View ......................7 Projector Placement and Offset Information ..........8 Ceiling Mount Configuration................ -
Page 5: Introduction
Congratulations on your purchase of the DLC-2000HD system! This system was designed to be a fully integrated system, which includes the DLC-2000HD Projector and the unique PFP™ Controller. This system is extremely easy to use, as all of the controls for the Projector have been integrated into the PFP Controller for ease of operation and control. -
Page 6: Warnings And Safety Precautions
Warnings and Safety Precautions CAUTION: To turn off main power, be sure to remove the plugs from power outlets. The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible. REMARQUE: Pour mettre l’appareil hors circut, s’assurer de retirer la fiche de la prise d’alimentation. La prise d’alimentation doit être installé... -
Page 7: Warning
· If the power cord is damaged or frayed in any way, electrical shock and/or fire may result. Please do not place objects on the power cord, and keep the cord away from heat-emitting devices. Should the power cord become damaged in any way, please contact your Runco dealer for a replacement cord. -
Page 8: Feature And Benefits
Features and Benefits The DLC-2000HD system is a very unique system and has many important features, including: · Fully integrated system, with the Controller being the control center for the system. All video and automation controls need only be connected to the Controller; no need to control the Projector separately! ·... -
Page 9: Projector Description
Projector Description LED View Lamp Ready Temp. Standby warning warning Lamp warning: Lights up YELLOW when Ready: Lights GREEN when the Projector the lamp has reached its useable life is ready for use. expectancy (1500 hours). Standby: Lights when Projector is in the Temp warning: Flashes RED when the standby mode;... -
Page 10: Projector Placement And Offset Information
Projector Placement and Offset Information Ceiling Mount Configuration 1.644 9.315 Floor Mount Configuration Lens Shift Adjustment / Vertical Offset Projection Lens can be moved up and down with the vertical Lens Shift function. This function makes it easy to provide the projected image where you want. The offsets shown below are with the Projector level. -
Page 11: Front And Rear Panel Description
Front and Rear Panel Descriptions Front Panel ratio < > ratio P I X E L F O R P I X E L IR RECEIVER Receives the infrared signal from the remote control. POWER BUTTON Turns the unit ON or OFF. The Main Power switch on the rear of the unit must be on first for this button to be active. POWER INDICATOR When the PFP Controller is ON, this LED will illuminate GREEN. -
Page 12: Rear Panel
This is for systems using serial (RS-232) to control the PFP Controller. COMLINK OUT The output of this jack must be connected to the ComLink input of the DLC-2000HD Projector. If this is not connected, neither the Controller or the Projector can operate. - Page 13 11. POWER INPUT Plug in Main Power here. 12. 115 VAC FUSE This is the main AC Input fuse (.5A/250V). 13. MAIN POWER SWITCH Disconnects or applies main power to the Controller.
-
Page 14: Remote Control Description
Remote Control Description A. IR OUTPUT INDICATOR Illuminates when a button is pressed, indicating that an IR signal is being transmitted. B. POWER BUTTON Toggles the power on and off. For a discreet on or off command, you can use the direct access buttons (see 'J'). Note: When the main AC power switch is first turned ON, the Controller will go through an initiation cycle for approximately 15 seconds. -
Page 15: Quick Set-Up Guide
SVHS player While there are many different ways to connect your source equipment to your PFP Controller, the examples shown above are the most common and are recommended by Runco. • COMPOSITE VIDEO INPUT: Composite video is the most common type of signal used, but is also the lowest in picture quality. -
Page 16: Overall Functional Description
Besides being the system's control center, the PFP Controller is also a high-quality scaler, which outputs all signals in the native resolution of the DLC-2000HD Projector. The Composite, S-video and Component (non-progressive) signals are sent through the PFP Controller's 10-bit decoder, de-inter- laced then scaled to the native resolution of the Projector. -
Page 17: Menu Description And Navigation
Lamp Hours Ceiling/Rear (see page 19) The menu tree above is an overall glance at the menu system in the DLC-2000HD. The description of the menus and their functions are below. Main Menu The main menu includes three main sections:... -
Page 18: Picture Quality Adjustments
Picture Quality Adjustments Main Menu INPUT SELECT Tint Color Standard Video: Brightness Composite Contrast S-Video Sharpness Luma Enhance* Component Red Gain Chroma Enhance* Green Gain Color Balance* High Definition: Blue Gain Component sub-menu ASPECT RATIO SELECT * Menus are only available during “Installer Mode”. INSTALLER ADJUST* Picture quality adjustments (also known as "Front Panel Controls") are the controls that change different param- eters of the image such as the amount of color, black level, etc. - Page 19 CONTRAST adjusts the white level of the image. Adjust contrast until there is a distinct definition between the two brightest bars. NOTE: For best results, Runco recommends that CONTRAST be set to 'midrange' or very close to it. BRIGHTNESS adjusts the black level of the image. To adjust this properly, adjust BRIGHTNESS until the 'below black' bar JUST disappears, but the 'above black' bar is still barely visible.
- Page 20 SHARPNESS adjusts the amount of high-frequency detail in the image. This can be adjusted to the preference of the user. Keep in mind that when SHARPNESS is decreased, fine details in the image will become 'soft'; when it is increased, fine details will become sharper but will also make the picture appear 'noisy' if adjusted too high.
-
Page 21: Installation Menu
Installation Menu The Installation menu is where you can adjust the image orientation, adjust keystone and even check the age of the lamp in the Projector. When the Controller is turned on for the first time, the INSTALLATION item will not appear in the main menu. -
Page 22: Keystone
Lamp Hours Lamp Hours displays the number of hours the lamp has been on. With the DLC-2000HD, the lamp life is around 1500 hours. This should be checked periodically to keep track of the lamp's age, and when the lamp is around 1500 hours old, a new one should be installed to prevent lamp failure, including implosion. -
Page 23: Basic Troubleshooting Tips
The following is a basic troubleshooting guide that can assist you in resolving typical problems may result in normal operation. If you have encountered problems that are not listed in this guide, please contact your Runco dealer for assistance. PROBLEM... - Page 24 The image appears too · Contrast is set too high. · Turn down the CONTRAST bright, and there is a loss · The DVD player is set for a level on the Controller. Mid- of definition in the bright- high-level output. range is 32;...
-
Page 25: Rs-232 Communications
RS-232 Communications General Information Baud rate: 9600 (fixed) Bits: 8 No Parity All protocol in ASCII format RS-232 input connector pin numbers: TxD= Pin# 2 RxD= Pin# 3 GnD= Pin# 5 Command format (single command): command value (i.e. brightness 30). NOTE: A space (not an underscore) or comma may be used between the command and its value. -
Page 26: Rs-232 Commands
RS-232 Commands COMMAND PARAMETER Value stored? DESCRIPTION (min/max) Turns Controller on Turns Controller off COMPOSITE Selects Composite Video input SVIDEO Selects S-Video input COMPONENT Selects Component Video input HDCOMPONENT Selects Component HDTV input RGB HDTV Selects RGB HDTV input ANAMORPHIC Selects Anamorphic aspect ratio STANDARD Selects Standard(4:3) aspect ratio... - Page 27 COMMAND PARAMETER Value stored? DESCRIPTION (min/max) !STORE Stores the current set of values (all values) into non-volatile memory !RESTORE Restores the stored values !FACTORY Restores all values to factory default levels !STATUS Asks the Controller to provide the hardware information, current values and system status to the automation system !RESTART...
- Page 28 DLC-2000HD Projector Dimensions Top View 16.310 24.380 25.801 Front View 7.180 8.439 7.672 4.313 Optional Ceiling Mount Side View 9.315 1.644 Optional Ceiling Mount...
- Page 29 P I X E L F O R P I X E L Rear Panel 17" CAUTION RUNCO INTERNATIONAL RISK OF ELECTRIC SHOCK HAYWARD, CA DO NOT OPEN MADE IN USA AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR 3.025"...
-
Page 30: Dimensions
Specifications DLC-2000HD Projector: Projector Type: Native Resolution: 1366 x 768 Lamp: 250W Metal Halide Inputs: RGB/Component Bandwidth: 180 Mhz (RGB) Power Requirements: 100-120 VAC, 200-240 VAC 50/60 Hz (export version) Current: 3.3A (100-120 VAC), 1.7A (200-240 VAC) Power Consumption: 360W Dimensions: Width: 16.310 in./414 mm... - Page 31 Controller: Inputs: (1) Component, (1) S-Video, (1) Composite, (1) HDTV/Computer Input standards: NTSC/PAL/480p/720p/1080i/SVGA/XGA Output format: 1366 x 768 Bandwidth: Video inputs: 5.5 Mhz, HDTV/Computer: 100 Mhz Power Input: 120V (220V export model), 50/60 Hz Power Consumption: Control Options: RS-232, Infrared, Front Panel Operating Environment: 41°-95°F (5°-35°...
- Page 33 RUMA-006400 rev 1-02 Runco International 2463 Tripaldi Way Hayward, CA 94545 ph (510) 293-9154 fax (510) 293-0201 www.runco.com...
