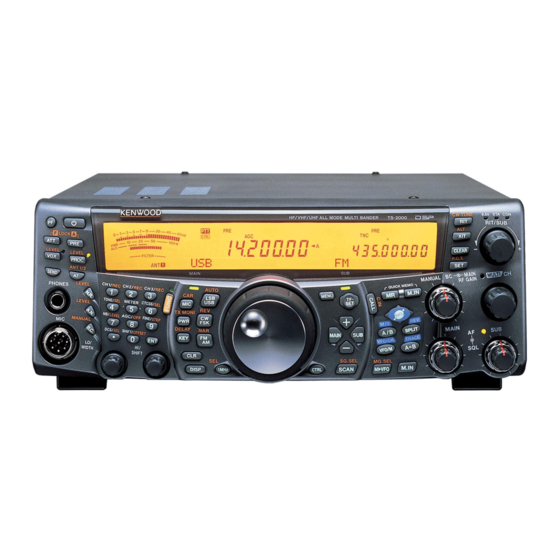

Kenwood TS-2000 Operation Procedure

Adjustment mode operation procedure
There is only one way to adjust the settings.
The only way to do so is with the adjustment Mode menu.
This menu has workt from 00 to 126.
TAKE CARE WITH IT USE AT YOUR OWN RISK!!!!!!!!!!!!!!!!!!!
Adjustment mode:
The TS 2000 can be adjusted manually (by turning a coil, trimmer, etc
or by setting the service adjustment mode (simply referred to as the
adjustment mode below)
adjustments items are shown in menu No: 00 to 126.
and all data are saved in the EEPROM (x53-391: IC7) :-)
To enter adjustment mode, the user firmware in the main unit must be
rewritten with adjustment firmware (The user firmware is the factory
setting)
MAKE SURE YOU HAVE THE USER FIRMWARE AS A BACK UP!!!!!!!!!!!!!!!!!!!
(we do not think we have to explane to you how to get the firmware
and how to upload it in the set in case of a crash if we have to do
that please do not start this procedure at all.!!!!!!!!!!!!!!!)
Oke let's go to step 2.
main way (frame) to do the job, only the main things are mentioned and
the explanation will be followed later on.
1) Checksum confirmation.
Switch the transceiver on while pressing and hold N.R.
and MIC/CAR keys.
2)Preparation of uploading data.
1. Access menu No. 56 and select 9600 bps, then switch the
transceiver OFF.
2. Back up the user data in the transceiver (menu configuration and
Memory channel daqta)
Run the programming software (W05-0855-00), then select "Menu/MRch
read from RADIO"
Name the file and save it somewhere where you can find it easily.
3)Uploading the the adjustment firmware
1.Turn the switch (S1) ON in TX-RX1 unit (X57-605 A).
2.Upload the adjustment firmware, using " adjust firmware write menu.
3.Turn the switch (S1) off in TX-RX1 unit (x57-605 A).
4)Turn the tranceiver ON while pressing A=B key to perform the full
reset.
