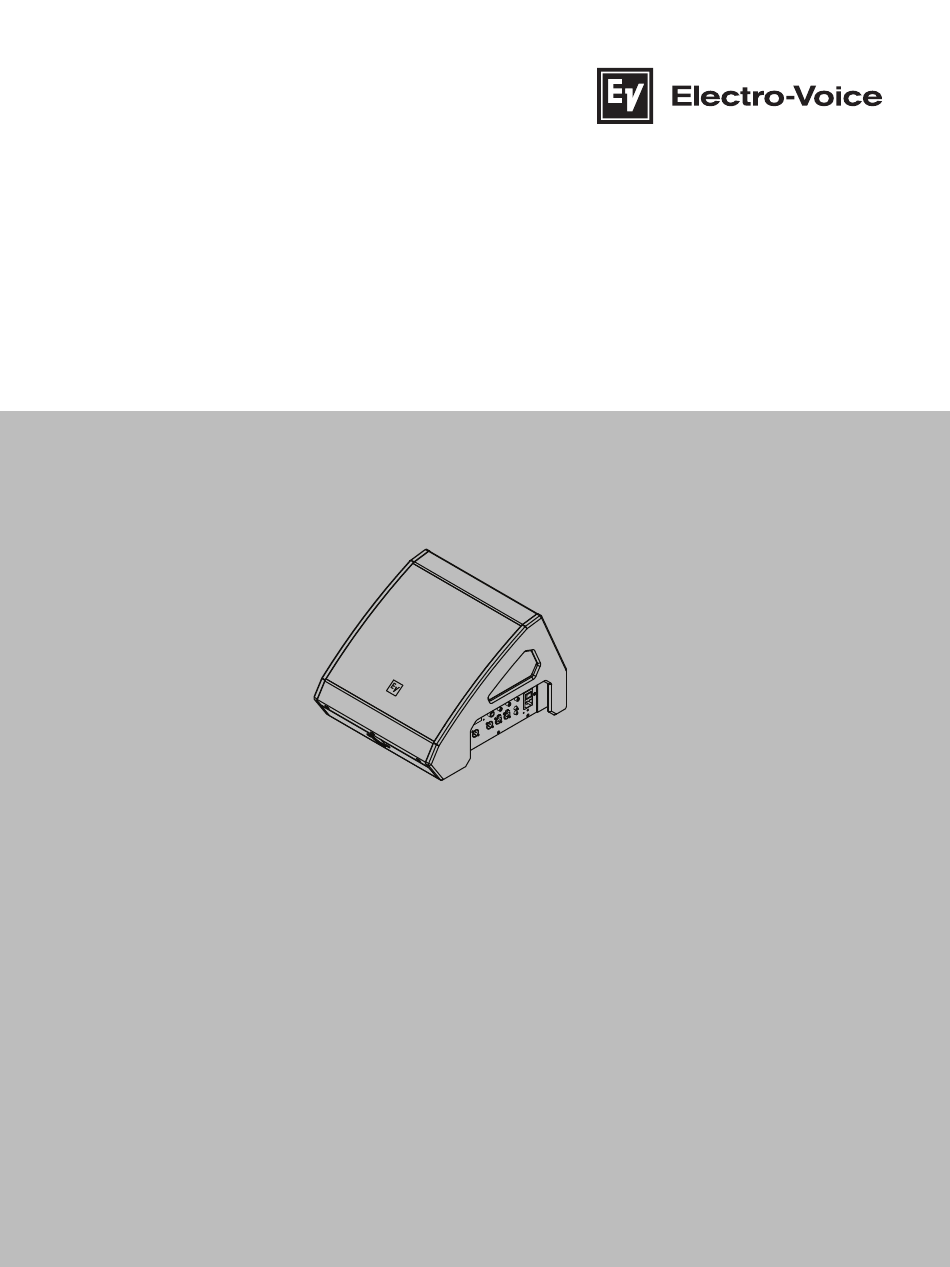

  • Page 1 PXM‑12MP Powered Monitor PXM‑12MP‑EU | PXM‑12MP‑US Installation manual...
  • Page 3: Table Of Contents

    Input panel and DSP Input panel controls System status DSP controls DSP control menu DSP parameter definitions Recommended configurations Dedicated monitor Stereo PA Main PA with subwoofer Troubleshooting Technical data Off Axis Response Dimensions Electro-Voice Installation manual 2019-10 | v01 | F.01U.363.983...
  • Page 4: Safety

    12. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 13. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 2019-10 | v01 | F.01U.363.983 Installation manual Electro-Voice...
  • Page 5: Fcc Information

    Consult the dealer or an experienced radio/TV/communications equipment technician. Precautions If an Electro-Voice loudspeaker is used outdoors on a sunny day, place the loudspeaker in a shaded or covered area. The loudspeaker amplifiers have protection circuits that temporarily shut the loudspeaker off when extremely high temperatures are reached.
  • Page 6: Notices

    | Safety PXM-12MP Powered Monitor Never expose an Electro-Voice loudspeaker to rain, water, or high moisture. Electro-Voice loudspeakers are easily capable of generating sound pressure levels sufficient to cause permanent hearing damage to anyone within normal coverage distance. Caution should be taken to avoid prolonged exposure to sound pressure levels exceeding 90 dB.
  • Page 7 PXM-12MP Powered Monitor Safety | en For use in China: CHINA ROHS DISCLOSURE TABLE Electro-Voice Installation manual 2019-10 | v01 | F.01U.363.983...
  • Page 8: Description

    Thank you for choosing an Electro-Voice powered loudspeaker system. Please take time to consult the manual to understand all the features built into your EV system and fully utilize its performance capabilities.
  • Page 9: Quick Setup

    INPUT 1 or INPUT 2. (Alternatively, a stereo RCA cable can be connected to INPUT 3) Adjust the associated INPUT LEVEL knob(s) to (infinity). Switch the MAINS IN power switch to Electro-Voice Installation manual 2019-10 | v01 | F.01U.363.983...
  • Page 10 Increase INPUT LEVEL until desired signal level is present on the LCD and not indicating CLIP. (Make sure that audio signal is present from the source) Increase MASTER VOLUME to desired output level. 2019-10 | v01 | F.01U.363.983 Installation manual Electro-Voice...
  • Page 11: Floor Monitor, Tripod, And Pole Mount Operation

    Feed the necessary cables through the cable routing hole to neatly and safely manage cable clutter. Power on the system and configure as outlined in the Quick setup section. Make sure that the DSP MODE is set to MONITOR 1, MONITOR 2, or GUITARCAB. Electro-Voice Installation manual 2019-10 | v01 | F.01U.363.983...
  • Page 12: Tripod

    Lift the monitor with two hands and set it onto the pole. Make sure that the pole goes into the pole cup. Make sure that the DSP MODE is set to TRIPOD. 2019-10 | v01 | F.01U.363.983 Installation manual Electro-Voice...
  • Page 13: Pole Mount With Subwoofer

    Make sure that the pole goes into the pole cup of the speaker. Make sure that the DSP MODE is set to TRIPOD. Set the SUB parameter according to the subwoofer specifications. Electro-Voice Installation manual 2019-10 | v01 | F.01U.363.983...
  • Page 14: Input Panel And Dsp

    IEC power cord to connect the system to a stable, grounded power source. Connect the device only to an electrical outlet that is capable of providing the voltage and current outlined on the product label and system specifications. 2019-10 | v01 | F.01U.363.983 Installation manual Electro-Voice...
  • Page 15: System Status

    INPUT LEVEL by rotating the corresponding INPUT LEVEL knob counter-clockwise. The PK status must be avoided at all times. Even momentary bursts of clipped signal can severely damage system components. Electro-Voice Installation manual 2019-10 | v01 | F.01U.363.983...
  • Page 16: Dsp Controls

    BASS 0 dB (Default) -10 dB to +6 dB OFF (Default) 80 Hz, 100 Hz, 120 Hz, 150 Hz, 200 Hz, ELX200-12SP, ELX200-18SP, EKX-15SP, EKX-18SP FEEDBACK OFF (Default) 70 Hz to 10kHz 2019-10 | v01 | F.01U.363.983 Installation manual Electro-Voice...
  • Page 17 STORE EXIT, 1, 2, 3, 4, 5, EXIT RECALL EXIT, 1, 2, 3, 4, 5, EXIT RESET RESET ALL NO (Default) SETTINGS? LOCK OFF (Default) INFO PXM-12MP <FIRMWARE VERSION> ©2019 Electro-Voice EXIT Electro-Voice Installation manual 2019-10 | v01 | F.01U.363.983...
  • Page 18: Dsp Parameter Definitions

    BASS - Used to adjust the low-frequency output of the system. SUB - Enables a high-pass filter at the specified cut-off frequency. If using an Electro-Voice subwoofer, select the appropriate model from the menu. If using other subwoofers, select the appropriate generic high-pass frequency.
  • Page 19 To reset the system to factory default settings follow these steps: From the DSP menu, select RESET. Select YES. INFO - Displays the product name, firmware version, and copyright information. EXIT - Returns the user to the HOME SCREEN. Electro-Voice Installation manual 2019-10 | v01 | F.01U.363.983...
  • Page 20: Recommended Configurations

    MODE: MONITOR 1 or MONITOR 2 SUB: Tab. 5.1: DSP settings for PXM-12MP Notice! For EVOLVE 50 settings, please see the EVOLVE 50 User Manual See also – DSP control menu, page 16 2019-10 | v01 | F.01U.363.983 Installation manual Electro-Voice...
  • Page 21: Stereo Pa

    INPUT 3 MIX OUT MIX OUT THRU THRU MAINS IN MAINS IN MODE: <TRIPOD> SUB: <OFF> MIX OUT: <R> Tab. 5.2: DSP settings for PXM-12MP See also – DSP control menu, page 16 Electro-Voice Installation manual 2019-10 | v01 | F.01U.363.983...
  • Page 22: Main Pa With Subwoofer

    MODE: TRIPOD SUB: ELX200-18SP Tab. 5.3: DSP Settings for PXM-12MP with ELX200-18SP subwoofer for stacked Notice! For ELX200 settings, please see the ELX User Manual. See also – DSP control menu, page 16 2019-10 | v01 | F.01U.363.983 Installation manual Electro-Voice...
  • Page 23: Troubleshooting

    VU meter indicator on the LCD screen. If the input (mixing VU meter bar is solid or the system indicates LIMIT, the console/preamp) is input or source level is too high. overdriven Electro-Voice Installation manual 2019-10 | v01 | F.01U.363.983...
  • Page 24 DSP menu is locked The Menu Lock Press and hold the MASTER VOL knob for 5 seconds. function has been turned on. A lock symbol displays on the LCD screen. 2019-10 | v01 | F.01U.363.983 Installation manual Electro-Voice...
  • Page 25: Technical Data

    (13.1 in x 16.1 in x 19.0 in) Net weight: 13.5 kg (29.8 lb) Shipping weight: 15.6 kg (34.3 lb) Power consumption: 100 - 240 V AC, 50 - 60 Hz, 0.8 - 0.5 A Electro-Voice Installation manual 2019-10 | v01 | F.01U.363.983...
  • Page 26 | Technical data PXM-12MP Powered Monitor Frequency Response Tripod Mode, Full Space Monitor 1 Preset, Half Space Monitor 2 Preset, Half Space Guitar Cab Preset, Half Space Frequency (Hz) 2019-10 | v01 | F.01U.363.983 Installation manual Electro-Voice...
  • Page 27: Off Axis Response

    0dB, -6dB, and -24dB Bold 100Hz 125Hz 160Hz H0° H0° H0° V0° V0° V0° 200Hz 250Hz 315Hz H0° H0° H0° V0° V0° V0° 400Hz H0° 500Hz H0° 630Hz H0° V0° V0° V0° Electro-Voice Installation manual 2019-10 | v01 | F.01U.363.983...
  • Page 28 1.25kHz H0° V0° V0° V0° 1.6kHz H0° 2kHz H0° 2.5kHz H0° V0° V0° V0° 3.15kHz H0° 4kHz H0° 5kHz H0° V0° V0° V0° 6.3kHz 8kHz 10kHz H0° H0° H0° V0° V0° V0° 2019-10 | v01 | F.01U.363.983 Installation manual Electro-Voice...
  • Page 29: Dimensions

    PXM-12MP Powered Monitor Technical data | en Dimensions 482,2 mm (18.9”) 436 mm (17.2”) 409 mm (16.1”) Electro-Voice Installation manual 2019-10 | v01 | F.01U.363.983...
  • Page 30 | Technical data PXM-12MP Powered Monitor 2019-10 | v01 | F.01U.363.983 Installation manual Electro-Voice...
