ZXA5 Series Loudspeaker
ZXA5‑60, ZXA5‑90
en
User manual

Advertisement

Table of Contents
loading

Related Manuals for Electro-Voice ZXA5 Series

Summary of Contents for Electro-Voice ZXA5 Series

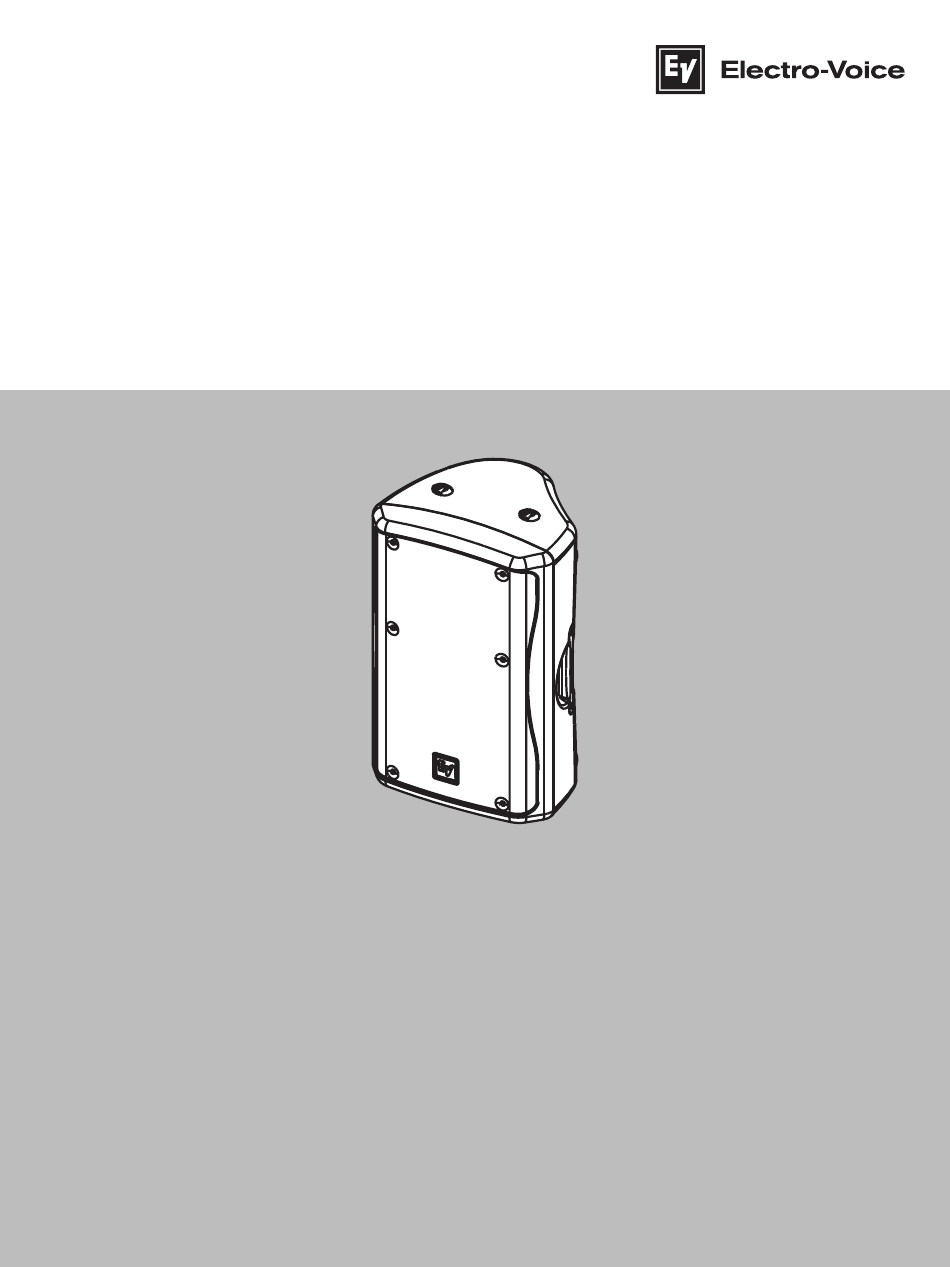

  • Page 1 ZXA5 Series Loudspeaker ZXA5‑60, ZXA5‑90 User manual...

  • Page 3: Table Of Contents

    ZXA5 Series Loudspeaker Table of contents | en Table of contents Safety Important safety instructions Important service instructions FCC information Precautions Description System features System coverage System setup Amplifier controls Installation Suspending the loudspeakers 4.1.1 Suspending the loudspeaker using single-stud rigging kits 4.1.2...

  • Page 4: Safety

    | Safety ZXA5 Series Loudspeaker Safety Important safety instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

  • Page 5: Important Service Instructions

    Precautions When setting up, installing and using the Electro-Voice ZxA5 speaker system, there are a number of precautions that you should follow: –...
  • Page 6 Electro-Voice strongly recommends that the system be inspected at least once a year. If any sign of weakness or damage is detected, remedial action should be taken immediately. There are data sheets for each Electro-Voice Suspension and Array Kit that should also be consulted prior to suspending speakers.

  • Page 7: Description

    When the ZxA5 is driven to amplifier clip the sound quality decreases; at this point the drive level should be turned down. Electro-Voice appreciates our loyal ZxA5 users and would like to obtain the best sonic results with long term reliability. For applications requiring heavy low-frequencies, we recommend using a suitable subwoofer with the ZXA5 operating in high pass mode (see page 6).

  • Page 8: System Coverage

    | Description ZXA5 Series Loudspeaker System coverage ZXA5-60 60° x 60° coverage for long-throw and cluster applications Figure 2.1: 3D EASE Directivity Balloon, ZXA5-60, 60° x 60° coverage ZXA5-90 90° x 50° coverage for wider coverage or shorter distances Figure 2.2: 3D EASE Directivity Balloon, ZXA5-60, 90° x 50° coverage...

  • Page 9: Amplifier Controls

    ZXA5 Series Loudspeaker Amplifier controls | en Amplifier controls Figure 3.1: ZXA5 amplifier panel Caution! Before connecting or disconnecting any plugs, make sure to set the level control to its counterclockwise stop, which prevents the system and audience from contact pops and noise.
  • Page 10 | Amplifier controls ZXA5 Series Loudspeaker Control Function OUTPUT signal connector Output is full bandwidth pass through. Crossover mode switch Selects between 40 Hz highpass filter for Fullrange use, and 100 Hz highpass filter for use with a subwoofer. It is not recommended that you use a ZxA5 in Fullrange mode with subwoofers.
  • Page 11 ZXA5 Series Loudspeaker Amplifier controls | en Caution! Blue and grey PowerCon power connector shall not be engaged or disengaged when under load or live. Caution! This appliance has no user-serviceable parts inside. Leave any servicing and maintenance to qualified service technicians only.

  • Page 12: Installation

    | Installation ZXA5 Series Loudspeaker Installation Suspending the loudspeakers ZxA5 enclosures have five (5) steel anchor points internally mounted on the top, bottom, and rear. Single stud fittings are attached to these anchor plates and used as suspension points.

  • Page 13: Suspending The Loudspeaker Using Single-Stud Rigging Kits

    ZXA5 Series Loudspeaker Installation | en Figure 4.1: ZXA5 M8 suspension points (top, handle and rear) To use the (2) M8 suspension points on the bottom of the enclosure: Remove the decal. Figure 4.2: ZXA5 M8 suspension points (bottom) Notice! The shaft length of the eyebolts cannot exceed 20 mm on bottom M8 suspension points.
  • Page 14 | Installation ZXA5 Series Loudspeaker Suspending using included single-stud anchor plates Kit used (left): SSK-1 Single-Stud Rigging Kit (x1). Kit used (right): SSK-1 Single-Stud Rigging Kit (x2) and EBK-3 Forged M8 Eyebolt Kit (x1). Notice! The EBK-3 Forged M8 Eyebolt Kit is placed on the bottom of top enclosure.

  • Page 15: Suspending Horizontally

    ZXA5 Series Loudspeaker Installation | en Suspending upside-down using included single-stud anchor plates and single-stud rigging Kits used: RK-Z Single-Stud Anchor Plate Kit (x1) and SSK-1 Single-Stud Rigging Kit (x1). Remove decals. Attach the single-stud anchor plates removed from the top of the enclosure or optional RK-Z Kit (shown) or eyebolts (not shown).
  • Page 16 | Installation ZXA5 Series Loudspeaker Notice! When suspending from the rear M8 suspension points, it is recommended that the (2) left M8 suspension points are used on the rear of the enclosure for best weight distribution in relation to the enclosure’s center of gravity.

  • Page 17: Arraying And Suspending Using Mounting Or Array Brackets

    ZXA5 Series Loudspeaker Installation | en Assembling the HA-5 adaptor for use with VSA-1 Strong-Arm Mount and TCA-1 Truss Clamp Adapter Kits used: HA-5 Handle Adaptor (x1), VSA-1 Strong-Arm Mount (x1) and TCA-1 Truss-Clamp Adaptor (x1) Remove the handle bolts and the handle.
  • Page 18 | Installation ZXA5 Series Loudspeaker Notice! Please consult TMK Series User Instructions for additional information. Arraying and suspending the loudspeaker Kit used: MB5 Wall/Ceiling Mounting Bracket (wall configuration). Kit used: MB5 Wall/Ceiling Mounting Bracket (ceiling configuration). Kits used: CB5 Array Bracket Kit (x1) and SSK-1 Single-Stud Rigging Kit (x1).
  • Page 19 ZXA5 Series Loudspeaker Installation | en Kits used: CB5 Array Bracket Kit (x2), SSK-1 Single-Stud Rigging Kit (x2) and EBK-3 Forged M8 Eyebolt Kit (x1). Kits used: CB5 Array Bracket Kit (x4) and EBK-3 Forged M8 Eyebolt Kit (x1) Electro-Voice 2022-06 | 07 | F.01U.177.795...

  • Page 20: Floor Monitor

    | Installation ZXA5 Series Loudspeaker Notice! CB5 Array Kits can be used for 60° or 90° splay angles. Notice! Do not exceed working load limit for individual rigging points when arraying the ZxA5. Refer to Suspending the loudspeakers, page 12 .
  • Page 21 ZXA5 Series Loudspeaker Installation | en Remove the monitor foot screws. Rotate the monitor feet 180°. Re-attach the monitor feet and screws. Caution! When flipped to 55° the feet protrude from the enclosure. Care should be taken when moving the enclosure, since damage to the feet or enclosure might occur if the system is dropped or slid across a rough surface.

  • Page 22: Technical Data

    | Technical data ZXA5 Series Loudspeaker Technical data Frequency response (-3 dB) : 58 Hz - 18 kHz Frequency range (-10 dB) : 50 Hz - 20 kHz Max calculated SPL: 133 dB Horizontal coverage: 90° x 60° Vertical coverage: 50° x 60°...

  • Page 23: Dimensions

    ZXA5 Series Loudspeaker Technical data | en Dimensions Electro-Voice 2022-06 | 07 | F.01U.177.795 User manual...

  • Page 24: Block Diagram

    | Technical data ZXA5 Series Loudspeaker Block diagram 2022-06 | 07 | F.01U.177.795 Electro-Voice User manual...

  • Page 25: Frequency Response, Beamwidth And Directivity

    ZXA5 Series Loudspeaker Technical data | en Frequency response, beamwidth and directivity Frequency ZXA5-60 ZXA5-90 response Full Range Mode, Full Space Full Range Mode, Full Space High Pass Mode, Full Space High Pass Mode, Full Space 1000 10000 20000 1000...
  • Page 26 | Technical data ZXA5 Series Loudspeaker Accessory model Description Part no. CB5-B Array Bracket Kit, Black Finish 301625-001 CB5-W Array Bracket Kit, White Finish 301625-002 MB5-B Wall/Ceiling Mounting Bracket Kit, Black 301626-001 Finish MB5-W Wall/Ceiling Mounting Bracket Kit, White...

  • Page 27: Painting The Loudspeakers

    ZXA5 Series Loudspeaker Painting the loudspeakers | en Painting the loudspeakers Warning! It is critical to the system’s operation that all transducers and exposed electrical components be masked off prior to painting. Painting a ZxA5 enclosure The ZxA5 loudspeaker enclosures are made of a high performance polypropylene material.
  • Page 28 | Painting the loudspeakers ZXA5 Series Loudspeaker 2022-06 | 07 | F.01U.177.795 Electro-Voice User manual...
  • Page 29 ZXA5 Series Loudspeaker Painting the loudspeakers | Electro-Voice 2022-06 | 07 | F.01U.177.795 User manual...
  • Page 30 | Painting the loudspeakers ZXA5 Series Loudspeaker 2022-06 | 07 | F.01U.177.795 Electro-Voice User manual...
  • Page 32 Bosch Sicherheitssysteme GmbH Bosch Security Systems, LLC Robert-Bosch-Ring 5 12000 Portland Avenue South 85630 Grasbrunn Burnsville MN 55337 Germany www.boschsecurity.com www.electrovoice.com © Bosch Sicherheitssysteme © Bosch Security Systems, GmbH, 2022 LLC, 2022 202206241033...
