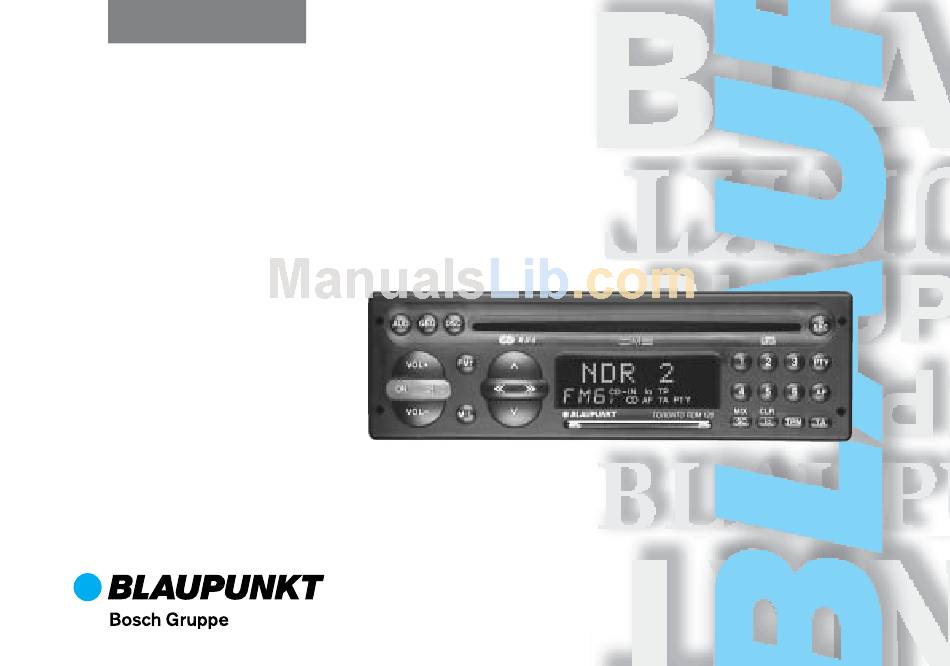

- Page 1 Radio / CD Toronto RDM 126 Operating instructions...
-
Page 3: Table Of Contents
Contents Quick reference ... 31 Important notes ... 37 Precautions ... 37 Traffic safety ... 37 Installation ... 37 Telephone mute ... 37 Accessories ... 37 KeyCard theft protection system ... 38 Putting the unit into operation ... 38 Removing the KeyCard ... 38 “Training”... -
Page 4: Quick Reference
Quick reference 1 Switching on/off with the ON button: Press ON. When switching the set on with the ON button, the KeyCard has to be insert- ed. The unit will play with the pre-ad- justed volume. Switching on/off with the KeyCard: The set has to be turned on via the ON button. - Page 5 6 Rocker switch Radio operation Station search Down <</>> Up/Down in short intervals when AF is off <</>> To scroll through the station net- works when AF is on, e.g. NDR 1, 2, 3, 4, N-JOY, FFN, ANTENNE ..CD operation Title selection Down...
- Page 6 7 Display e f g i h j a) NDR2 - Station name b) VIVALDI - CD name or c) 1 : 52 - CD time (playback time) and number for changer op- eration (optional) d) FM - Waveband e) 6 - Preset button (1-6) f) I, II, T - Memory bank I, II or...
- Page 7 CD-Scan Press SC/MIX for approximately two seconds until you hear a beep. “CD-SCAN” appears in the display. The unit will scan all CD titles. To stop CD-Scan: Press SC/MIX once again. Changer (CDC) operation (optional) MIX CD The CD titles will be played at random. The individual discs are selected in nu- meric order.
- Page 8 CDC operation (optional) To switch between the name, time (playback time) and number (CD number) display modes: Press AF briefly. > PTY (Programme Type) In the PTY mode, the preset buttons become programme type buttons. With each preset you can select one programme type, such as for example NEWS, SPORT, POP MUSIC, EDUCATE, etc.
- Page 9 C GEO To adjust the balance (left/right) and fader (front/rear) with the rocker switch. Fader front Fader rear Balance left Balance right The last setting will be stored automat- ically. To switch off GEO: Press button once again. If the setting remains unchanged with- in four seconds, the display will switch back to the previous condition.
-
Page 10: Important Notes
TA button. Accessories Use only the accessories and spare parts approved by Blaupunkt. You can use the following Blaupunkt prod- ucts with this car stereo: Changer CDC A 05 or CDC F 05 Remote control... -
Page 11: Keycard Theft Protection System
KeyCard theft protection system This car radio is supplied with one KeyCard as standard, though it can also be operated with a second card. If you have lost your KeyCard or if it was damaged, you can buy a new one from your specialised dealer. -
Page 12: Short Additional Memory (S.a.m.)
CD, or CDC (AUX) AUX is only available if no Blaupunkt chang- er CDC A05 or CDC F05 is connected. “AUX ON” must be adjusted in the DSC menu. The CD mode is only available if a disc is inserted. -
Page 13: Radio Operation With Rds
Radio operation with RDS (Radio Data System) The Radio Data System offers you more convenience when listening to FM radio sta- tions. More and more radio stations have begun to broadcast RDS information alongside their programmes. As soon as a programme has been identi- fied, the station name including a regional identifier, if applicable, will appear in the dis- play, for example, NDR1 NDS (regional pro-... -
Page 14: Manual Tuning With
Seek tuning Down Down in short intervals (“AF” must be switched off) Up in short intervals (“AF” must be switched off) Manual tuning with << >> You can also tune in a station manually. Condition: AF and PTY must be switched off (i.e. the symbols do not light up in the display). -
Page 15: Automatically Storing The Strongest Stations With Travelstore
Automatically storing the strongest stations with Travelstore You can automatically store the six most powerful FM stations of your current recep- tion area sorted according to their signal strength. This function is particularly con- venient on longer trips. • Press the FM button for two seconds. -
Page 16: Switching From Stereo To Mono (Fm)
Switching from stereo to mono (FM) If reception is poor, you may get better sound quality by switching to mono: • Press the lo button for approximately two seconds. With mono playback, the stereo sign disappear from the display. Each time the radio is switched on, stereo playback is activated. -
Page 17: Storing Programme Types
If the system is unable to find a station of- fering the selected programme type, the dis- play will show “NO PTY” and a beep tone will be released. The station received be- fore starting seek tuning will be tuned in. You can assign different programme types to each preset position. -
Page 18: Receiving Traffic Programme Stations With Rds-Eon
During CD or CDC operation, the set will also switch to the programme offering the selected PTY within the broadcasting net- work. After the PTY programme the system will remain in the radio mode. Notice: As earlier mentioned, these functions are currently only supported by a limited number of RDS stations. -
Page 19: Switching The Warning Beep Off
Switching the warning beep off a) Tune into another station offering traf- fic information: • Press the rocker switch or • press a preset button which has a traffic programme station allocated to it. Alternatively: b) Switch off the priority for traffic an- nouncements: •... -
Page 20: Cd And Cdc Changer Operation (Optional)
CD and CDC changer operation (optional) This car stereo is equipped with a CD drive. In addition, it offers you convenient control of a Blaupunkt CD changer CDC-A05 or CDC-F05. These changers are not includ- ed in the scope of delivery and can be pur- chased from your specialised dealer. -
Page 21: Mix Playback
MIX playback When the MIX function has been activated, the CD tracks will be played in random or- der. “MIX” will then appear in the display. In order to switch the MIX function on or off, • press SC/MIX briefly. CDC operation (optional) Switching to CDC operation Make sure that at least one CD has been... -
Page 22: Selecting The Display Mode
CD and CDC operation Selecting the display mode You can select the desired display mode for CD operation: “NAME” – The specified name, for example “MADONNA” will be displayed. “TIME” – The elapsed playback time of the title is dis- played, for example “2 : 32”. -
Page 23: Cd Playback With Tpm
CD playback with TPM • The TPM function must be switched on (TPM on/off with the TPM button). The tracks stored with TPM will be played in ascending order. Any tracks which were not stored will be skipped over. Clearing TPM information Using the CLR (clear) button, you can clear single tracks, all of the tracks for one CD or the entire Track Programme Memory. -
Page 24: Entering Cd Names
CD and CDC operation Entering CD names In the CD mode you can name up to 30 discs and up to 99 for CDC operation. The specified name (e.g. VIVALDI) will ap- pear in the display if you play the disc in the same operating mode (CD/CDC) that was active when entering the name. -
Page 25: Dsc Programming
• After having updated the last CD or magazine, press TPM for approximate- ly two seconds (beep). To quit the function, • press DSC. The system has saved the TPM information for all of the CDs which were inserted. For all other discs, the TPM information and CD names have been deleted. - Page 26 SPEECH In future many RDS radio stations will differentiate be- tween music and speech programmes. You can alter the tone for speech programmes from between “SPEECH 0 ... 4”. SPEECH 0: Music/speech off SPEECH 1: Linear reproduction (bass, treble and Loudness set to “0”) SPEECH 2-4: Different settings for vol-...
-
Page 27: Overview Of The Dsc Factory
accept any operations ex- cept from being switched off. Re-insert the card. PTY LANG To select the programme type language: DEUTSCH or ENGLISH SCANTIME Use this function to set the scan time for the radio or CD player from between five and 30 seconds. -
Page 28: Appendix
Address of the next service centre in your vicinity (only for Germany) If you would like to know the address of the next Blaupunkt service centre of your area without having our service list at hand: Find out your area code. - Page 29 Blaupunkt-Werke GmbH Bosch Gruppe 3/96 Pf K7/VKD 8 622 400 573...
