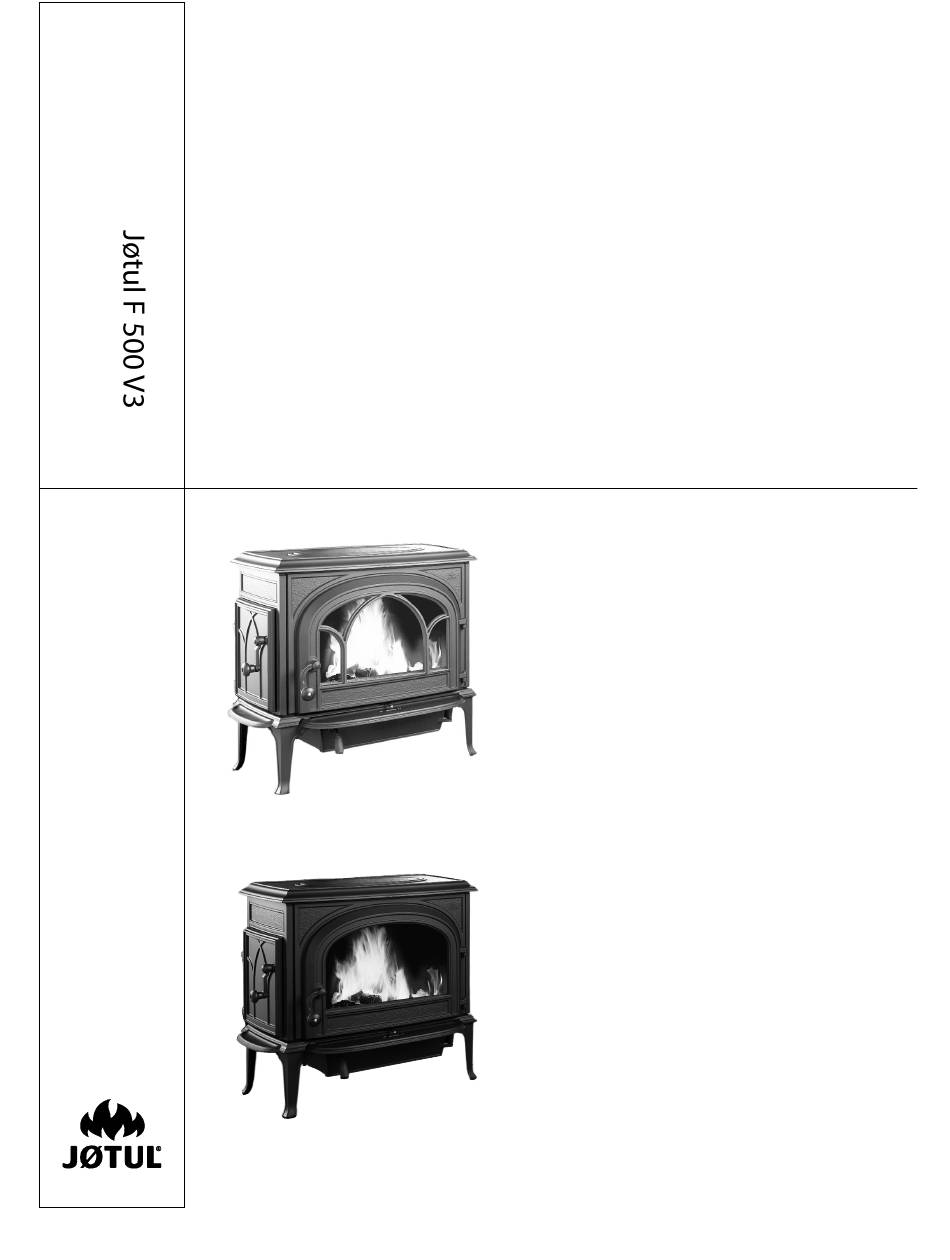

Classic
Clean Face
Une version française de ce manuel est disponible auprès de
votre revendeur et sur le site www. jotul.ca.
Jøtul F 500 V3
Catalytic Wood Heater
Classic and Clean Face Models
Installation and Operating Instructions
„ The Jøtul F 500 V3 wood stove is listed
to burn solid wood only. Do not burn
any other fuels.
„ Read this entire manual before you
install and use this appliance.
„ Save these instructions for future
reference and make them available to
anyone using or servicing this wood
heater.
„ This wood heater contains a catalytic
combustor that requires periodic
inspection and repair for proper
operation. See this manual for
specific maintenance information.
It is against federal regulations to
operate this wood heater in a manner
inconsistent with the operating
instructions in this owner's manual, or
if the catalytic element is deactivated
or removed.
for the United States
Advertisement
Table of Contents
Related Manuals for Jøtul F 500 V3 Series
Summary of Contents for Jøtul F 500 V3 Series
- Page 1 Jøtul F 500 V3 Catalytic Wood Heater Classic and Clean Face Models Installation and Operating Instructions for the United States „ The Jøtul F 500 V3 wood stove is listed to burn solid wood only. Do not burn any other fuels. „...
-
Page 2: Table Of Contents
F 500 V3 Oslo 4 / 20 Table of Contents Standards The Jøtul F 500 V3 solid fuel heater has been tested and Combustion Specifications, listed to ANSI/UL 1482. Building Codes, Safety Notices ................3 Certified Safety Tests performed by Intertek Testing Services, Middleton, WI U.S.A. -
Page 3: Combustion Specifications
F 500 V3 Oslo 4 / 20 Combustion Specifications Safety Notices • BURN SOLID, NATURAL WOOD FUEL ONLY. DO NOT BURN ANY Heat Output Range: 13,200 to 37,000 BTU/hr. (3.9-10.8 kW) OTHER FUEL. Max. Heat Output: 70,000 BTU/hr. Heating Capacity: Up to 2300 sq. -
Page 4: Installation
F 500 V3 Oslo 4 / 20 1. Installation • Horizontal runs must slope upward 1/4” (6,35mm) per foot toward the chimney. 1.1 Assembly Before Installation • Where passage through a wall or partition of combustible construction is desired, the installation must conform with NFPA 211 and is also addressed in The Jøtul F 500 V3 is shipped with the flue collar this manual. -
Page 5: Masonry Chimneys
F 500 V3 Oslo 4 / 20 Any of the preceding conditions can adversely equivalent, with a minimum thickness of 5/8” (16mm) affect performance. Weak or erratic draft can cause and must be installed with refractory mortar. There “backpuffing”- a condition when smoke leaks into the must be at least 1/4”... -
Page 6: Wall Pass-Through
F 500 V3 Oslo 4 / 20 3. Connecting to the Chimney 3.1 Masonry Chimney Thimble Other times, chimney height can create excessive draft which can cause high stove temperatures and short burn times. Excessive drafts can be corrected by When connecting the stove to a masonry chimney installing a butterfly damper. -
Page 7: Prefabricated Chimneys
F 500 V3 Oslo 4 / 20 3.3 Prefabricated Chimneys 4.2 Clearances to Walls and Ceilings The Jøtul F 500 V3 may be connected to a prefabricated The following clearances have been tested to UL metal chimney following the pipe manufacture’s and ULC standards and are the minimum clearances instructions. -
Page 8: Alcove Installation
F 500 V3 Oslo 4 / 20 4.5 Mobile Home Installations NOTE: Accessories approved for clearance reduction have been developed by many manufacturers. Be The F 5 V3 has been approved for use in mobile homes sure that any accessory you choose has been tested in the U.S. -
Page 9: Operation
F 500 V3 Oslo 4 / 20 5. Operation 5.3 Wood Fuel and Performance Please read the following section completely before Use dry wood. building a fire in your new Jøtul F 500 V3. The F 500 V3 is designed to burn natural wood only. Higher efficiencies and lower emissions generally result when burning air-dried, seasoned hardwoods, as opposed to DO NOT OVERFIRE THIS HEATER. -
Page 10: Stove Control - Functions And Settings
F 500 V3 Oslo 4 / 20 • Burning of any of the materials listed above can result Secondary air is always available to the secondary in the release of toxic fumes, cause smoke, or render combustion baffle and the catalytic combustor. the catalytic combustor permanently damaged and The automatic control valve funtions to provide ineffective. -
Page 11: Break-In Procedure
F 500 V3 Oslo 4 / 20 2. Take the magnet off of thermometer and replace into the 2. Light a second fire, allowing the stove to reach a maximum correct orientation as shown in fig. 13 temperature of 400°F (204°C) for 1 hour. c-13e. -
Page 12: Creosote Formation And Removal
F 500 V3 Oslo 4 / 20 In the event that creosote in your chimney or Top-Down Fire Building - See fig. 14. flue connector ignites, the resulting fire is often accompanied by a roaring noise and a crackling sound as As an alternative to the traditional ”teepee”... -
Page 13: Maintenance
F 500 V3 Oslo 4 / 20 6. Maintenance See Appendix A, page 24, for WARNING: Combustor Maintenance and DO NOT OPERATE THIS STOVE WITH THE ASH DOOR OPEN. Replacement instructions. This condition will lead to overfiring which is dangerous and can damage the stove. Such Regular maintenance will prolong the life of your damage is not covered under warranty. -
Page 14: Glass Care/Glass Replacement
F 500 V3 Oslo 4 / 20 6.5 Glass Care 6.6 Gaskets Check door and glass panel gaskets for tightness. Cleaning To check the seal of the front door, close and latch While the air wash and high temperatures of normal the door on a dollar bill and slowly try to pull the operation will combine to keep the glass free of dollar bill free. -
Page 15: Accessories
F 500 V3 Oslo 4 / 20 7. Accessories The following accessories, specifically designed for the Jøtul F 500 V3 wood stove, are available from your Jøtul authorized dealer. Rear Heatshield - 154332 Leg Leveler Kit - 156096 A stove rear heatshield has been specifically designed for the Jøtul F 500 V3 to reduce clearances off the rear of the Replacement Door Knob Kit - 151991 stove to combustible materials. -
Page 16: Illustrations
F 500 V3 Oslo 4 / 20 Fig. 3. Chimney height; 3 / 2 / 10 Rule. 8. Illustrations Fig. 1a Fig. 1b 24 3/4 ’’ 629mm Fig. 4. Masonry chimney penetration. Fig. 5. Chimney thimble components. Fig. 2. Chimney connector assembly. - Page 17 F 500 V3 Oslo 4 / 20 Fig. 6. Fireplace chimney construction. Fig. 9. Alcove unprotected wall clearances. 18" (460 mm) 14" 48" (1220 mm) 14" (355 mm) (355 mm) 56,5" (1435 mm) NOTE: Alcove installations require Side Loading Door must be locked in alcove installations. Side Door Lock Kit 155850.
- Page 18 F 500 V3 Oslo 4 / 20 Fig. 13c. Remove magnet from current orientation Fig. 12. Primary air lever settings Incorrect FULLY CLOSED - FULLY OPEN - Orientation FAR LEFT FAR RIGHT Fig. 13d. Orient magnet Fig. 13a. Catalyst Temperature Monitor Correct Orientation Fig.
- Page 19 F 500 V3 Oslo 4 / 20 Fig. 14. Top-down fire-starting log tier. Fig. 15. Door glass components. Fig. 16. Bottom heat shield installation. Unpainted Side Up 1) Bend the flattened heat shield on the perforations as shown, painted side down. 2) Use a 10 mm wrench to remove the two bolts from the bottom of the ash compartment.
- Page 20 F 500 V3 Oslo 4 / 20 Purchase replacement parts only from a Jøtul Authorized dealer. F 500 V3 Illustrated Parts Breakdown...
- Page 21 F 500 V3 Oslo 4 / 20 F 500 V3 Oslo Parts List Brown Brown Matte Matte Blue Black Blue Black Majolica Majolica Cast Iron Parts Cast Parts Black Black Enamel Enamel Enamel Enamel 52. Ash Lip, Front 10468792 10468727 10467847 3.
-
Page 22: Clearance Chart And Diagrams
F 500 V3 Oslo 4 / 20 Jøtul F 500 V3 Clearances These clearance specifications result from safety testing by Intertek Testing Services, Inc. Use the table below together with the diagrams on the facing page to determine the clearances for your particular installation. •... - Page 23 F 500 V3 Oslo 4 / 20 Minimum clearance from Left Side Load Door to combustible surfaces is 36”. The side door must be locked in Alcove and Corner installations. Use Side Door Lock Kit 155850. Unprotected Surface Protected Surface PER NFPA 211 or Parallel to the Wall Parallel to the Wall...
-
Page 24: Catalytic Combustor Maintenance
F 500 V3 Oslo 4 / 20 9. Appendix A Combustion System Maintenance While catalytic combustor element is extremely Fig. 17. Use a soft brush to clean the combustor. durable, you can prolong its service life with routine inspections. The combustor itself is self-cleaning to an extent, however, fly ash will eventually accummulate within the element and upper combustion chamber. -
Page 25: Catalytic Combustor Replacement
F 500 V3 Oslo 4 / 20 Combustor Replacement Tools Required: Set Screw Set Screw • 10 mm socket wrench with extension • 3mm hex key • Work gloves Combustion The combustor components are accessed by removal of Monitor Set Screw the top plate which is secured to the front plate by two M6 flange nuts with M6 fender washers, fig. - Page 26 F 500 V3 Oslo 4 / 20 Fig. 23. Lift combustor from the chamber. Fig. 24. Left and Right Side insulation panel removal and replacement. RRefactory member Expansion gasket...
-
Page 27: Alternate Floor Protection
F 500 V3 Oslo 4 / 20 Appendix B Alternate Floor Protection Example: All floor protection materials must be non-combustible ie. metal, The specified floor protector should be 3/4” thick material with a brick, stone, mineral fiber boards). Any combustible material may k-factor of 0.84. -
Page 28: Warranty
F 500 V3 Oslo 4 / 20 10. Jøtul F 500 V3 Oslo Please retain your dated sales receipt in your records as proof of purchase. Wood-burning Product Exclusions and Limitations Warranty Notice: This warranty is void if installation or service is performed by someone other than an authorized installer or service agency, or if installation is not in conformance with the installation and operating instructions contained in this... - Page 29 F 500 V3 Oslo 4 / 20 Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the Jøtul High Flow™ Catalytic Combustor 158000 length of implied warranties. Therefore, the above exclusions 20-Year Limited Warranty or limitations may not apply to you.
- Page 30 F 500 V3 Oslo 4 / 20 Applied Ceramics Steel Catalytic Combustor Lifetime Limited Warranty APPLIED CERAMICS warrants to the consumer the original warranty replacement Jøtul High Flow catalytic combustor, to replace at no charge to the consumer a second relacement STEEL COMBUSTOR that ceases to function within two (2) years from the date of installation by the original consumer, provided that the following conditions are met:...
- Page 31 F 500 V3 Oslo 4 / 20 This page is intentionally left blank...
- Page 32 F 500 V3 Oslo 4 / 20 Jøtul pursues a policy of continuous product development. Products supplied may therefore differ in specification, colour and type of accessories from those illustrated and described in this manual. For Your Records... Record the following information to help your dealer determine what you will need should your stove ever require parts or service.
