TC115I
E180772
For replacement parts visit
WENPRODUCTS.COM
Your new tool has been engineered and manufactured to WEN's highest standards for dependability, ease
of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If
you use your tool properly and for intended purpose, you will enjoy years of safe, reliable service.
NOTICE: Please refer to wenproducts.com for the most up-to-date instruction manual.

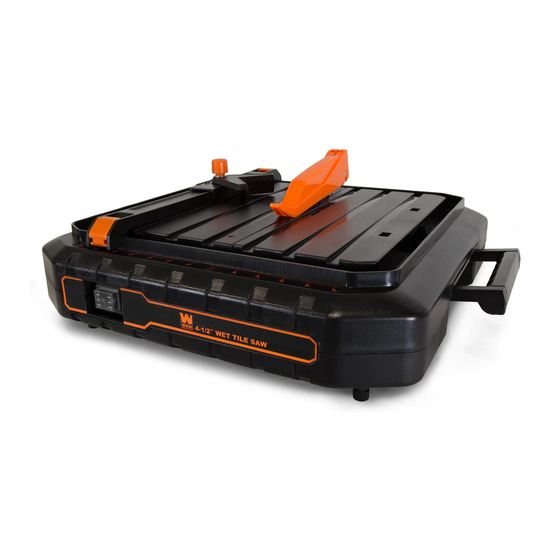

WET TILE SAW
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
4-1/2 INCH
Model # 71745
(M-F 8AM-5PM CST)
bit.ly/wenvideo
Advertisement
Troubleshooting
Related Manuals for Wen 71745
Summary of Contents for Wen 71745
- Page 1 WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe, reliable service.
- Page 2 Assembly and Adjustments Operation Maintenance Troubleshooting Guide Warranty Exploded View & Parts List TECHNICAL DATA Model Number: 71745 Motor: 120V, 60Hz, 4.1A No Load Speed: 5000 RPM Insulation Class: Class I Diamond Disc Dimensions: 4-1/2 x 11/128 in. (115 x 2.1 mm) Diamond Disc Arbor: 5/8 in.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFETY INSTRUCTIONS. WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instruc- tions may result in electric shock, fire and serious injury. To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood. - Page 4 GENERAL SAFETY RULES POWER TOOL USE AND CARE 1. Avoid accidental start-ups. Make sure the power switch is in the OFF position before connecting the plug to a power source or carrying the tool. 2. Check power tool for damaged parts. Check for misalignment of moving parts, jamming, breakage, improper mounting, or any other conditions that may affect the tool’s operation.
-
Page 5: Electrical Information
ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug. - Page 6 SPECIFIC RULES FOR TILE SAWS PERSONAL SAFETY 1. Wear proper apparel. Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry which may get caught in moving parts. Nonslip footwear is recommended. Wear protective hair covering to contain long hair. 2.
- Page 7 SPECIFIC RULES FOR TILE SAWS 11. Switch off the tile saw and wait until the cutting disc comes to a complete stop before removing workpieces or residual material from the work area. 12. This tile saw should be used at an ambient temperature between 59°F and 86°F (15°C and 30°C). 13.
- Page 8 Unpacking ASSEMBLY • Remove all packaging WARNING: To prevent serious injury from accidental operation, make sure the power cord is discon- nected from the power source and the tool is switch to OFF before assembly or making any adjustments. • Remove remaining pa POSITIONING OF THE TILE SAW (Fig.
- Page 9 Packaging materials are not toys! Children m ASSEMBLY Danger of suffocation! WARNING: To prevent serious injury from accidental operation, make sure the power cord is discon- nected from the power source and the tool is switch to OFF before assembly or making any adjustments. INSTALLING THE DIAMOND DISC AND METAL BRACKET (Fig.
- Page 10 • ASSEMBLY & ADJUSTMENTS fig.5 WARNING: To reduce the risk of injury, only use cutting disc that is suitable for you tile saw. Do not • use disc with speed rating less than 5000 RPM. Make sure the edge of the blade is smooth and free of openings or grooves.
- Page 11 under the • Remove all packaging materials. slide it into the ASSEMBLY & ADJUSTMENTS • Remove remaining packing and package i (Continued) • Check that the package contents are comp 7. Place the metal bracket under the plastic housing then slide it into the slot (Fig. J). Fix the metal bracket into position using the screw and washer previously re- n be fixed into •...
- Page 12 screw (fig. 3). amond disc. 45º vertical fence) uard into the notch ASSEMBLY & ADJUSTMENTS fig.11 crew (fig. 3). INSTALLING THE PROTECTIVE GUARD (Fig. M to N) 1. Take the upper blade guard and position it onto the metal bracket as shown (Fig. M). Avoid contacting the º...
- Page 13 ASSEMBLY & ADJUSTMENTS with water: INSTALLING THE MITER GAUGE (Fig. P) Attach the miter gauge on top of the parallel fence. The upply. miter angle can be adjusted from 0° to 45°. Loosen the Miter Gauge Knob miter gauge knob (Fig. P) and rotate the gauge to the fig.13 fig.14 desired angle setting.
-
Page 14: Package Contents
OPERATION WARNING: Before switching the tile saw on, make sure that you have read and understood all of the safety instructions. Make sure the power cord is disconnected from the power source and the tool is switch to OFF before assembly or making any adjustments. PREPARING FOR OPERATION 1. - Page 15 OPERATION MAKING A STRAIGHT CUT (Fig. V) Pull open the two fence lock knobs on the sides of the parallel fence. Adjust the parallel fence to the desired distance from the cutting disc. Close the fence lock d width. knobs to tighten the parallel guide against the table. just the guide.
-
Page 16: Troubleshooting Guide
MAINTENANCE WARNING: To prevent serious injury from accidental operation, make sure that the saw is turned off and unplugged from power source before installation, cleaning and maintenance operations. 1. After every use, empty the water from the water tank and clean the water tank. 2. - Page 17 LIMITED TWO YEAR WARRANTY WEN Products is committed to build tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
- Page 18 EXPLODED VIEW AND PARTS LIST...
-
Page 19: Exploded View And Parts List
EXPLODED VIEW AND PARTS LIST Part No. Description Qty. Part No. Description Qty. 71745-001 Carrying Handle 71745-032 Miter Gauge Knob 71745-002 Base 71745-033 Upper Guard Knob Cross Head Self-Tapping 71745-034 Upper Guard Bolt 71745-003 Screw ST4.2X16 71745-035 Upper Blade Guard... - Page 20 THANKS FOR REMEMBERING...
