Light Kit
GrandStand
Model No. 114-3505
Installation
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
1
2
1
Installing the Brackets
Parts needed for this procedure:
2
Bracket
4
Bolt (3/8 x 1 inch) (self tapping)
Procedure
1. Stop the engine, set the parking brake, and remove the
key from the ignition switch (Figure 1).
2. Remove the negative (-) battery cable from the battery.
3. Install the 2 brackets to the side of the machine with 4
bolts (3/8 x 1 inch).
Note: These are thread-forming (self-tapping) bolts
and the frame holes do not require tapping.
© 2012—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
Mower
Description
Bracket
Bolt (3/8 x 1 inch) (self tapping)
Right light
Left light (has button switch)
Locknut (5/16 inch)
Wire harness
Fuse (15 amp)
Convoluted tube
Plastic tie
Friction washer
Y-Adapter
Register at www.Toro.com.
Qty.
2
Install the brackets.
4
1
1
2
1
1
Install the lights.
2
8
2
1

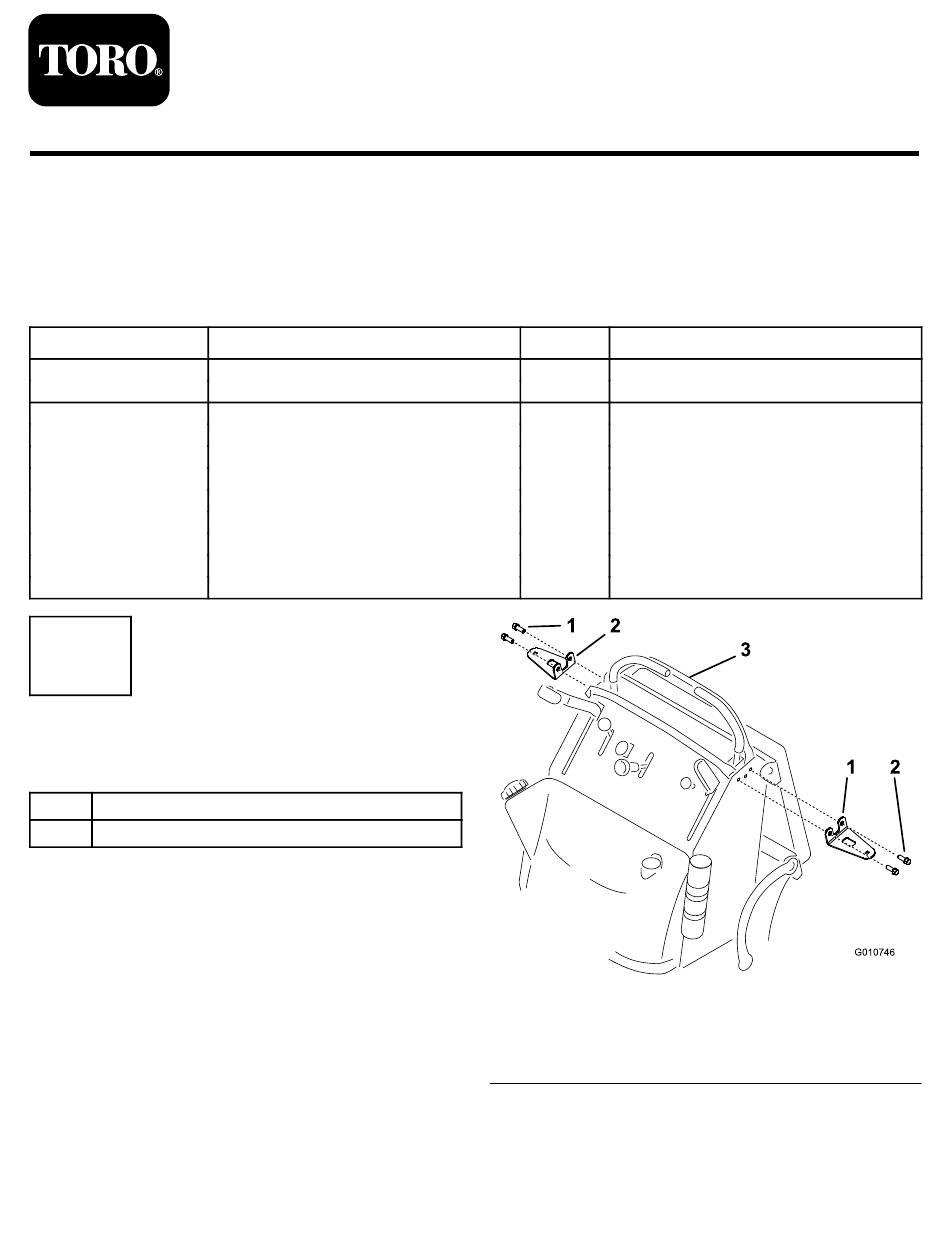

Figure 1
1. Self-tapping bolt (3/8 x 1
inch)
2. Bracket
Original Instructions (EN)
All Rights Reserved *3373-815* A
Printed in the USA.
Form No. 3373-815 Rev A
Installation Instructions
