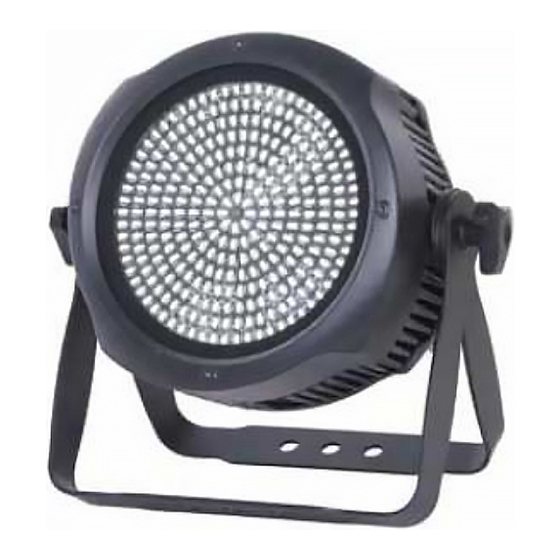

Varytec LED Typhoon Strobe User Manual
  1. Manuals
  2. Brands
  3. Varytec Manuals
  4. DJ Equipment
  5. LED Typhoon Strobe
  6. User manual

Varytec LED Typhoon Strobe User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Manual
LED Typhoon Strobe

Advertisement

Table of Contents
loading

Related Manuals for Varytec LED Typhoon Strobe

Summary of Contents for Varytec LED Typhoon Strobe

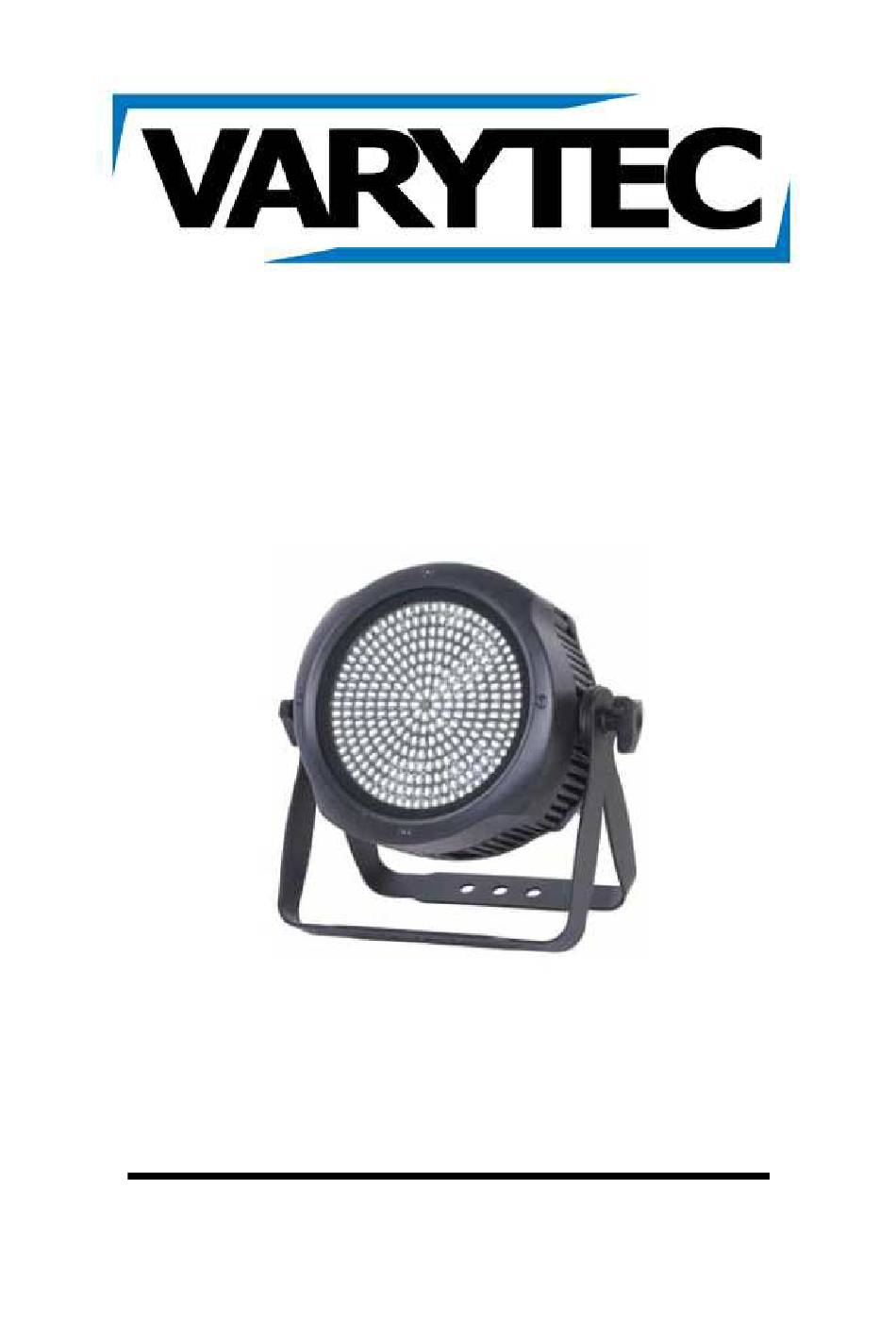

  • Page 1 Manual LED Typhoon Strobe...

  • Page 2: Table Of Contents

    Table of contents Safety instructions ..........................3 1.1. For safe and efficient operation ....................3 Designated use ..........................4 2.1. Overhead installation ....................... 5 Introduction ............................7 3.1. Product overview ........................7 3.2. Dimensions ..........................8 Connections ............................. 9 4.1. Electrical connections ......................

  • Page 3: Safety Instructions

    1. Safety instructions • This device is suitable for indoor use (not outdoors) only. device is suitable for indoor use (not outdoors) only. • All modifications to the device will void the All modifications to the device will void the warranty. •...

  • Page 4: Designated Use

    2. Designated use This device was developed for professional use on stages, in discos, theatres etc. The device is only approved for a connection up to 230V 50/60 Hz AC voltage and only for indoor use. Regular breaks during operation increase the lifetime of your device. Avoid convulsions or any form of forceful impact during the installation or the start-up of the device.

  • Page 5: Overhead Installation

    2.1. Overhead installation Overhead installation Danger of life! Danger of life! You have to observe the regulations of BGV C1 (formerly VBG 70) and You have to observe the regulations of BGV C1 (formerly VBG 70) and You have to observe the regulations of BGV C1 (formerly VBG 70) and EN60598-2-17 17 Installations are to carry out by skilled personnel only.
  • Page 6 Before installation make sure that the mounting surface has the ability to carry the tenfold point load of the own weight of the device. Mount the device with the mounting-bracket to your trussing system using an appropriate clamp. During overhead installation the device must be always secured by a safety rope which is designed to hold the twelvefold weight of device.

  • Page 7: Introduction

    3. Introduction Thank you for buying the LED Typhoon PAR Indoor 12x10W RGBWA UV 6in1 IP65. It is a powerful device. For a successful installation and operation, please read this manual carefully. 3.1. Product overview 7 / 16...

  • Page 8: Dimensions

    3.2. Dimensions 8 / 16...

  • Page 9: Connections

    4. Connections 4.1. Electrical connections If you wish to change the power supply settings, see the chapter Appendix. Connect the fixture to the mains with the enclosed power cable and plug. The earth has to be connected. Cable (EU) Cable (US) International Brown Black...

  • Page 10: Control

    5. Control Press MENU, to get into the menu. With UP/DOWN you can choose the required point of menu. Confirm with ENTER. With UP/DOWN you can make the required settings or choose another submenu. Confirm with ENTER. By pressing MENU you can step back to the main menu. 5.1.
  • Page 11 Activates the DMX mode. RUN MODE SLAVE Activates the Slave mode. Deactivates the ID Number. ID Number 1 – 66 Setting the ID number. If you choose OFF the display shuts down, if the Display LED ON / OFF device was not operated for 10s. If this function is activated the key lock is active.

  • Page 12: Dmx Chart

    6. DMX chart 6.1. DMX Mode 1 (1 channel) Channel Value from Value to Function Dimmer 0 – 100% 6.2. DMX mode2 (5 channels) Channel Value from Value to Function Dimmer 0 – 100% Strobe slow- fast No function Automatic program 1 Automatic program 2 Automatic program 3 Automatic program 4...

  • Page 13: Dmx Mode 3 (8 Channels)

    130 – ID 13 ID 30 ID 47 ID 64 140 – ID 14 ID 31 ID 48 ID 65 150 – ID 15 ID 32 ID 49 ID 66 160 – ID 16 ID 33 ID50 6.3. DMX mode 3 (8 channels) Channel Value from Value t...

  • Page 14: Dmx Mode 6 (13 Channels)

    Dimmer circle 2 / 0 – 100% Dimmer circle 3 / 0 – 100% Dimmer circle 4 / 0 – 100% Dimmer circle 5 / 0 – 100% Dimmer circle 6 / 0 – 100% Dimmer circle 7 / 0 – 100% Dimmer circle 8 / 0 –...
  • Page 15 50 – 59 ID 5 ID 22 ID 39 ID 56 60 – 69 ID 6 ID 23 ID 40 ID 57 70 – 79 ID 7 ID 24 ID 41 ID 58 80 – 89 ID 8 ID 25 ID 42 ID 59 90 –...

  • Page 16: Technical Data

    7. Technical data Power supply Voltage 110 – 250 V / 50-60 Hz Power consumption max. 130 W Light source LM type LED single color Color spectrum Power 144 W Number / Power 288 x 0,5 W Connections Power in P-Con Power out P-Con...
