Graco Hydra-Clean 206–515 Instructions-Parts List Manual

10:1 president pump for mounting on open 55 gallon supply drum
Hide thumbs Also See for Hydra-Clean 206–515:

Advertisement

Quick Links

Download this manual

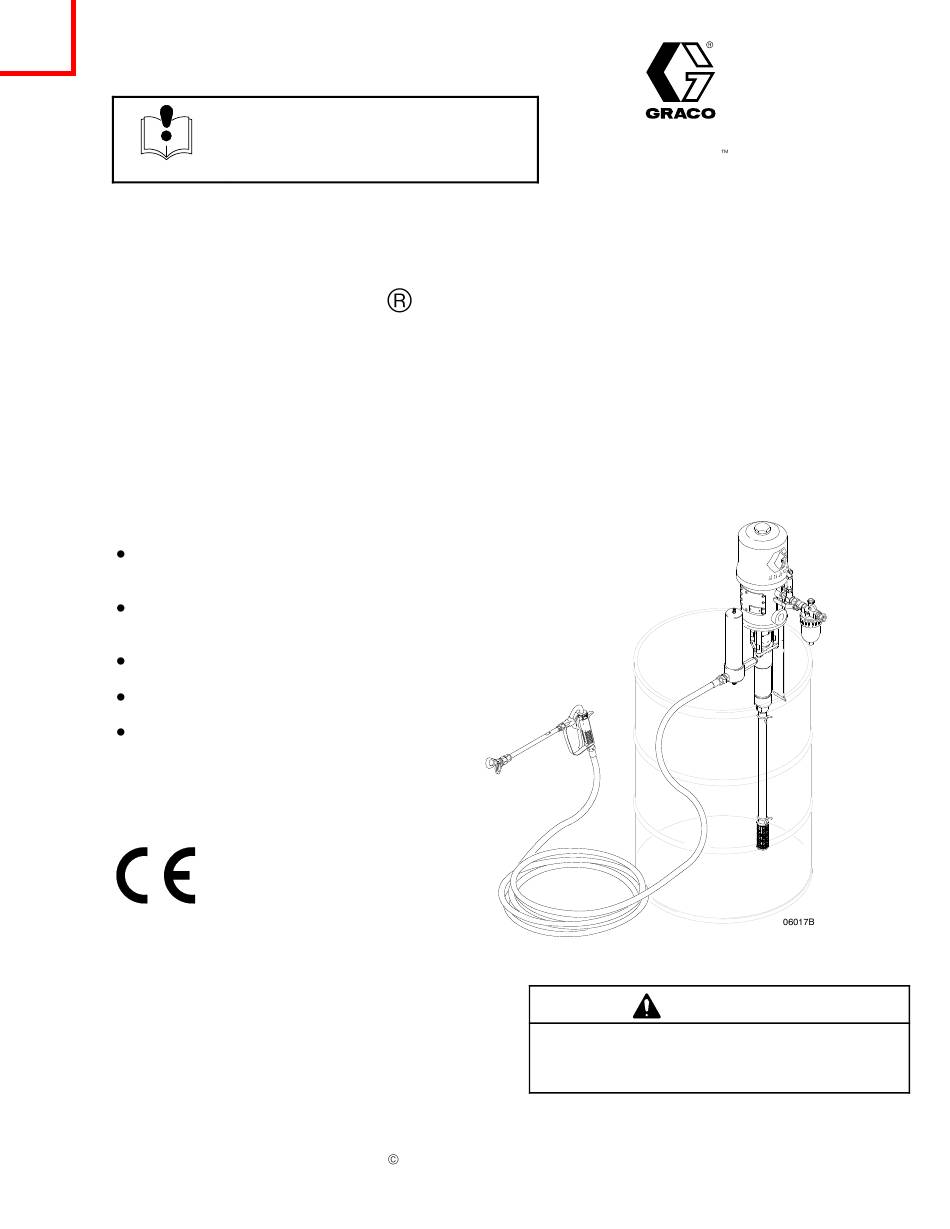

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
10:1 President Pump
Hydra-Clean Units
For Mounting on Open 55 Gallon Supply Drum
(Can be wall mounted with accessory bracket)
Model 206–515, Series D
7 MPa (69 bar, 1000 psi) Maximum Working Pressure
0.7 MPa (7 bar, 100 psi) Maximum Incoming Air Pressure
Stainless steel pump and spray valve handle powerful clean
solutions at high pressure.
Divorced design pump – keeps cleaning solution from fouling
air motor.
Accumulator reduces line pulses – air charged at the factory.
Air line lubricator for automatic lubrication of air motor.
Suction tube has intake filter.
Solution volume and working pressure can be adjusted
using a different tip orifice size and an air regulator.
Fan pattern can be changed to concentrating jet
stream using blasting tip.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
The Graco warranty will not apply if abrasive or
corrosive materials, other than those Graco recom-
mends are used with this unit.
http://www.graco.com
COPYRIGHT 1996, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
306–817
Supersedes Rev. G,
First choice when
unreleased Rev. H
quality counts.
CAUTION
Rev. J

Advertisement

loading

Related Manuals for Graco Hydra-Clean 206–515

Summary of Contents for Graco Hydra-Clean 206–515

  • Page 1 CAUTION using a different tip orifice size and an air regulator. Fan pattern can be changed to concentrating jet The Graco warranty will not apply if abrasive or stream using blasting tip. corrosive materials, other than those Graco recom- mends are used with this unit.
  • Page 2 Read all instruction manuals, tags, and labels before operating the equipment. Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. Do not alter or modify this equipment. Use only Graco parts and accessories.
  • Page 3 WARNING INJECTION HAZARD Spray from the gun, hose leaks, or ruptured components can inject fluid into your body and cause an extremely serious injury, including the need for amputation. Splashing fluid in the eyes or on the skin can also cause a serious injury. Fluid injected into the skin might look like just a cut, but it is a serious injury.
  • Page 4 WARNING FIRE AND EXPLOSION HAZARD Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and re- sult in a fire or explosion and serious injury. Ground the equipment and the object being sprayed. Refer to Grounding on page 5. If there is any static sparking or you feel an electric shock while using this equipment, stop spray- ing immediately.
  • Page 5 Provide adequate nents. For assistance in designing a system to suit ventilation. If the area you are cleaning has stored your needs, contact your Graco distributor. Refer to flammable materials. take appropriate precautions Figure 2 for callouts in parentheses.
  • Page 6 Operation Pressure Relief Procedure 3. Close the red handled bleed-type master air valve (required in your system) WARNING 4. Unlock the gun trigger safety and trigger the gun to relieve pressure. INJECTION HAZARD Fluid under high pressure can be in- 5.
  • Page 7 Operation WARNING To avoid serious injury, including fluid injection and splashing in the eyes or on the skin, never point the gun at yourself or anyone else. Before Using Prepare cleaning solution as instructed, observing all safety precautions. Pre-mix powered cleaners in a separate bucket of hot water before adding to water in the supply drum.

  • Page 8: Troubleshooting

    Troubleshooting Before servicing this equipment always make sure to WARNING Relieve the pressure. To reduce the risk of serious injury whenever you are instructed to relieve pressure, always follow the Note: Check all possible problems and solutions Pressure Relief Procedure on page 6. before disassembling.
  • Page 9 Service General 1. Shut off the air supply to the pump and relieve the pressure. Release air pressure in the accumulator See Fig. 2. Check the air line lubricator often and keep by depressing the valve core plunger pin. Discon- it filled with oil.
  • Page 10 Accessories Stainless Steel Spray Tips AIR SUPPLY TO PUMP 476 kPa 680 kPa ORIFICE SPRAY (4.76 bar, 70 PSI) (6.8 bar, 100 psi) SIZE SIZE ANGLE ANGLE 164–435 .043 160–951 .043 160–964 .043 164–434 .052 164–436 .052 164–438 .052 160–950 .062 160–957 .062...
  • Page 11 Notes...
  • Page 12 Parts Model 206–515 President Hydra-Clean Ref. No. 6...
  • Page 13 Parts Model 206–515 President Hydra-Clean Includes items 1–38 Part No. Description Qty. Part No. Description Qty. 165–280 BRACKET, pump mounting 205–753 SPRAY HOSE; cpld 3/8 npt(m); 207–299 SPRAY NOZZLE EXTENSION KIT 3/8 ID; 40’ (12.2 m) Includes items 22a –22d 214–847 AIR LINE LUBRICATOR 164–017...

  • Page 14: Technical Data

    Dimensions 1/2 npt air inlet 14–3/4” (375 mm) 28–3/16” (715 mm) Technical Data Air pressure range ..........150 to 850 kPa (1.5 to 8.5 bar, 20 to 120 psi) Air volume requirements .
  • Page 15 Notes...

  • Page 16: Graco Standard Warranty

    Graco’s written recommendations. This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or sub- stitution of non–Graco component parts.

This manual is also suitable for:

Hydra-clean d series
