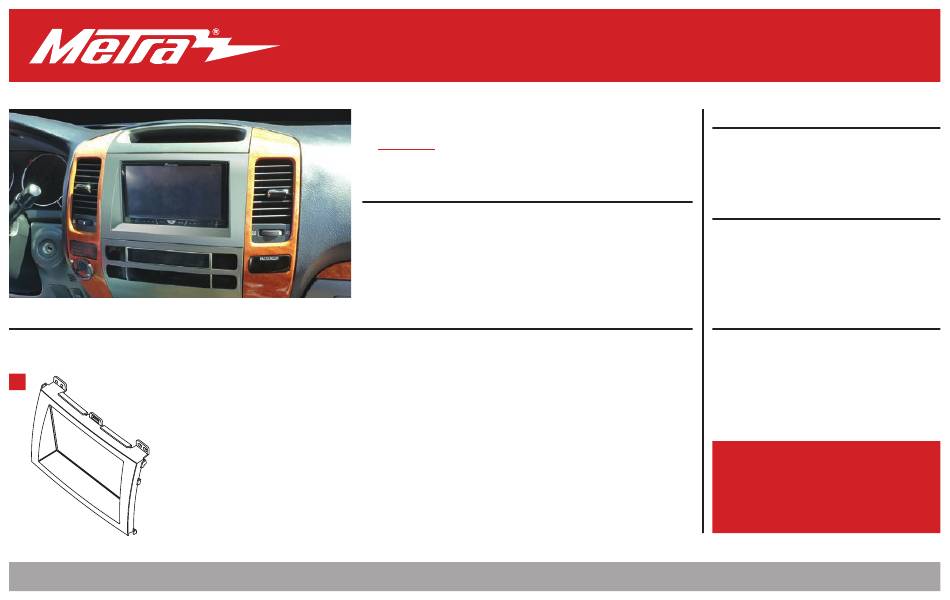

KIT COMPONENTS
• A) Radio trim panel
A
Metra. The World's Best Kits.
®
Lexus GX470
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• ISO DDIN radio provision
• Painted gray
MetraOnline.com
2003-2009
(without NAV)
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
95-8166G
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Assembly ......................................................4-6
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: TYTO-01
Antenna Adapter: Not required
Steering Wheel Control Interface: ASWC-1 & 70-8114
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm Socket wrench
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 1/11/19 INST95-8166G
Advertisement
Related Manuals for Metra Electronics 95-8166G
Summary of Contents for Metra Electronics 95-8166G
- Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 1/11/19 INST95-8166G...
- Page 2 DASH DISASSEMBLY 1. Unclip and remove the left and right- side center console trim panels. (Figure A) 2. Unclip, unplug, and remove the a/c vent panels to the left and right of the radio. (Figure B) Continued on the next page (Figure A) (Figure B) 1.800.221.0932...
- Page 3 DASH DISASSEMBLY (CONT.) 3. Unclip and remove the lower assembly trim panel. (Figure C) 4. Remove (4) 10mm hex-head screws securing the climate-control/ information-display/radio assembly to the dash. Unclip, unplug and remove the entire assembly. (Figure D) Continue to Kit Assembly (Figure C) (Figure D) REV.
- Page 4 KIT ASSEMBLY From the climate-control/information- display/radio assembly: 1. Remove (4) screws securing the information display, then unclip and remove the display. (Figure A) 2. Remove (8) screws securing the radio, then unclip and remove the radio. (Figure B) Continued on the next page (Figure A) (Figure B) 1.800.221.0932...
- Page 5 KIT ASSEMBLY (CONT.) To the climate-control/information-display assembly: 1. Slide the aftermarket radio into the assembly, then secure using the screws supplied with the radio. (Figure C) 2. Clip the Radio Trim Panel to the assembly. (Figure D) Continued on the next page (Figure D) (Figure C) REV.
- Page 6 KIT ASSEMBLY (CONT.) 3. Clip the information display to the assembly, then secure using the factory screws. (Figures E, F) 4. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or Axxess.
- Page 7 REV. 1/11/2019 INST95-8166G...
- Page 8 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 1/11/19 INST95-8166G...
