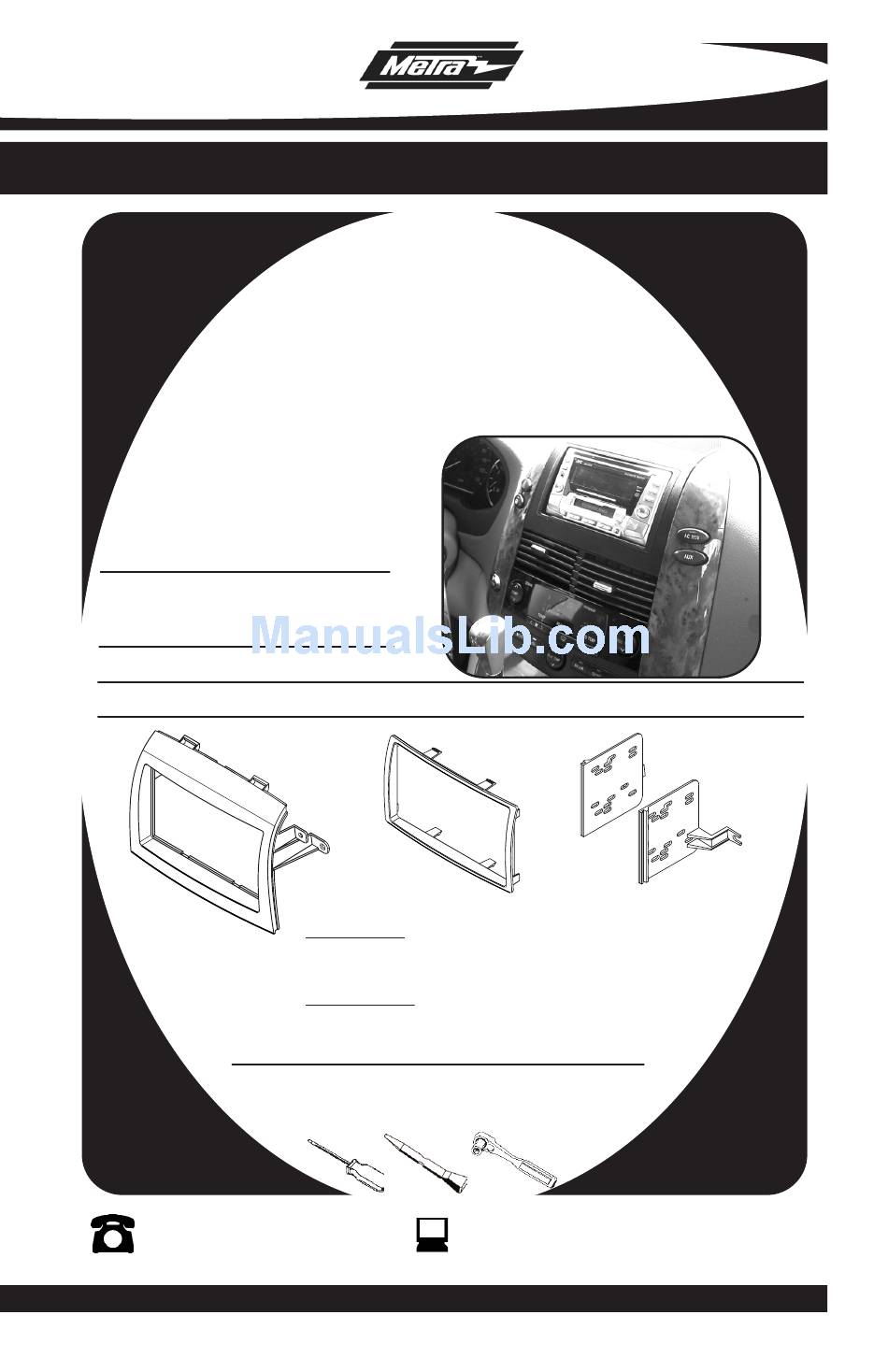

INSTALLATION INSTRUCTIONS FOR PART 95-8208
95-8208
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
• A) Radio Housing • B) Double Din Trim Plate • C) Double DIN Brackets
Small Flat Blade Screwdriver/ Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2007-2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
Toyota Sienna
2004-2010
A
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
• 70-1761 -Toyota harness 1987-up
• TYTO-01 - Toyota amp harness 2003-up
Antenna Adapter:
• Not required
TOOLS REQUIRED:
• Socket Set
C
www.metraonline.com
Advertisement
Related Manuals for Metra Electronics 95-8208
Summary of Contents for Metra Electronics 95-8208
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-8208 Toyota Sienna 95-8208 KIT FEATURES • Double DIN Radio Provision • Stacked ISO Mount Units Provision KIT COMPONENTS • A) Radio Housing • B) Double Din Trim Plate • C) Double DIN Brackets WIRING AND ANTENNA CONNECTIONS (Sold Separately) Wiring Harness: •...
-
Page 2: Table Of Contents
Final Assembly ......... . . 4 *Note: Refer also to the instructions included with the aftermarket radio. 95-8208... -
Page 3: Toyota Sienna 2004-2010
(Figure A) Unclip and remove panel or speaker cover above radio. (Figure B) Remove (4) 10 MM bolts securing the radio. Unplug and remove the radio. (Figure C) Continue to final assembly. 95-8208 DASH DISASSEMBLY... -
Page 4: Kit Assembly
Slide the Double DIN radio into the bracket/housing assembly and secure the radio to the assembly using the screws supplied with the radio. (Figure B) Snap the Double DIN Trim plate into the Radio Housing. (Figure C) Continue to final assembly. 95-8208 KIT ASSEMBLY... -
Page 5: Stacked Iso Mount Units Provision
Slide the stacked ISO units into the bracket/housing assembly and secure the units to the assembly using the screws supplied with the units. (Figure B) Snap the Double DIN Trim plate into the Radio Housing. (Figure C) Continue to final assembly. 95-8208 KIT ASSEMBLY... -
Page 6: Final Assembly
Dimmer ....Orange / White *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 95-8208 FINAL ASSEMBLY (A) Strip wire ends back 1/2" B) Twist ends together... - Page 7 95-8208 NOTES...
- Page 8 95-8208 INSTRUCTIONS www.metraonline.com 1-800-221-0932 REV. 04/27/10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST95-8208...
