INSTALLATION INSTRUCTIONS FOR PART 95-8223
Toyota Corolla 2009-2013
95-8223/95-8223S
KIT FEATURES
• Double DIN radio provision
• Painted to match factory dash
95-8223 = Black, 95-8223S = Silver

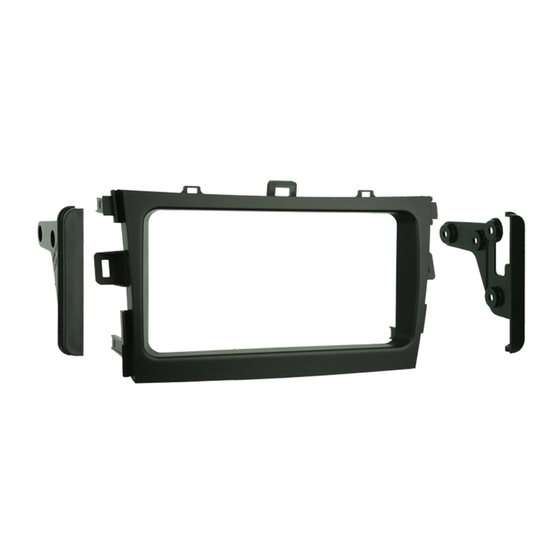

KIT COMPONENTS
• A) Radio housing trim plate • B) Double DIN trim plate
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-1761 - Toyota harness 1987-up • TYTO-01 - LEX/TOY 2001-up amp interface
Antenna Adapter: • 40-LX11 LEX/TOY 2002-up into car
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver • Small flat blade screwdriver
APPLICATIONS
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
Advertisement
Related Manuals for Metra Electronics 95-8223
Summary of Contents for Metra Electronics 95-8223
- Page 1 95-8223/95-8223S KIT FEATURES • Double DIN radio provision • Painted to match factory dash 95-8223 = Black, 95-8223S = Silver KIT COMPONENTS • A) Radio housing trim plate • B) Double DIN trim plate CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation.
- Page 2 95-8223 Dash Disassembly 1. Unclip and remove the (4) side trim panels from the right and left side of the radio and a/c controls. (Figure A) 2. Unclip and remove the a/c vent panel above the factory radio. (Figure B) 3.
- Page 3 95-8223 Kit Assembly Double DIN radio provision 1. Attach the clips removed from the factory radio to the back of the radio housing trim plate. (Figure A) 2. Attach the factory mounting brackets and the Double DIN trim plates to the...
