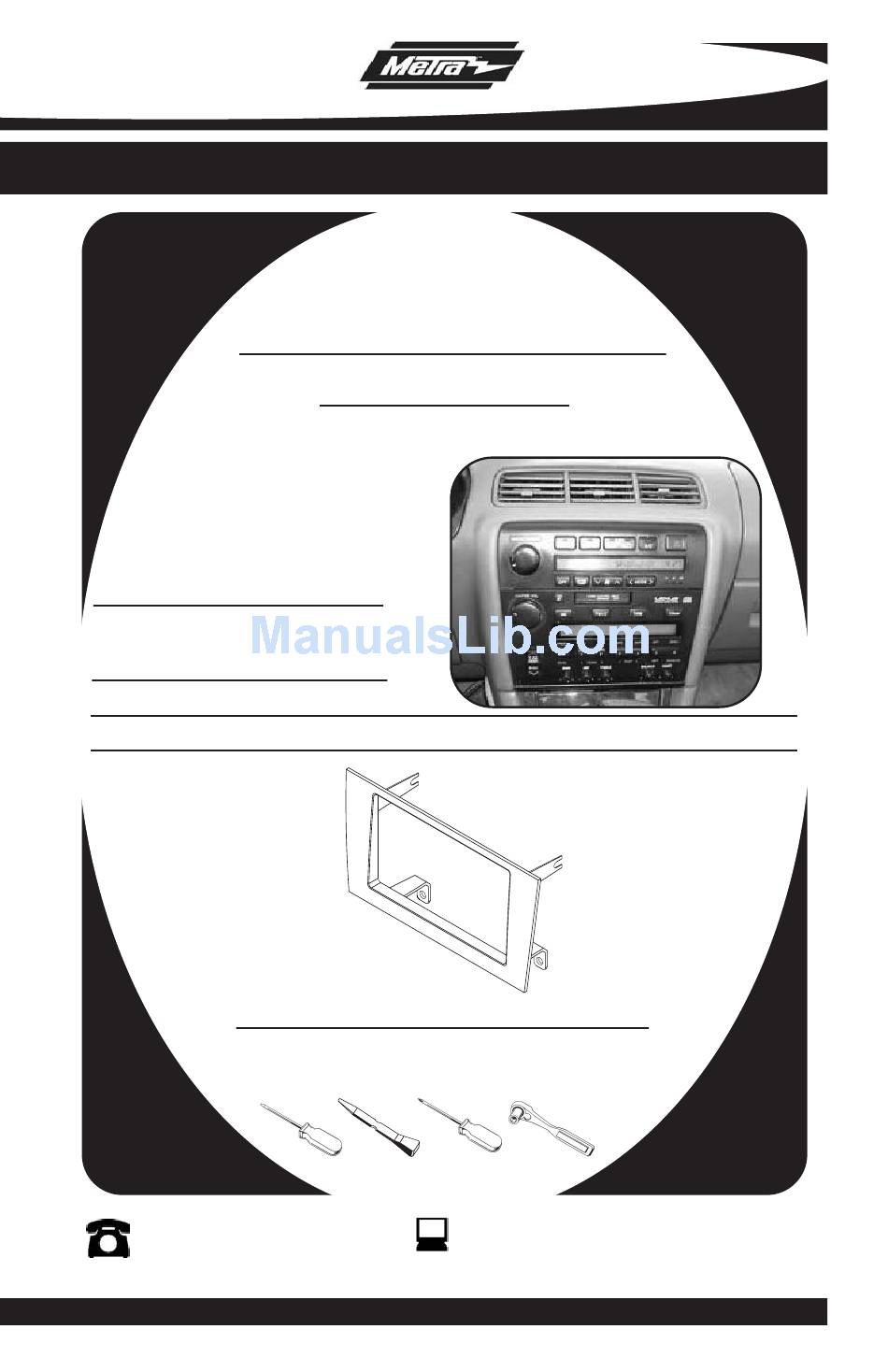

INSTALLATION INSTRUCTIONS FOR PART 95-8150
APPLICATIONS
LEXUS ES SERIES
1992-1996
95-8150
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Double Din Trim Plate
A
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
1-800-221-0932
www.metraonline.com
© COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION
Advertisement
Related Manuals for Metra Electronics LEXUS ES 95-8150
Summary of Contents for Metra Electronics LEXUS ES 95-8150
- Page 1 • Double DIN Radio Provision • Stacked ISO Mount Units Provision KIT COMPONENTS A) Double Din Trim Plate TOOLS REQUIRED: Small Flat Blade Screwdriver/ Panel Removal Tool • Phillips Screwdriver • Socket Set 1-800-221-0932 www.metraonline.com © COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION...
- Page 2 T ABLE OF CONTENTS Dash Disassembly - Lexus ES Series 1992-1996 ......1 Kit Assembly - Double DIN Radio Provision .
-
Page 3: Lexus Es Series 1992-1996
LEXUS ES SERIES 1992-1996 isconnect the negative battery ter- minal to prevent an accidental short circuit. Unclip and remove the plastic trim piece below the factory radio and remove (2) Phillips screws exposed underneath. (Figure A) Using a small flat blade screwdriver release the clips securing the a/c vent assembly and remove the assembly. -
Page 4: Double Din Radio Provision
LEXUS ES SERIES 1992-1996 STACKED ISO MOUNT UNITS PROVISON Note: Refer also to the instructions included with the aftermarket radio. Assemble the climate controls and Double DIN or stacked ISO mount units into the factory brackets using the hardware from disassembly and the screws supplied with the Double DIN or stacked ISO mount units. -
Page 5: Final Assembly
FINAL ASSEMBL Y Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individ- ually tape off the ends of any unused wires to prevent electrical short circuit.) Re-connect the negative battery terminal and test the unit for proper operation. - Page 6 95-8150 NOTES...
- Page 7 95-8150 NOTES...
- Page 8 95-8150 INSTRUCTIONS www.metraonline.com 1-800-221-0932 REV. 11/09/07 © COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION INST95-8150...
