Hardware Setup

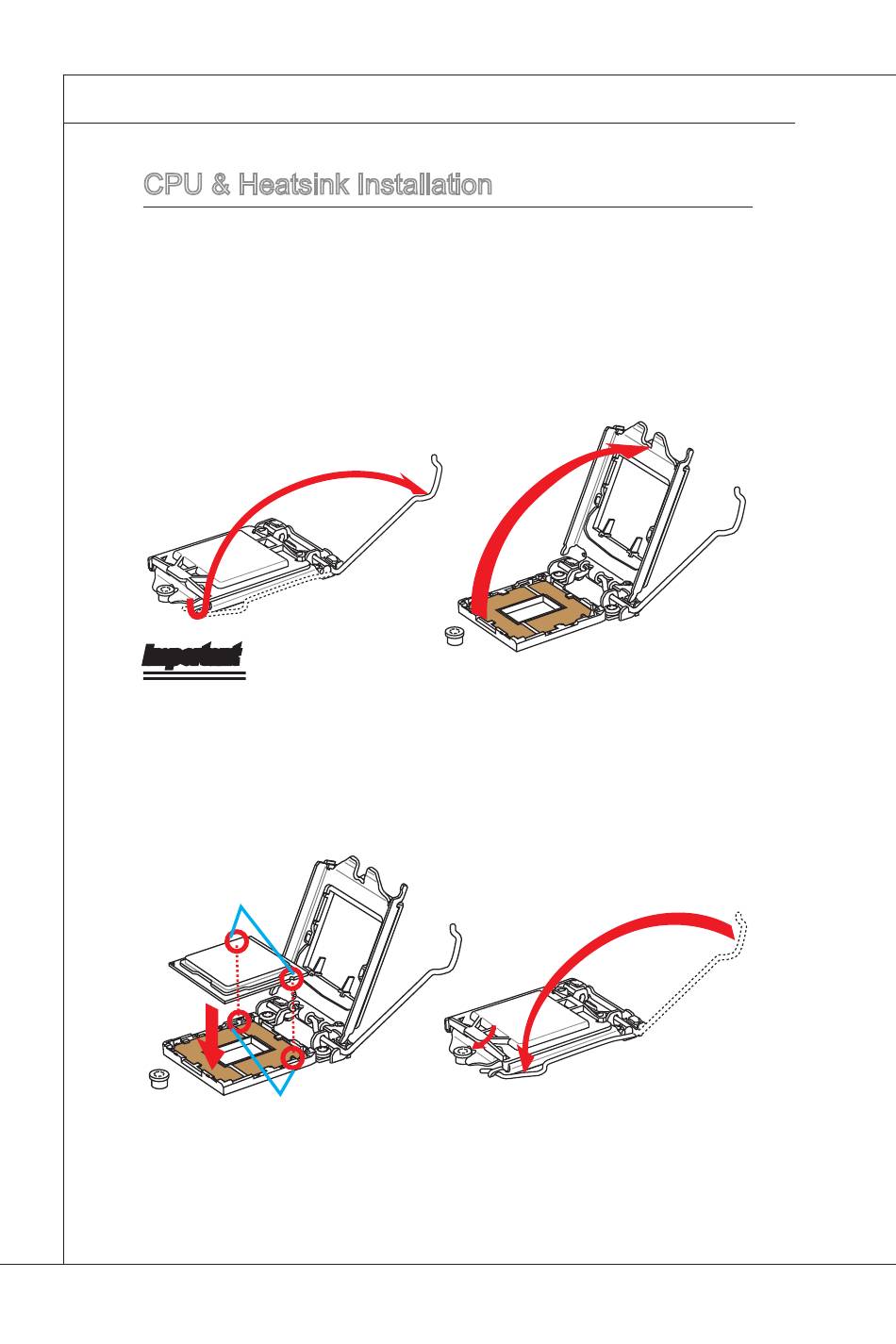

cpu & Heatsink installation
When installing a cpu, always remember to install a cpu heatsink. a
cpu heatsink is necessary to prevent overheating and maintain system
stability. follow the steps below to ensure correct cpu and heatsink in-
stallation. Wrong installation can damage both the cpu and the board.
1. push the load lever down to unclip it and lift to the fully open
position.
2. the load plate will automatically lift up as the load lever is pushed to
the fully open position.
important
do not touch the socket contacts or the bottom of the cpu.
3. align the notches with the socket alignment keys. Lower the cpu
straight down, without tilting or sliding the cpu in the socket.
inspect the cpu to check if it is properly seated in the socket.
4. close and slide the load plate under the retention knob. close and
engage the load lever.
cpu notches
5. When you press down the load lever the pnp cap will automatically
pop up from the cpu socket. do not discard the pnp cap. always
replace the pnp cap if the cpu is removed from the socket.
2-2
alignment Key
