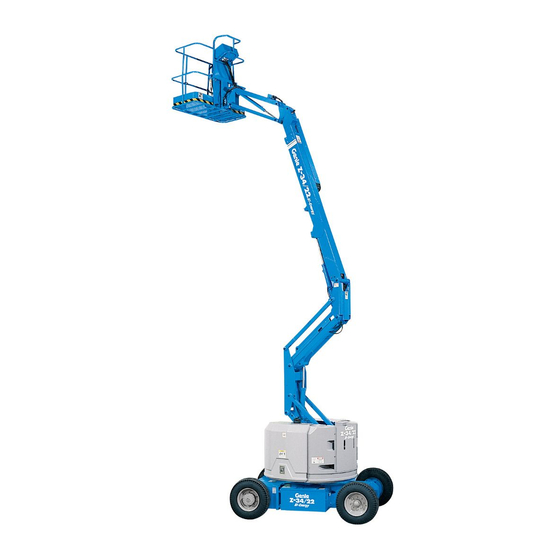

Service and Repair Manual
Z-34/22
Bi-Energy Power
Serial Number Range
from Z3414-9686
This manual includes:
Repair procedures
Fault Codes
Electrical and
Hydraulic Schematics
For detailed maintenance
procedures, refer to the
appropriate Maintenance
Manual for your machine.
Part No. 1268515
Rev A
September 2015

Advertisement

Table of Contents
loading

Related Manuals for Genie Z-34

Summary of Contents for Genie Z-34

  • Page 1 Service and Repair Manual Serial Number Range Z-34/22 from Z3414-9686 This manual includes: Repair procedures Bi-Energy Power Fault Codes Electrical and Hydraulic Schematics For detailed maintenance procedures, refer to the appropriate Maintenance Manual for your machine. Part No. 1268515 Rev A...

  • Page 2: Find A Manual For This Model

    Copyright © 2015 by Terex Corporation 1268515 Rev A, September 2015 First Edition, First Printing Genie is a registered trademark of Terex South Dakota, Inc. in the U.S.A. and many other countries. “Z” is a trademark of Terex South Dakota, Inc.

  • Page 3: Revision History

    Reference Examples: Electronic Version Section – Repair Procedure, 4-2 Click on any content or procedure in the Table of Contents to view Section – Fault Codes, All charts the update. Section – Schematics, Legends and schematics Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 4: Serial Number Legend

    Service and Repair Manual September 2015 Introduction Serial Number Legend 1 Model 2 Model year 3 Sequence number 4 Serial number (stamped on chassis) 5 Serial label Z-34/22 Bi-Energy Part No. 1268515...

  • Page 5: Safety Rules

     You read, understand and obey: • manufacturer's instructions and safety rules • employer's safety rules and worksite regulations • applicable governmental regulations  You have the appropriate tools, lifting equipment and a suitable workshop. Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 6 Be aware of potential crushing hazards such as moving parts, free swinging or unsecured components when lifting or placing loads. Always wear approved steel-toed shoes. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 7: Table Of Contents

    Machine Torque Specifications ................5 Kubota Z482-E Engine Specifications ..............6 Generator Specifications ..................7 Hydraulic Hose and Fitting Torque Specifications ..........8 Torque Procedure ....................9 SAE and Metric Fasteners Torque Charts ............10 Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 8 3-2 Jib Boom Bell Crank ..................23 How to Remove the Jib Boom Bell Crank ............23 3-3 Jib Boom Lift Cylinder ..................23 How to Remove the Jib Boom Lift Cylinder ............ 23 viii Z-34/22 Bi-Energy Part No. 1268515...
  • Page 9 6-2 RPM Adjustment .................... 39 6-3 Engine Drive Pulley ..................39 How to Remove the Engine Drive Pulley ............39 How to Install the Engine Drive Pulley ............40 6-4 Coolant Temperature and Oil Pressure Switches .......... 41 Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 10 9-3 Jib Boom / Platform Rotate Manifold Components........54 9-4 Valve Coils ..................... 55 How to Test a Coil ..................55 Valve Coil Resistance Specification ............... 55 How to Test a Coil Diode ................56 Z-34/22 Bi-Energy Part No. 1268515...
  • Page 11 How to Install the Hub and Bearings ............... 61 12-2 Steer Cylinder ....................61 Non-steer Axle Components ................63 13-1 Drive Motor ....................63 13-2 Drive Hubs....................63 Motor Controller ....................64 14-1 Motor Controller ................... 64 Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 12 LVI / BCI Option Wiring Diagram, from serial number 4800 to 5426 ....104 LVI / BCI Option Wiring Diagram, from serial number 5427 ......105 Engine Wiring Diagram ..................108 Hydraulic Schematic ..................109 Z-34/22 Bi-Energy Part No. 1268515...

  • Page 13: Specifications

    Drive hub oil type: SAE 90 multipurpose hypoid gear oil Operator's Manual. API service classification GL5 Continuous improvement of our products is a Genie policy. Product specifications are subject to change without notice or obligation. Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 14: Hydraulic Specification

    Hydraulic fluids may be incompatible due to the Hydraulic Fluid Specifications differences in base additive Genie specifications require hydraulic oils which are chemistry. When incompatible designed to give maximum protection to hydraulic fluids are mixed, insoluble systems, have the ability to perform over a wide...
  • Page 15 Maximum continuous operating 124°F / 51°C temperature Note: Use of Chevron 5606A hydraulic fluid, or equivalent, is required when ambient temperatures are consistently below 0°F / -17°C unless an oil heating system is used. Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 16: Hydraulic Component Specifications

    110.3 bar Primary boom extend relief valve 1800 psi pressure 124 bar Turntable rotate relief valve 1100 psi pressures 75.8 bar Hydraulic Filters Hydraulic tank return filter 10 micron with 25 psi / 1.7 bar bypass Z-34/22 Bi-Energy Part No. 1268515...

  • Page 17: Machine Torque Specifications

    93 ft-lbs lubricated 126 Nm Drive motors and hubs Drive hub mounting bolts, lubricated 180 ft-lbs 244 Nm Drive motor mounting bolts, lubricated 3/8-16, GR5 23 ft-lbs 31 Nm 7/16-14, GR5 37 ft-lbs 50 Nm Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 18: Kubota Z482-E Engine Specifications

    Oil capacity (including filter) 2.6 quarts Reserve capacity @ 25A rate 125 minutes 2.5 liters Extreme operating temperatures may require the use of alternative engine oils. For oil requirements, refer to the Engine Operator Handbook on your machine. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 19: Generator Specifications

    108-122 Nm Engine pulley retaining bolts 108 in-lbs 12.2 Nm #10 screw 25 in-lbs 2.8 Nm #10 nut 25 in-lbs 2.8 Nm #4 nut 8-10 in-lbs 0.9-1.1 Nm Voltage regulator mounting fasteners 25 in-lbs 2.8 Nm Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 20: Hydraulic Hose And Fitting Torque Specifications

    Your machine is equipped with Parker Seal-Lok™ SAE Dash Size Torque ORFS or 37° JIC fittings and hose ends. Genie specifications require that fittings and hose ends 14 ft-lbs / 19 Nm be torqued to specification when they are removed 23 ft-lbs / 31.2 Nm...

  • Page 21: Torque Procedure

    O-rings. They are not 1 hex nut standard size O-rings. They are available in the 2 reference mark O-ring field service kit (Genie part number 49612). 3 body hex fitting Lubricate the O-ring before installation. Working clockwise on the body hex fitting,...

  • Page 22: Sae And Metric Fasteners Torque Charts

    Service and Repair Manual September 2015 Specifications SAE and M etric F asteners Tor que C harts Z-34/22 Bi-Energy Part No. 1268515...

  • Page 23: Repair Procedures

     Be sure that all necessary tools and parts are available and ready for use.  Use only Genie approved replacement parts.  Read each procedure completely and adhere to the instructions. Attempting shortcuts may produce hazardous conditions.
  • Page 24 Indicates that a specific result is expected after performing a series of steps. Indicates that an incorrect result has occurred after performing a series of steps. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 25: Platform Controls

    Emergency Stop button to the needed on the drive joystick controller. For further on position at both the ground and platform information or assistance, contact the Genie controls. Product Support. Open the platform control box lid and locate the boom function speed controller.
  • Page 26 Start a timer and simultaneously press down the foot switch and move the primary boom toggle switch in the down direction. Note how long it takes to reach 0.65A. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 27: Diodes

    Test Desired result red to black no continuity (infinite Ω) red to white no continuity black to white continuity (zero Ω) Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 28: Toggle Switches

    Connect the leads of an ohmmeter to the switch terminals in the following combinations listed below to check for continuity. Left Center Right SPDT DPDT Note: Single pole double throw (SPDT), Double pole double throw (DPDT) Z-34/22 Bi-Energy Part No. 1268515...

  • Page 29: Platform Components

    Lower the Move the platform level toggle switch up and boom until the platform is resting on the down through two platform leveling cycles to blocks. remove any air that might be in the system. Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 30: Platform Rotator

    Do not apply any lifting pressure. Remove the six mounting bolts from the platform mounting weldment. Remove the center bolt and slide the platform mounting weldment off of the platform rotator. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 31: How To Bleed The Platform Rotator

    Close the bleed screw. Crushing hazard. Keep clear of the platform during rotation. Clean up any hydraulic oil that may have spilled. Rotate the platform fully in both directions and inspect the bleed screws for leaks. Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 32: Platform Overload System

    Note: The platform will need to be moved up and down and allowed to settle between adjustments. Z-34/22 Bi-Energy Part No. 1268515...
  • Page 33 Result: The alarm should sound. The platform overload indicator light should be flashing at both the ground and platform controls. Note: There may be an approximate 2 second delay before the overload indicator light turns on and the alarm sounds. Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 34: Jib Boom Components

    Crushing hazard. The jib boom lift cylinder may become unbalanced and fall when it is removed from the machine if it is not properly supported by the overhead crane. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 35: Jib Boom Bell Crank

    Do not Crushing hazard. The jib boom remove the pin. bellcrank may become unbalanced and fall if it is not properly supported when it is removed from the machine. Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 36 Crushing hazard. The jib boom lift cylinder may become unbalanced and fall when it is removed from the machine if it is not properly supported by the overhead crane. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 37: Primary Boom Components

    Note: Always maintain squareness between the outer and inner boom tubes. Note: A 7 link repair section of cable track is available through the Genie Service Parts How to R emove the Primary Boom How to Remove the Primary Department.
  • Page 38 Do not allow oil to squirt or spray. 16 Remove the pin retaining fastener from the master cylinder rod-end pivot pin. Use a soft metal drift to remove the pin. Pull the cylinder back and secure it from moving. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 39: How To Disassemble The Primary Boom

    Crushing hazard. If the overhead crane is not properly attached, the boom could become unbalanced and fall when it is removed from the machine. Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 40: Primary Boom Lift Cylinder

    Attach a lifting strap from an overhead crane to the primary boom for support. Do not apply any lifting pressure. Place a block of wood across the upper secondary boom to support the cylinder when the rod-end pivot pin is removed. Z-34/22 Bi-Energy Part No. 1268515...
  • Page 41 19 Carefully remove the cylinder from the 12 Swing the compression arm up out of the way machine. and secure it from moving. Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 42: Primary Boom Extension Cylinder

    Remove the external snap rings from the extension cylinder rod-end pivot pins. Use a soft metal drift to remove the pins. Remove the rear turntable cover. Raise the secondary boom until the master cylinder rod-end pivot pin is accessible. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 43: Platform Leveling Master Cylinder

    Specifications, Hydraulic Hose and Fitting Torque Specifications. Note: Before cylinder removal is considered, bleed the cylinder to be sure that there is no air in the closed loop. Refer to Repair Procedure, How to Bleed the Slave Cylinder. Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 44 Tie a strap around the lug on the rod end of the master cylinder and secure the strap to the primary boom. Note: The strap will be used to lower the cylinder out of the upper pivot. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 45: Secondary Boom Components

    Service and Repair Manual Secondary Boom Components Second ar y Boo m Comp onent s Secondary Boom components lower secondary boom upper pivot turntable pivot upper compression arm lower compression arm mid-pivot upper secondary boom compression link Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 46: Secondary Boom

    Do not disconnect the wiring. 15 Attach a strap from an overhead crane to the pivot end of the primary boom. Z-34/22 Bi-Energy Part No. 1268515...
  • Page 47 Use a soft metal drift to remove the pin. 31 Attach the strap from an overhead crane to the upper secondary boom. Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 48 Bodily injury hazard. Spraying hydraulic oil can penetrate and burn skin. Loosen hydraulic connections very slowly to allow the oil pressure to dissipate gradually. Do not allow oil to squirt or spray. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 49: Secondary Boom Lift Cylinders

    Raise the primary boom to full height. Do not extend it. Attach the strap from an overhead crane to the lug on the rod end of the secondary boom lift cylinder. Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 50 Crushing hazard. The secondary boom lift cylinder could become unbalanced and fall when removed from the machine if not properly supported by the overhead crane. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 51: Engines

    Kubota Z482-E. How to Remove the Engine Drive Pulley Kubota Z482-E3B Operator's Manual Genie part number 139420 Remove the engine pivot plate latch retainer. 6-2 R PM Adj ustm ent Open the engine pivot plate latch and swing...

  • Page 52: How To Install The Engine Drive Pulley

    2 shaft 3 set screw 4 engine drive pulley 5 engine drive pulley bolt 6 shaft bushing 7 woodruff key 1 pulley shaft 2 pulley bushing 3 engine flywheel 4 straightedge 5 generator pulley 6 generator Z-34/22 Bi-Energy Part No. 1268515...

  • Page 53: Coolant Temperature And Oil Pressure Switches

    2 shaft 3 set screw Component damage hazard.Do 4 engine drive pulley not crank the engine with the low 5 engine drive pulley bolt oil pressure light on. 6 shaft bushing 7 woodruff key Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 54: Generator

    Loosen the set screw on the pulley bushing, then slide the pulley bushing off of the generator shaft. 1 gap 2 shaft 3 set screw 4 engine drive pulley 5 engine drive pulley bolt 6 shaft bushing 7 woodruff key Z-34/22 Bi-Energy Part No. 1268515...

  • Page 55: Generator Belts

    Loosen the tension adjustment bolt on the 1 engine pulley generator. 2 generator belts Pull the generator away from the machine and 3 generator pulley tighten the adjustment bolt. Belt deflection, 0.25 inch maximum allowable 6.5 mm Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 56: Generator Voltage Regulator

    Remove all rings, Note: The maximum range of motion of the watches and other jewelry. potentiometer on the voltage regulator is 280° and the maximum allowed torque is 5 oz-in / 0.035 Nm. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 57: How To Replace The Voltage Regulator

    11 Remove the nuts on those 3 wires from the negative rectifier assembly, then remove the wires. Note: Do not remove the spacers from the underneath the wires on the negative rectifier assembly. Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 58 How to Adjust the Generator Belts. 22 Adjust the voltage regulator. See How to Adjust the Voltage Regulator. Component damage hazard. The voltage regulator and/or generator may become damaged if the voltage regulator is not properly adjusted after replacement Z-34/22 Bi-Energy Part No. 1268515...

  • Page 59: Hydraulic Pumps

    Result: The pressure fails to reach 2800 psi /193 bar, the pump is faulty and will need to be serviced or replaced. Remove the pressure gauge and install the hydraulic hose. How to R emove the Auxiliary Pum p Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 60: Function Pump

    Hydraulic pressure in excess of 3000 psi / 206 bar may result in severe component damage. Remove the pressure gauge and install the hydraulic hose. How to R emovet the F unc tion Pum p Z-34/22 Bi-Energy Part No. 1268515...
  • Page 61 September 2015 Service and Repair Manual This page intentionally left blank. Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 62: Manifolds

    1.8 gpm / 6.8 L/min Flow regulator valve, Jib boom/platform rotate 10-12 ft-lbs / 14-16 Nm 0.8 gpm / 3 L/min circuit 3 position 4 way spool valve Turntable rotate left/right 10-12 ft-lbs / 14-16 Nm Z-34/22 Bi-Energy Part No. 1268515...
  • Page 63 September 2015 Service and Repair Manual Manifolds Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 64: Valve Adjustments - Function Manifold

    Repeat steps 2 and 3 to confirm the relief Repeat steps 2 through 4 and recheck relief valve pressure setting. valve pressure. Remove the pressure gauge. Remove the pressure gauge. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 65: How To Adjust The Secondary Boom Down Relief Valve

    Repeat steps 2 through 4 and recheck relief specified. valve pressure. Repeat steps 2 and 3 to confirm the relief Remove the pressure gauge. valve pressure setting. Remove the pressure gauge. Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 66: Jib Boom / Platform Rotate Manifold Components

    Jib boom circuit 25-30 ft-lbs / 34-41 Nm Solenoid valve, 2 position 3 way Platform rotate circuit 25-30 ft-lbs / 34-41 Nm Flow regulator, 0.3 gpm / 1.2 L/min Platform rotate circuit 25-30 ft-lbs / 34-41 Nm Z-34/22 Bi-Energy Part No. 1268515...

  • Page 67: Valve Coils

    Result: The resistance should be within specification, plus or minus 30%. Result: If the resistance is not within specification, plus or minus 30%, replace the coil. Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 68: How To Test A Coil Diode

    Note: The multimeter, when set to read DC current, Resistor, 10Ω should be capable of reading up to 800 mA. Genie part number 27287 Connect the negative lead to the other Note: The battery should read 9V DC or more terminal on the coil.

  • Page 69: Fuel And Hydraulic Tanks

    Component damage hazard. Do condition. not overtighten the fuel tank mounting fasteners. Note: Clean the fuel tank and inspect for cracks and other damage before installing. Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 70 Remove the hydraulic tank mounting fasteners. Remove the hydraulic tank from the machine. Crushing hazard. The hydraulic tank could become unbalanced and fall if not properly supported when removed from the machine. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 71: Turntable Rotation Components

    Loosen hydraulic connections very slowly to allow the oil pressure to dissipate gradually. Do not allow oil to squirt or spray. Remove the turntable rotation motor mounting bolts. Remove the motor from the machine. Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 72: Axle Components

    Block the non-steer wheels, and then center a lifting jack under the steering axle. Raise the machine 6 inches / 15 cm and place blocks under the drive chassis for support. Remove the lug nuts, then the tire and wheel assembly. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 73: How To Remove The Hub And Bearings

    Note: Always use a new cotter pin when installing a castle nut. 11 Install the dust cap, then the tire and wheel assembly. Torque the wheel lug nuts to specification. Refer to Specifications, Machine Torque Specifications. 12- 2 Steer Cyli nder Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 74: Steer Cylinder

    Do not allow oil to squirt or spray. Remove the pin retaining fastener, then remove the clevis pin from each end of the steer cylinder. Remove the steer cylinder. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 75: Non-Steer Axle Components

    Crushing hazard. The drive hub may become unbalanced and fall when the mounting fasteners are removed if it is not properly supported and secured to the lifting jack. Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 76: Motor Controller

    There are no adjustments needed on Forward Bias: the drive joystick controller. For further information Test Desired result or assistance, consult the Genie Industries Service Positive Lead Negative Lead Department. 0.4 to 0.45 0.4 to 0.45 How to Test the Motor Controller 0.45 to 0.5...

  • Page 77: Fault Codes

    • All external AC power supply disconnected from the machine • Boom in the stowed position • Turntable secured with the turntable rotation lock • Welder disconnected from the machine (if equipped with the weld cable to platform option) Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 78 Fault Codes Fault Codes Note: Additional troubleshooting of the fault codes may by accomplished by using the hand-held pendant motor controller programmer (Genie part number 56303). For authorized service personnel only: Note: When using the hand-held pendant motor controller programmer, the M1 MAX SPEED needs to be set to 33.

  • Page 79: Fault Code Charts

    OR test the motor controller. See Repair Section. ARM SENSOR Machine will not drive. Defective motor Replace the motor controller. controller. FLD SENSOR Machine will not drive. Defective motor Replace the motor controller. controller. Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 80 Possible Causes Solution Diagnostic Display THROTTLE FAULT 1 Machine will not drive. Open in wht/red wire Consult Genie Product #32 at pin 14 or Support. red/wht wire #29 at pin 16 on the motor controller going from drive joystick to pins...
  • Page 81 Programmer Condition Possible Causes Solution Diagnostic Display MISSING Machine will not drive. Motor controller does Consult Genie Product CONTACTOR not detect the main Support. contactor PR1 or brake release relay CR5. MAIN CONT DNC Machine will not drive. Main contactor PR1 or...
  • Page 82 Service and Repair Manual September 2015 This page intentionally left blank. Z-34/22 Bi-Energy Part No. 1268515...

  • Page 83: Schematics

     Read, understand and obey the safety rules and operating instructions in the appropriate operator's manual on your machine.  Be sure that all necessary tools and test equipment are available and ready for use. Part No. 1268515 Z-34/22 Bi-Energy...

  • Page 84: Electrical Symbol Legend

    Gauge sending unit open normally closed Oil temperature switch Coolant temperature Oil pressure switch Control relay contact Diode starting aid, glow normally open switch - normally open normally closed normally open plug or flame ignitor Z-34/22 Bi-Energy Part No. 1268515...

  • Page 85: Hydraulic Symbols Legend

    3 way shuttle valve valve Solenoid operated Solenoid operated Counterbalance valve with 3 position, 4 way 2 position, 2 way solenoid 3 position, 4 way directional pressure and pilot ratio proportional directional valve valve valve Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 86 Service and Repair Manual September 2015 This page intentionally left blank. Z-34/22 Bi-Energy Part No. 1268515...
  • Page 87 September 2015 Service and Repair Manual Electrical Schematic - from serial number 4800 to 5426 (ANSI / CSA)

  • Page 88: Electrical Schematic - From Serial Number 4800 To 5426 (Ansi / Csa)

    Service and Repair Manual September 2015 Elec trical Schem atic - from serial number 4800 to 5426 (AN SI / C SA) Electrical Schematic - from serial number 4800 to 5426 (ANSI / CSA) Z-34/22 Bi-Energy Part No. 1268515...
  • Page 89 September 2015 Service and Repair Manual Electrical Schematic - from serial number 4800 to 5426 (ANSI / CSA) Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 90 Service and Repair Manual September 2015 Electrical Schematic - from serial number 4800 to 5426 (ANSI / CSA)
  • Page 91 September 2015 Service and Repair Manual Electrical Schematic - from serial number 4800 to 5426 (CE)

  • Page 92: Electrical Schematic - From Serial Number 4800 To 5426 (Ce)

    Service and Repair Manual September 2015 Elec trical Schem atic - from serial number 4800 to 5426 (CE) Electrical Schematic - from serial number 4800 to 5426 (CE) Z-34/22 Bi-Energy Part No. 1268515...
  • Page 93 September 2015 Service and Repair Manual Electrical Schematic - from serial number 4800 to 5426 (CE) Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 94 Service and Repair Manual September 2015 Electrical Schematic - from serial number 4800 to 5426 (CE)
  • Page 95 September 2015 Service and Repair Manual Electrical Schematic - from serial number 5427 (ANSI / CSA)

  • Page 96: Electrical Schematic - From Serial Number 5427 (Ansi / Csa)

    Service and Repair Manual September 2015 Elec trical Schem atic - from serial number 5427 (AN SI / C SA) Electrical Schematic - from serial number 5427 (ANSI / CSA) Z-34/22 Bi-Energy Part No. 1268515...
  • Page 97 September 2015 Service and Repair Manual Electrical Schematic - from serial number 5427 (ANSI / CSA) Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 98 Service and Repair Manual September 2015 Electrical Schematic - from serial number 5427 (ANSI / CSA)
  • Page 99 September 2015 Service and Repair Manual Electrical Schematic - from serial number 5427 (CE)

  • Page 100: Electrical Schematic - From Serial Number 5427 (Ce)

    Service and Repair Manual September 2015 Elec trical Schem atic - from serial number 5427 (CE) Electrical Schematic - from serial number 5427 (CE) Z-34/22 Bi-Energy Part No. 1268515...
  • Page 101 September 2015 Service and Repair Manual Electrical Schematic - from serial number 5427 (CE) Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 102 Service and Repair Manual September 2015 Electrical Schematic - from serial number 5427 (CE)
  • Page 103 September 2015 Service and Repair Manual Ground Control Box Switch Panel Wiring Diagram...

  • Page 104: Ground Control Box Switch Panel Wiring Diagram

    Service and Repair Manual September 2015 Ground C ontrol Box Switch Panel Wiring Di agr am Ground Control Box Switch Panel Wiring Diagram Z-34/22 Bi-Energy Part No. 1268515...

  • Page 105: Ground Control Box Terminal Strip Wiring Diagram

    September 2015 Service and Repair Manual Ground C ontrol Box T erminal Strip Wiring Di agr am Ground Control Box Terminal Strip Wiring Diagram Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 106 Service and Repair Manual September 2015 Ground Control Box Terminal Strip Wiring Diagram...
  • Page 107 September 2015 Service and Repair Manual Platform Control Box Wiring Diagram...

  • Page 108: Platform Control Box Wiring Diagram

    Service and Repair Manual September 2015 Platform C ontrol Box Wiring Di agr am Platform Control Box Wiring Diagram Z-34/22 Bi-Energy Part No. 1268515...

  • Page 109: Power Cable Wiring Diagram

    September 2015 Service and Repair Manual Pow er C abl e Wiring Diagram Power Cable Wiring Diagram Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 110 Service and Repair Manual September 2015 Power Cable Wiring Diagram...
  • Page 111 September 2015 Service and Repair Manual Drive Contactor Panel Wiring Diagram...

  • Page 112: Drive Contactor Panel Wiring Diagram

    Service and Repair Manual September 2015 Drive Contactor Panel Wiring Diagram Drive Contactor Panel Wiring Diagram Z-34/22 Bi-Energy Part No. 1268515...

  • Page 113: Manifold And Limit Switch Wiring Diagram

    September 2015 Service and Repair Manual Manifold and Limit Swi tch Wiring Diagram Manifold and Limit Switch Wiring Diagram Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 114 Service and Repair Manual September 2015 Manifold and Limit Switch Wiring Diagram...
  • Page 115 September 2015 Service and Repair Manual LVI / BCI Option Wiring Diagram, from serial number 4800 to 5426...

  • Page 116: Lvi / Bci Option Wiring Diagram, From Serial Number 4800 To 5426

    Service and Repair Manual September 2015 LVI / BCI Opti on Wiring Di agram, from seri al num ber 4800 to 5426 LVI / BCI Option Wiring Diagram, from serial number 4800 to 5426 Z-34/22 Bi-Energy Part No. 1268515...

  • Page 117: Lvi / Bci Option Wiring Diagram, From Serial Number 5427

    September 2015 Service and Repair Manual LVI / BCI Opti on Wiring Di agram, from seri al num ber 5427 LVI / BCI Option Wiring Diagram, from serial number 5427 Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 118 Service and Repair Manual September 2015 LVI / BCI Option Wiring Diagram, from serial number 5427...
  • Page 119 September 2015 Service and Repair Manual Engine Wiring Diagram...

  • Page 120: Engine Wiring Diagram

    Service and Repair Manual September 2015 Engine Wiring Di agr am Engine Wiring Diagram Z-34/22 Bi-Energy Part No. 1268515...

  • Page 121: Hydraulic Schematic

    September 2015 Service and Repair Manual Hydraulic Schem atic Hydraulic Schematic Part No. 1268515 Z-34/22 Bi-Energy...
  • Page 122 Service and Repair Manual September 2015 Hydraulic Schematic Z-34/22 Bi-Energy Part No. 1268515 Servic e and R epair M anual Sept emb er 2015...

This manual is also suitable for:

Z-22

Table of Contents
