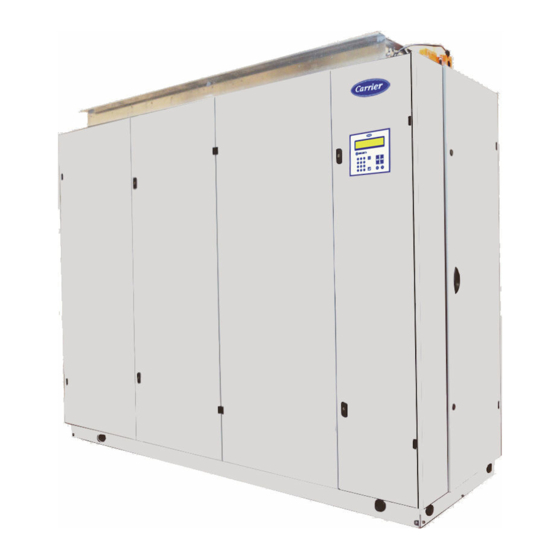

Carrier 50CO Series Installation, Operation And Maintenance Instructions
Precision cabinet
Hide thumbs
Also See for 50CO Series:
Related Manuals for Carrier 50CO Series
Summary of Contents for Carrier 50CO Series
- Page 1 I N S TA L L AT I O N , O P E R AT I O N A N D M A I N T E N A N C E I N S T R U C T I O N S Precision cabinet 50CO Rated cooling capacity 40 - 130 kW...
-
Page 2: Table Of Contents
CONTENTS 1 - INTRODUCTION ..................................3 2 - RECEIPT OF GOODS .................................. 3 2.1 - Checking the equipment................................3 2.2 - Identifying the equipment ................................3 2.3 - Documents ....................................4 3 - SAFETY INSTRUCTIONS ................................4 4 - WARRANTY ....................................4 5 - STORAGE OF EQUIPMENT ............................... -
Page 3: Introduction
In the event of missing items, the customer must provide the exact number of parcels delivered. Any damaged or missing items must be specified on the delivery note in the presence of the driver before signing the delivery note. These comments must be confirmed to the carrier by registered letter within 3 business days. The comments "conditional" and "pending unwrapping" shall have no value. -
Page 4: Documents
2 - RECEIPT OF GOODS 2.3 - Documents The following documents should be inside the unit: Instruction manual. Control manual. Unit wiring diagram Key to the wiring diagram. Dimensional drawing with connection diagram Additional diagrams depending on options. 3 - SAFETY INSTRUCTIONS Appropriate PPE (personal protection equipment) is required for any servicing operations on the units... -
Page 5: Weights And Dimensions
6 - HANDLING Handling with a spreader beam and slings 1100 To be removed while handling, then replaced once the unit is in place If the unit is lifted using a spreader beam and slings: - Protect the panels. - First remove all the caps covering the holes for the tubing on the lower section of the equipment. - Use tubing (Ø max. = 40mm) with a sufficient lifting capacity (see weight table). -
Page 6: Location & Installation
8 - LOCATION & INSTALLATION You must leave space for access to the front and to the right of the unit for maintenance and installation operations. For free air intake, there must be at least 500 mm above the unit. 500 mm 1000 mm 1000 mm... -
Page 7: Location And Marking Of Components
9 - LOCATION AND MARKING OF COMPONENTS W40 to W100 Under Assembly Filters Electrics Box Cooling coil Cooling coil Control valve (Heating coil) Electric heater (option) Heating coil (option) Additional cabinet Condensate drain pump (option) F M A a c c e s s Humidifier (option) hatch Condensate drain... -
Page 8: Connections
9 - LOCATION AND MARKING OF COMPONENTS W115 Under Assembly Filters Electrics Box Electric heater (option) Cooling coil Control valve A c c e s s (cooling coil) hatches Humidifier (Option) 10 - CONNECTIONS When following these steps, please consult the dimensional drawing and connection diagram as well as the wiring diagram found inside the unit. -
Page 9: Electrical Connections
10 - CONNECTIONS Connection diameters: W100 W115 Inlet G 1"1/4 (M) G 1"1/4 (M) G 1"1/2 (M) G 1"1/2 (M) G 1''1/2 (M) Cooling coil Outlet G 1"1/4 (F) G 1"1/4 (F) G 1"1/2 (F) G 1"1/2 (M) G 1''1/2 (F) W100 Inlet G 3/4"... - Page 10 10 - CONNECTIONS Electrical specifications: Three-phase 400 V power supply + Earth - 50 Hz Table of currents W 40 W 53 W 78 W 100 W 115 Voltage (V) Fan motor assembly Power (kW) Current (A) 10,8 14,7 Voltage (V) Control circuit (transformer) Current (A) Voltage (V)
- Page 11 10 - CONNECTIONS Then follow the routing shown in the figures below. Cable routing for management W115 model (CMS) or room sensors. Power supply cable route When wiring via management systems (CMS) or master/slave control, as well as room sensors, go through the top of the cabinet and the top section of the box, through the grommets shown in the box views.
-
Page 12: Technical Characteristics
11 - TECHNICAL CHARACTERISTICS 11.1 - Basic components 11.1.1 - Regulation The units are equipped with a regulation PLC: CARRIER CCU Controller CARRIER CCU Controller This is used to manage the unit and ensure it runs smoothly. It is built into the display. - Page 13 11 - TECHNICAL SPECIFICATIONS FMA specifications: W100 W115 Number Max. power (kW) Max. current (A) 10,8 10,8 14,7 Nominal flow rates of units: W100 W115 Nominal flow rate (m³/h) 10000 13300 18800 24500 27000 Max. flow rate (m³/h) 13300 13300 20500 27000 27500 Operating pressures downstream of the filters: W100 W115 Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum...
- Page 14 11 - TECHNICAL SPECIFICATIONS Units W 40 W 53 W 78 W 100 W 115 Air flow (m 13 300 13 300 20 500 27 000 27 500 * Maximum operating pressure with G4 filtration / COARSE 65% * Maximum operating pressure with F7 filtration / ePM1: 55% Total/sensible cooling capacity (kW) 46 / 46 51/ 51 78 / 78 100 / 100 124 / 124 Water flow rate (m...
-
Page 15: Optional Components
11 - TECHNICAL SPECIFICATIONS Filter fouling is measured by a pressure sensor located in the electrics box. It is set to 1.5 times the value for the filter when clean (pressure ports upstream and downstream of the filter). 11.1.5 - Standard control elements: (Factory cables) - An intake temperature sensor. - A differential pressure sensor: attached to the electrics box, this allows the difference in pressure upstream and downstream of the filter to be measured, so as to determine whether the filter is fouled. - A water leak sensor: this is found at the end of a wound cable located at the bottom of the unit so that it is long enough to extend downwards into a raised floor, if required, and to be positioned in the area to be monitored. It can be added on request. - Page 16 11 - TECHNICAL SPECIFICATIONS 11.2.2 - Electric heater Operates in two on/off stages or with TRIAC (modulating). The latter allows the power of the electric heater to be varied to ensure it is as close as possible to the required heating capacity. The connection is carried out in the factory. The electric heater is equipped with two safety thermostats, one with automatic reset and the other with manual reset.
- Page 17 20 m (l/h) 30 m (l/h) The pressure drops defined in this table are calculated using a 10 mm diameter flexible connection Connect a flexible connection with an int. Ø 10 mm (3/8") (not supplied by CARRIER) to the pump discharge. For OVER models (3 and 5), if using a spreader beam and slings, the PVC tube will not be directly connected to the pump, for handling reasons. It must therefore be angled in the right direction and fixed to the clamp, as shown below. Clamp Elbow PVC tube...
- Page 18 11 - TECHNICAL SPECIFICATIONS 11.2.5 - Subbases: Support subbase: Adjustable feet For supply air through a raised floor. The height can be adjusted from 250 mm to a maximum of 610 mm. Adjustment screws are provided with the base for adjustment on site. Do not forget to stick the adhesive seal provided to the aluminium frame of the base to ensure tightness. Cased subbase with grille: Grommet for power supply cable connection...
- Page 19 11 - TECHNICAL SPECIFICATIONS 11.2.6 - Plenums: Supply air / intake plenum (H450 mm): Grommet for control cable routing or for master/slave management, as well as room sensor cables. Double-deflection grids Proposed when air is to be distributed directly into a space. It is mounted on top of the unit and features double-deflection grids (one on each side and on the front) to allow the direction of the air stream to be adjusted manually. The plenum may also be used mounted at the bottom (UNDER) to carry air directly from a space back to the air handling system.
- Page 20 11 - TECHNICAL SPECIFICATIONS This accessory should not be installed in corrosive environments (saline environments) or explosive environments (ATEX area). Composition: This is a mixing box made up of two dampers. (one fresh air side and the other on the room's return air side). Two combined temperature and humidity sensors are also provided at the back of the unit.
- Page 21 11 - TECHNICAL SPECIFICATIONS 11.2.8 - Optional control elements - Raised floor management This option helps maintain a constant pressure in the suspended ceiling by adapting the fan speed. • Characteristics of the CP112 AN pressure sensor Composition: This option comprises a sensor Dimensions of the housing (with mounting support) Connectors...
- Page 22 11 - TECHNICAL SPECIFICATIONS Configuration: To configure the sensor, switch it off and enter the desired settings by moving the switches as described below. Once the settings have been configured, switch the sensor back on. To configure the sensor, undo the 4 screws on the housing and open it. The switches allowing for various settings are then accessible. Measurement scope settings - left-hand switch Switch Measurement scope settings...
-
Page 23: Commissioning
• Check the power supply voltage and heat protection rating in accordance with the currents for the various components. • Check the siphon height. • Vent the air out of the coils via the air bleed valves. • Check the tightness of the circuits; retighten the valve if necessary. • To configure the setpoints, please refer to the control manual. "CARRIER CCU Controller" • Depending on the solution chosen, the air flow may be. • adjusted based on the difference with the setpoint. • constant. -
Page 24: Maintenance
13 - MAINTENANCE The doors may be removed to facilitate access to all components (see removal diagram below) Open the doors Pull out the pin and remove the hinge (close-up B) Lift off the door (close-up C) -
Page 25: Filters
13 - MAINTENANCE 13.1 - Filters Check the filters frequently when commissioning the unit. The rate at which they will clog will depend on how well the air circuits were cleaned. Frequency of servicing The filter life depends essentially on the amount of dust in the air and the efficiency of the filtration system. The filtration quality cannot be maintained if the filter medium has been damaged during maintenance. We recommend that the filters be replaced once every two years, even in case of low to moderate use. Replacing the filter elements When performing maintenance, it is important to avoid releasing and spreading the dust that has accumulated in the filter. Turn off the unit. Access the filters by opening the doors on the front. For filters for sizes W40 to W100 Replace the used filters by new filters. Take care to note the direction of air flow indicated on the new filters. Always make sure that the filter elements are properly positioned before compressing them or turning the unit back on. Runner Thumbwheel - Unscrew the thumbwheel to free the runner. - Remove the runner to take the filters out. -
Page 26: Cooling Coil
13 - MAINTENANCE For filters for sizes W115 - - Unscrew the clamps on the bottom part of the filter (close-up A) - Release the filter by pulling up the tab on the top part of the filter (close-up B) Replace the used filters by new filters. Take care to note the direction of air flow indicated on the new filters. Always make sure that the filter elements are properly positioned before compressing them or switching the unit back on Detail B Detail A 13.2 - Cooling coil Frequency of servicing As the cooling coil is protected by a filter, its air circuits require very little maintenance Always cut the power supply to the unit before any cleaning operations. 13.3 - Electric heater Frequency of servicing The electric heater requires very little maintenance. -
Page 27: Humidifier
13 - MAINTENANCE Cleaning procedure: Remove the filters as instructed above, To avoid damaging the blower nozzle, make sure that it is not too close to the finned surface. 13.4 - Humidifier Servicing Clean the humidifier once a year and replace its tank. Cleaning or replacing the steam tank This operation is necessary when the deposits that form on the active surface of the electrodes prevent the correct flow of current (alarms E08, E06). To remove the tank: Completely drain the tank using the manual drain program governed by the controller. (See extract from the controller manual) Cut the power to the unit by turning it off at the switch or removing the fuses on the line. -
Page 28: Fans
13 - MAINTENANCE 13.5 - Fans Sizes W40 to W100 Fitting UNDER FMA access hatches (A) - Remove the screws on the fan access hatches and remove the hatches. (Figure A) Quick connectors (B) - Disconnect the quick connectors (B) for each FMA - Slide shims/supports under the FMAs to support them. - Page 29 13 - MAINTENANCE Fitting OVER - Remove the screws on the fan access hatches and remove the hatches (A) Screw Quick-release connector - Disconnect the quick-release connectors (B) from each FMA. - Then unscrew the 4 screws per FMA situated at the arches. - When refitting the FMA(s), follow the steps in reverse order and ensure that the FMA screws are sufficiently tightened.
-
Page 30: Electrics Box
13 - MAINTENANCE Size W115 - Fan access: remove the 6 screws from the fan access hatch (B) - Removing the lateral panels from the fans (close-up A): - Remove the 4 screws (A) from the uprights then remove the uprights - Remove the screws from the fan removal hatch (C), - Remove the fan attachment screws (D). -
Page 31: Service Intervals
Mechanical inspection: tubes, fastenings, etc. Electrical connection tightness check Clean the coil Check the control Check the filters Check the sealing This document is not legally binding. As part of its policy for continual product improvement, CARRIER reserves the right to make any technical modification it considers necessary without prior notice. - Page 32 To check the ongoing validity of the certificate: www.eurovent-certification.com Order No.: EN7438383-01, 01.2019. Supersedes order No.: EN7438383-00, 03.2015. Manufactured by: Carrier SCS, Montluel, France. Manufacturer reserves the right to change any product specifications without notice. Printed in the European Union.
